Introduction
Upstream oil and gas sites run continuously — producing around the clock, often in remote locations, with no one on-site to catch the leak that started at 2 a.m. or the compressor running hot on a random Tuesday. That gap between what's happening at the wellhead and what operators actually know is where production losses mount, safety incidents occur, and regulatory exposure grows unchecked.
The financial stakes are real. Basin-scale measurement work by the Appalachian Methane Initiative, whose science is led by the Energy Emissions Modeling and Data Lab at The University of Texas at Austin, put average production-facility methane intensity in the Appalachian Basin at 0.064% across roughly 17,000 surveyed site measurements. The losses that do occur concentrate in a small and shifting subset of sites — which is precisely why finding that subset quickly separates an efficient monitoring program from an expensive one. In response, EPA's finalized methane rules under 40 CFR Part 60 Subpart OOOOb are pushing operators from periodic inspection snapshots toward measurement-based, continuous monitoring. Many operators struggle to bridge that shift with their current field infrastructure.
This guide covers what effective well site monitoring looks like in practice — the monitoring tiers available to upstream operators, what a system must actually detect to be useful, frequency guidelines calibrated to site risk, and how to move from reactive, route-based field management to autonomous, exception-driven operations.
Key Takeaways
- Mid-sized to large operators spend $1M–$5M+ annually on route-based pumper visits — continuous monitoring can reduce the frequency of routine trips by supporting autonomous oversight and exception-based dispatch
- Effective monitoring spans four domains: production performance, fugitive emissions, equipment integrity, and regulatory compliance
- Broader detection comes from combining video, LWIR optical gas imaging, and acoustic abnormal-sound detection — no single-point technology covers all three
- EPA 40 CFR Part 60 Subpart OOOOb and OGMP 2.0 are accelerating the shift from periodic leak detection and repair (LDAR) to continuous, measurement-based monitoring
- Operators who act only on validated anomalies reduce both false-alarm fatigue and unnecessary field exposure
Why Well Site Monitoring Is Critical for Upstream Operators
Most upstream sites are unmanned. A pump jack runs, a tank fills, a valve cycles — and unless something flags it, no one knows about a problem until the next scheduled visit. That's the core operational gap that monitoring exists to close.
The Cost of Route-Based Operations
Traditional pumper-route programs send field personnel to each site on a fixed schedule — weekly, bi-weekly, or monthly — regardless of site conditions. For mid-sized to large operators, that adds up to $1M–$5M+ annually in labor, vehicle costs, and unproductive travel. The visits happen whether or not anything requires attention.
The safety dimension compounds the financial one. According to OSHA, highway vehicle crashes cause roughly 4 in 10 oil and gas extraction worker fatalities — and routine pumper routes are a primary source of that road exposure.
The Regulatory Stakes Are Escalating

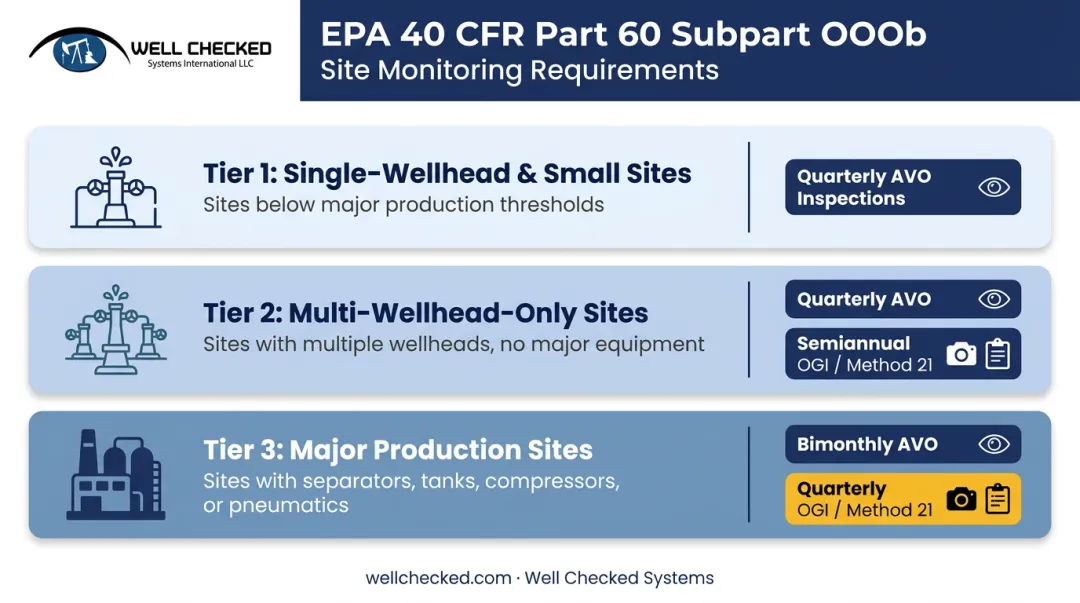

EPA's 2024 final rule under 40 CFR Part 60 Subpart OOOOb (effective May 7, 2024) set tiered monitoring requirements based on site type:
- Single-wellhead/small sites: Quarterly audio, visual, olfactory (AVO) inspections
- Multi-wellhead-only sites: Quarterly AVO plus semiannual optical gas imaging (OGI) or Method 21 instrument surveys
- Major-production sites: Bimonthly AVO plus quarterly OGI or Method 21 surveys
State rules layer on additional obligations beyond the federal floor. New Mexico's 20.2.50 NMAC, for example, requires weekly AVO for facilities above 10 bbl oil/day or 60,000 scf gas/day — and weekly AVO for any site within 1,000 feet of an occupied area, regardless of production volume.
The Methane Loss Equation
Those inspection gaps carry a direct cost beyond regulatory exposure. EPA rules require a first repair attempt within 15 days of an AVO-detected leak — a clock that only starts ticking if someone finds the leak in the first place.
Sites operating on quarterly inspection schedules can sustain leaks for up to three months before detection. That's three months of lost product value, plus fine exposure that continuous monitoring would have triggered a response to within hours.
Types of Well Site Monitoring
Monitoring approaches differ in frequency, detection capability, cost, and regulatory defensibility. Most operators layer multiple methods across their portfolio rather than relying on any single approach.
Traditional Route-Based / Periodic Monitoring
The legacy model: a technician physically visits each site on a scheduled cadence — typically weekly to monthly — recording production readings, checking equipment, and flagging visible issues.
Key limitations:
- Each visit captures only a point-in-time snapshot — anomalies that develop and resolve between visits go unrecorded
- Labor, vehicle, and travel costs scale linearly with site count
- No detection capability between visits — a leak starting the day after a visit can run for weeks
- Field personnel accumulate traffic exposure on every route regardless of whether conditions warrant a visit
SCADA & Remote Telemetry Monitoring
SCADA (Supervisory Control and Data Acquisition) systems relay pressure, flow, temperature, and valve-position data from wellheads to a central control room, providing remote visibility into process variables without a physical visit. For production operations, this is a meaningful improvement over route-only monitoring.
The core limitation: SCADA monitors what its instruments report, not what is actually happening on-site. Without an optical, acoustic, or visual surveillance layer, critical conditions go undetected:
- A methane plume forming at a flange fitting three feet from a pressure sensor registers nothing
- Abnormal vibration and early-stage mechanical issues don't appear on instrumented process points
- Any failure mode that doesn't move a monitored variable stays invisible until it escalates
Continuous Autonomous Multi-Sensor Monitoring
The current leading tier: always-on platforms that combine high-resolution video analytics, Long-Wave Infrared Optical Gas Imaging (LWIR OGI) for methane detection, and acoustic abnormal-sound detection — providing 24/7 site awareness without requiring personnel on-site.

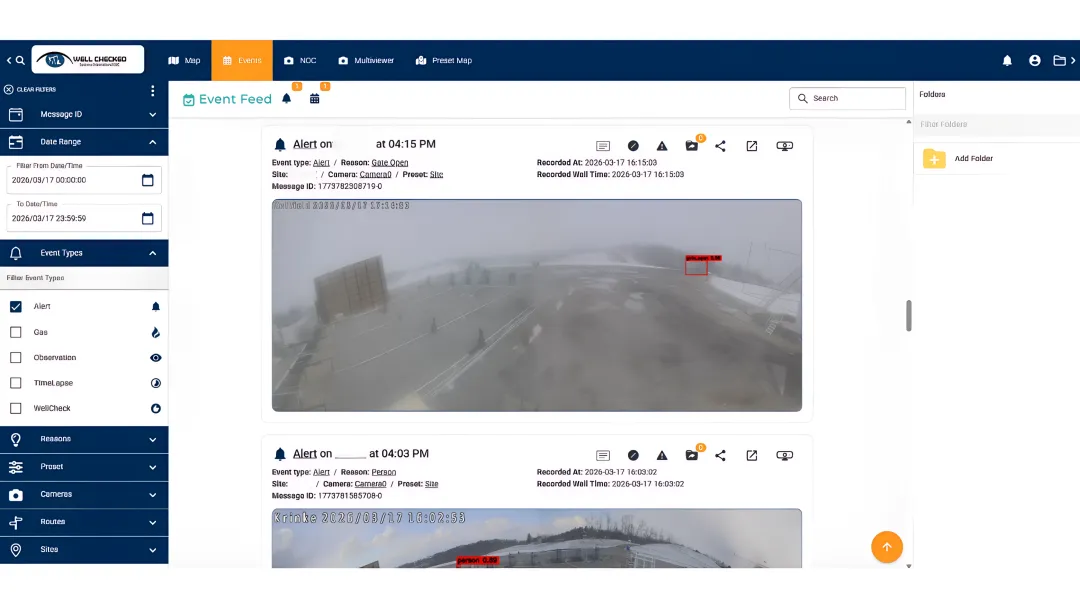

Well Checked's Zensory.ai™ platform operates on this model, with each site equipped with:
| Sensor Type | Function |
|---|---|
| High-resolution visible cameras | 360° visual surveillance, AI object detection |
| LWIR/OGI infrared cameras | Continuous methane detection, day and night |
| Acoustic equipment monitoring sensors | Equipment malfunction detection via sound signatures |
| Edge-compute nodes | Onsite AI processing, local storage, autonomous operation |
The platform processes 1,500+ videos per site per day, establishing a site-specific normal baseline in approximately 2 days via an AI Site Learning cycle. After that baseline is set, the system focuses alerts on system-validated anomalies — what Well Checked describes as finding "the needle in stacks of needles." Field dispatch is triggered by a confirmed anomaly, not a calendar — meaning crews spend time on genuine problems, not routine rounds.
Regulatory / Compliance-Driven LDAR Monitoring
Traditional Leak Detection and Repair programs use periodic OGI camera surveys — conducted by trained technicians on the regulatory schedule — to identify visible methane or volatile organic compound (VOC) leaks from components. Under Subpart OOOOa (the 2016 rule governing existing sources at the time), semiannual instrument monitoring was the standard at covered wellsites.
Quarterly or semiannual surveys create long windows where leaks persist undetected. Production-site studies have found tank-related high-emission conditions can persist for days — meaning a leak that starts and stops between surveys may never appear in LDAR records at all.
Regulators and voluntary frameworks like OGMP 2.0 increasingly recognize continuous, measurement-based monitoring as a more defensible alternative to periodic survey snapshots.
What an Effective Well Site Monitoring System Must Detect
A monitoring system's value is determined by what it can see, hear, and measure. Different event types require different sensor modalities — no single technology catches everything.
Production & Equipment Anomalies
Production anomalies appear as:
- Unexpected drops in flow rate or abnormal pressure readings
- Tank levels deviating from expected fill curves
- Pump jack behavior outside normal operating ranges
- Compressor surge or valve-position irregularities
Early detection of equipment faults — failing pump jacks, stuck valves — prevents both costly downtime and the secondary emissions events that often follow uncontrolled failures. A stuck valve that goes unnoticed doesn't just lose product; it frequently precedes a larger fugitive release.
Fugitive Methane & VOC Emissions
Methane and VOC leaks are invisible under normal light and can persist for days or weeks before a route-based inspection catches them — making fugitive emissions both the most difficult monitoring target and the one with the greatest regulatory exposure.
LWIR OGI cameras make methane and heavier hydrocarbons visible by detecting infrared absorption signatures. The critical distinction is continuous vs. periodic deployment: a quarterly walk-by survey captures a snapshot; a fixed continuous OGI system identifies leaks within hours of onset.
That timing gap has direct regulatory consequences. EPA's repair deadline clock starts at detection — 15 days for AVO-detected leaks — so earlier detection means shorter leak duration and lower compliance risk.
Well Checked's LWIR approach delivers this capability at a substantially lower cost than traditional mid-wave infrared solutions, making permanent, site-level deployment economically viable at scale rather than reserved for episodic surveys. Well Checked has a USPTO provisional patent filing for Detecting and Quantifying Fugitive Methane and Vapor Emissions Using Infrared Imaging and Machine Learning.
Safety & Security Events
Well site safety monitoring targets include:
- Unauthorized personnel or vehicle access and perimeter breaches
- Fire or smoke detection within camera coverage
- Visible spills or fluid releases
- Worker safety monitoring during manned operational periods
Acoustic AI adds a layer that cameras alone cannot provide. Pressure release events, mechanical impacts, and equipment-in-distress sound signatures are all detectable before a problem becomes visible — a compressor in early-stage failure is audible well before it trips offline. Well Checked has a USPTO provisional patent filing covering its acoustic anomaly detection technology.
Regulatory Threshold Exceedances & Compliance Events
Detection alone doesn't satisfy modern regulatory requirements. Regulators are asking how long a leak lasted, what volume was released, and what the operator did in response. Well Checked offers Zensory.ai™ across service tiers, and operators select the tier that fits each site:

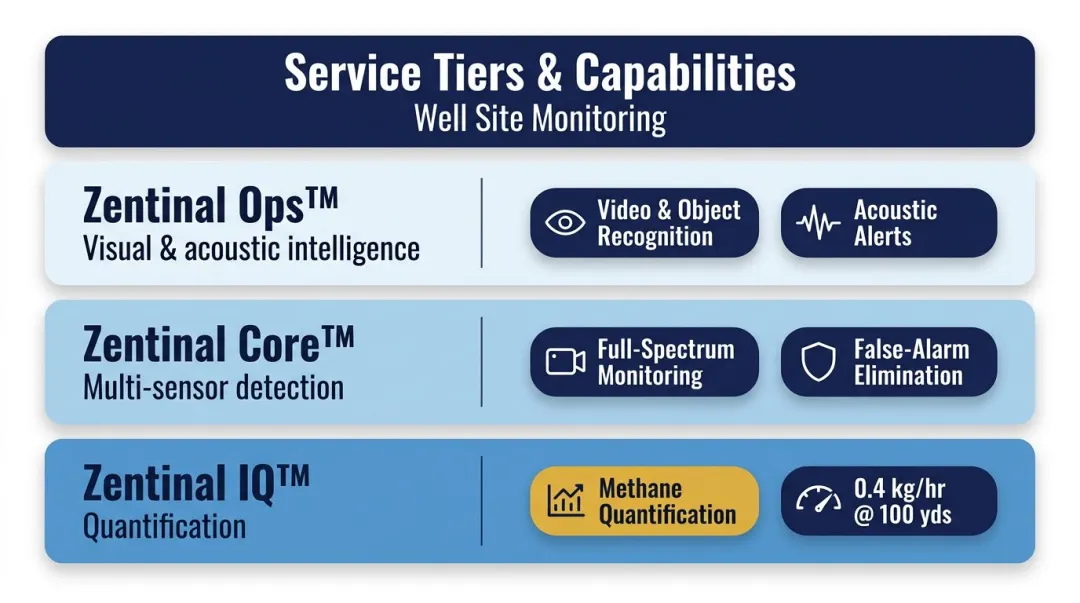

| Service Tier | Capability | What It Delivers |
|---|---|---|
| Zentinal Ops™ | Visual & acoustic equipment intelligence | High-resolution video, object recognition, acoustic anomaly detection, and actionable alerts |
| Zentinal Core™ | Multi-sensor detection | Full-spectrum monitoring (video, audio, IR); AI-driven wellsite monitoring with false-alarm-elimination intelligence; supports OGMP 2.0 Level 3 |
| Zentinal IQ™ | Quantification | High-accuracy methane quantification, emissions intelligence, and regulatory-ready reporting; 0.4 kg/hr quantification at 100 yds (~91m) |
Detection is less expensive to deliver than quantification, so Core is the more economical tier. Many operators run Core across the bulk of a portfolio and select IQ at the sites where quantified, reportable emissions volumes are required.

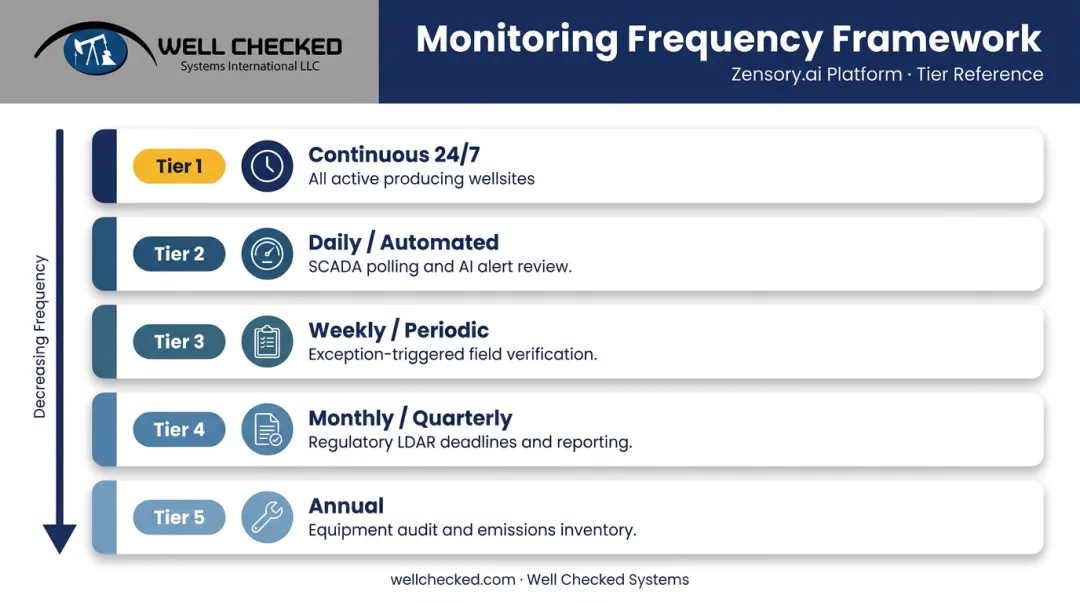

Well Site Monitoring Frequency & Scheduling Guidelines
Site risk profile, regulatory deadlines, production volume, and the financial cost of delayed detection all shape how often a well site needs attention. Continuous autonomous monitoring resolves most of this calculus — but a tiered scheduling framework still governs how operators allocate field resources across a portfolio.
| Frequency Tier | Monitoring Activity | Recommended For |
|---|---|---|
| Continuous (24/7) | Autonomous multi-sensor emissions detection, equipment anomaly alerting, safety surveillance | All active producing sites |
| Daily / Automated | SCADA data polling and alarm review; overnight AI alert queue review | Sites with SCADA integration |
| Weekly / Periodic | Exception-triggered field verification visits; visual inspection and minor maintenance | Dispatch-only, not scheduled by route |
| Monthly / Quarterly | Regulatory LDAR compliance deadlines; state agency reporting data assembly; EPA emissions event log review | Per applicable regulatory schedule |
| Annually | Comprehensive equipment audit; monitoring system calibration; OGMP 2.0 / SASB emissions inventory compilation | All sites |
High-production, high-pressure, or population-proximate sites warrant full continuous multi-sensor monitoring. These sites carry the highest regulatory exposure and consequence-of-failure cost, making 24/7 coverage a strong operating baseline.
Low-production marginal wells may be candidates for reduced-sensor telemetry combined with AI-assisted remote review. The economics favor a lighter hardware configuration at these sites — though continuous data capture, even at reduced sensor density, should remain the operating standard rather than reverting to scheduled route visits.
Well Site Monitoring Best Practices
Prioritize Validated Alerting Over Raw Data Volume
The biggest operational failure mode in modern monitoring isn't missing events — it's generating so many alerts that field teams stop taking them seriously. Effective programs use an AI site-learning period to establish a normal operational baseline before live alerting begins. Well Checked's Zensory.ai™ platform completes this baseline in approximately 2 days per site, after which the system focuses alerts on system-confirmed deviations.
The practical result: a team that trusts its alerts enough to act on them immediately, rather than triaging noise.

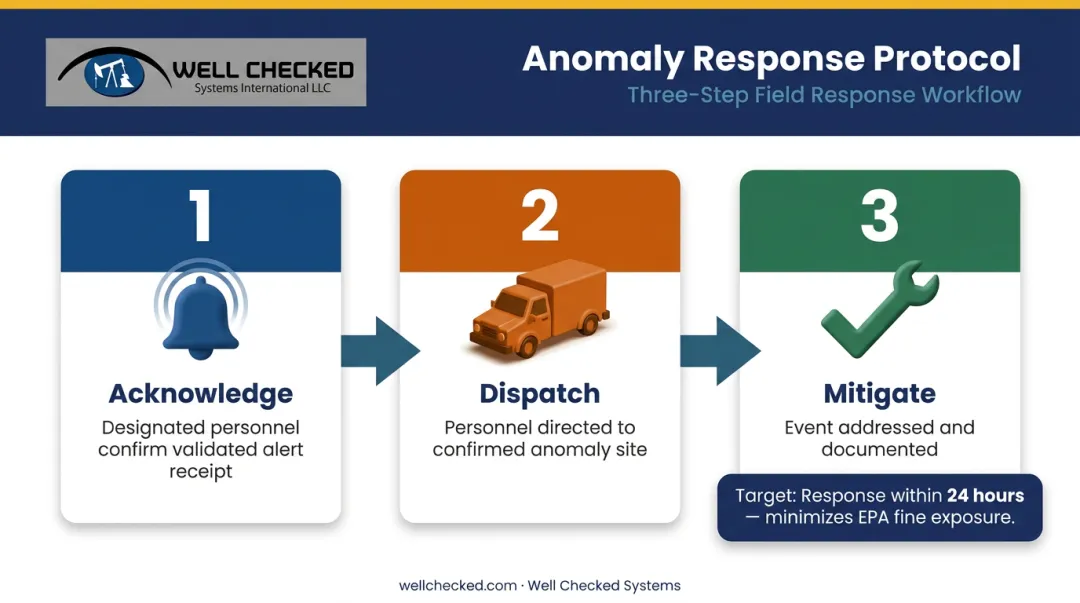

Establish a Clear Acknowledge-Dispatch-Mitigate Protocol
Monitoring data has no operational value unless it connects to a defined response workflow. The protocol structure should be:
- Acknowledge — designated personnel confirm receipt of the validated alert
- Dispatch — field personnel are directed to the specific site with the confirmed anomaly
- Mitigate — the event is addressed and documented
For confirmed methane events, response within 24 hours is the target window — one that Well Checked's documentation specifically ties to reducing EPA fine exposure. As one Director of Operations put it: "If all our sites are continuously monitored, when a Fugitive Gas Event occurs, which it will, we are proactively alerted and our team can acknowledge, dispatch, then mitigate within 24 hours."
Structure Monitoring Data for Regulatory Use from Day One
Retroactively reformatting monitoring records for EPA submissions, OGMP 2.0 Level 4/5 packages, or SASB disclosures is time-consuming and introduces error risk. Build timestamping, event-duration logging, and compliance-formatted data capture into the monitoring architecture from the start — so regulatory deliverables are a byproduct of normal operations, not a separate reporting project.
Zentinal IQ™ is built around this principle. Quantified emissions data flows automatically into structured formats aligned with:
- EPA methane rule requirements (40 CFR Part 60 Subpart OOOOb)
- State-agency inventory submissions
- ESG disclosure frameworks (OGMP 2.0 Level 4/5 and SASB)
Available exports can reduce manual extraction and reformatting, subject to each operator's reporting workflow — compliance output becomes a natural result of continuous monitoring, not an end-of-quarter scramble.
Frequently Asked Questions
What is surveillance in petroleum industries?
Petroleum surveillance is the ongoing observation and measurement of reservoir conditions, production performance, surface equipment behavior, and emissions at wellsites. It supports recovery optimization, early problem detection, and regulatory compliance across the producing asset lifecycle.
What are the key components of a well site monitoring system?
Core components include:
- Sensors — video cameras, LWIR/OGI infrared cameras, acoustic detectors, pressure and flow transmitters
- Edge-compute hardware — onsite processing that operates independently of connectivity
- Communications network — synchronizes data between the field and central platform
- Software platform — aggregates, analyzes, and alerts on incoming data streams
How does continuous monitoring compare to periodic LDAR inspections?
Continuous monitoring detects emissions events within hours of onset and captures duration and volume data. Quarterly LDAR inspections capture a single point in time, meaning leaks can persist undetected for up to three months between surveys — accumulating product loss and regulatory exposure throughout.
What regulations require well site emissions monitoring?
EPA 40 CFR Part 60 Subpart OOOOb governs new and modified sources (post-December 6, 2022). State rules like New Mexico's 20.2.50 NMAC add further requirements, and voluntary frameworks such as OGMP 2.0 Level 4/5 recognize continuous measurement-based monitoring as the highest-quality reporting pathway.
