Many operators still rely on quarterly walkdowns as their primary monitoring strategy. That approach leaves significant gaps — and the regulatory and financial consequences of missed events are well-documented.
This article covers what equipment and site conditions are required to monitor wellsite emissions effectively, the three primary methods operators use today, how to interpret what the data tells you, and the most common errors that lead to missed events or regulatory exposure.
Key Takeaways
- Wellsite emissions originate from wellheads, separators, tanks, pneumatics, compressors, and flowlines — each requiring different detection approaches
- The three main monitoring methods are periodic optical gas imaging (OGI)/leak detection and repair (LDAR) inspections, fixed continuous sensor monitoring, and AI-enabled autonomous multi-sensor monitoring
- Monitoring results fall into three categories: normal process emissions, minor deviations, and confirmed fugitive events requiring repair and documentation
- Basin-scale measurement work shows the higher-emitting population shifts between survey rounds rather than staying fixed, meaning periodic inspections alone leave significant methane losses undetected
- EPA Subpart OOOOb and OGMP 2.0 are driving operators toward continuous, defensible monitoring programs
What You Need to Monitor Emissions at an Oil and Gas Well Site
Effective wellsite emissions monitoring starts with knowing what you're looking for, where it originates, and what tools can actually detect it under your site's conditions.
Emission Sources and Target Pollutants

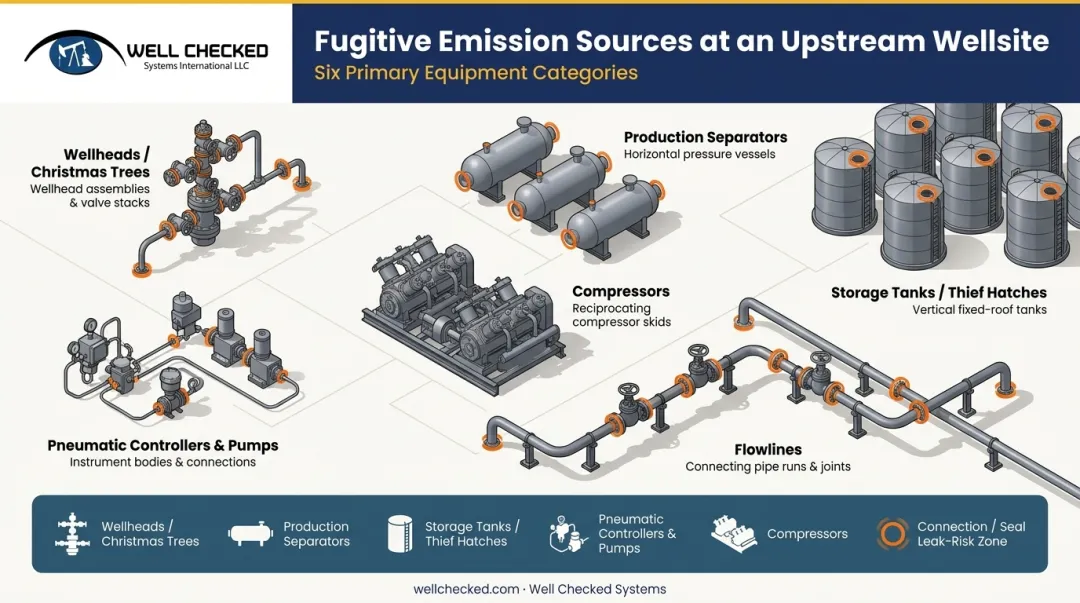

Every upstream wellsite has multiple potential fugitive emission points. The primary sources include:
- Wellheads and Christmas trees — connections, valves, and seals subject to wear and pressure cycling
- Production separators — flanges, instrument connections, and relief valves
- Storage tanks and thief hatches — a common source of volatile organic compound (VOC) emissions, particularly during filling events
- Pneumatic controllers and pumps — intentional process venting that can mask or be confused with fugitive leaks
- Compressors — rod packing, seal faces, and exhaust connections
- Flowlines — corrosion, fitting failures, and connection points along gathering infrastructure
The key target pollutants vary by site composition and regulatory exposure:
- Methane (CH4) — the primary monitoring target at every upstream site, and the bulk of recoverable product value in a fugitive release
- VOCs — including benzene and other BTEX compounds listed as hazardous air pollutants under Clean Air Act Section 112
- Other site-specific analytes — additional constituents may apply depending on produced gas composition and the site's hazard assessment, and are typically handled by dedicated safety-system instrumentation
Tools and Monitoring Equipment Required
The right tools depend on your monitoring method and site conditions:
| Tool | Primary Use |
|---|---|
| OGI camera (MWIR or LWIR) | Visual detection of methane and VOC plumes |
| Fixed gas sensors / FIDs | Continuous concentration monitoring at defined points |
| Acoustic equipment sensors | Equipment malfunction and leak signature detection |
| AI multi-sensor platform | Autonomous 24/7 detection, filtering, and quantification |
| Wind speed meter | Required for OGI survey validity under OOOOb |
| Calibration gas cylinders | Sensor verification before each inspection or on schedule |
Site access and connectivity shape which approach is even viable. Remote unattended wellsites require onsite edge computing — systems that operate independently of a live network connection and log data locally when comms drop. Road-accessible sites can support periodic inspection-based approaches, but those methods only capture conditions during the visit window, leaving leaks that start and stop between surveys undetected.
Methods to Monitor Emissions at an Oil and Gas Well Site
No single method suits every wellsite or regulatory requirement. Operators choose based on site remoteness, regulatory mandate, whether continuous coverage is needed, and whether the program requires detection alone or documented emissions quantification.
Method 1: Periodic OGI/LDAR Inspection
What it is: A certified inspector uses an Optical Gas Imaging camera — typically MWIR or LWIR — to visually detect methane and VOC plumes from wellsite components during a scheduled walkdown survey.
Equipment needed: OGI camera (EPA Method 21 or OGI-compliant), wind speed meter, component inventory, inspection log or LDAR database software.

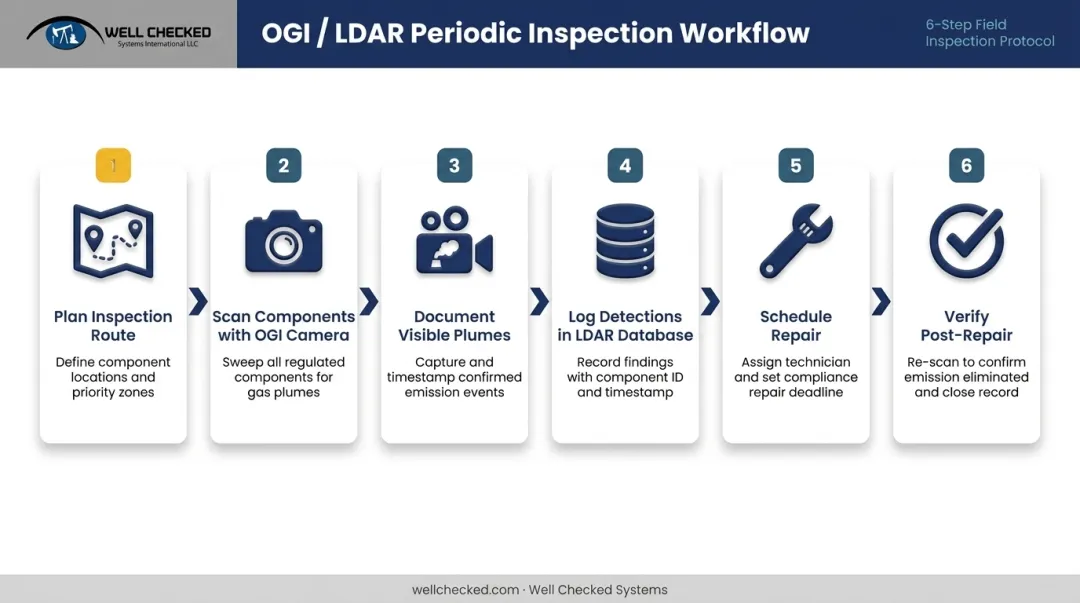

How it works:
- Review the site component list and plan the inspection route upwind to downwind
- Approach each component class (valves, connectors, flanges, thief hatches, pneumatics) at the required distance and scan systematically with the OGI camera while recording
- Document any visible gas plumes with video or photo evidence
- Log all detections in the LDAR database with component ID, date, and inspector information
- Schedule repair within the regulatory timeframe (under OOOOb, this varies by leak classification and component type)
- Conduct follow-up verification after repair
Regulatory note: Under OOOOb, inspection frequency ranges from quarterly audio, visual, olfactory (AVO) at single-wellhead sites to bimonthly AVO plus quarterly OGI at sites with major production equipment such as separators, compressors, or storage vessels.
Pros and cons:
- ✅ EPA-accepted, legally defensible compliance pathway
- ✅ Straightforward to deploy and audit
- ❌ Provides only a periodic snapshot — events that begin and end between surveys can be missed
- ❌ EPA's advanced methane technology program recognizes continuous monitoring as an available approach for improving visibility between scheduled surveys when an approved method and monitoring plan apply
- ❌ Mobilization time and inspector cost are significant at high-component-count sites
That detection gap is where fixed continuous sensors offer a different trade-off.
Method 2: Fixed Sensor-Based Continuous Monitoring
What it is: Permanent gas detectors, electrochemical sensors, or flame ionization detectors installed at predefined emission points across the wellsite continuously sample and log gas concentrations, triggering alerts when readings exceed preset thresholds.
Equipment needed: Fixed-point gas sensors (methane and VOC as appropriate), data loggers, communications link (cellular or satellite), calibration gas and maintenance schedule.
How it works:
- Identify highest-risk emission points based on component type and historical event data
- Install calibrated sensors with appropriate weather protection
- Define alarm thresholds based on regulatory limits and site-specific risk tolerance.
- Establish data logging and alert transmission protocol
- Review incoming data against thresholds and dispatch personnel when alarms trigger
- Document all events, response times, and repair actions for compliance records
Pros and cons:
- ✅ Provides continuous coverage at instrumented points, detecting events between inspection visits
- ✅ Can contribute to EPA alternative monitoring pathways when the deployment meets OOOOb's codified provisions
- ❌ Only monitors pre-defined locations — unexpected leak points outside the instrumented coverage area can be missed
- ❌ Fixed sensors can generate false positives from wind shifts, temperature swings, and sensor drift; EPA requires technology-specific review and approval for advanced methane monitoring methods, so operators should evaluate documented performance for the proposed site and pathway
- ❌ Does not on its own produce documented emissions quantification of emission volumes
Both limitations — fixed-point blind spots and high false-positive rates — point toward a third approach that addresses site-wide coverage and alert quality together.
Method 3: AI-Enabled Multi-Sensor Autonomous Monitoring
What it is: An integrated platform combining high-resolution video with AI object detection, LWIR OGI cameras, and acoustic equipment sensors is deployed at the wellsite. The system learns normal operational behavior during a site-specific learning period. It then monitors 24/7 and focuses operator alerts on system-validated fugitive anomalies while helping filter normal process emissions and environmental noise.
Equipment needed: Multi-sensor monitoring unit (video + LWIR + acoustic), onsite edge computing hardware, communications link (operates independently if offline), cloud-based alert and data dashboard.

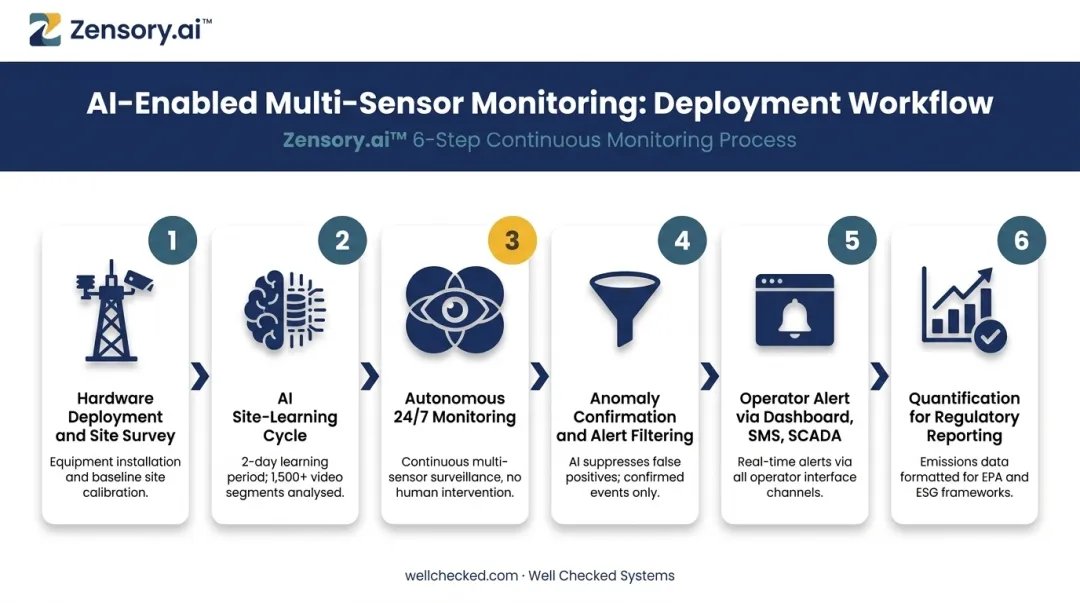

How it works:
- Deploy the monitoring hardware at the wellsite with line-of-sight coverage of key equipment clusters — installation includes a site survey, hardware mounting, power connection, and sensor calibration
- Allow the platform to complete its AI site-learning cycle (approximately 2 days per site), during which it processes 1,500+ video segments per site per day to establish a normal operating baseline. That baseline captures the visual patterns, thermal signatures, and sound profiles specific to that wellsite.
- After learning completes, the system autonomously monitors video, IR, and acoustic feeds in parallel, continuously comparing incoming data against the site-specific baseline
- When a deviation is confirmed across one or more sensor types as a system-validated fugitive anomaly — not a known process event — the system generates a validated alert filtered to exclude normal operational emissions
- The operator receives a near real-time alert through the Well Checked Dashboard, email, SMS, and/or SCADA API with supporting evidence to support dispatch decisions
- For confirmed events, a quantification layer calculates emission volume, duration, and rate for regulatory reporting — Zentinal Core™ handles first-line detection and false-alarm filtering, while Zentinal IQ™ produces documented emissions quantification data for EPA and ESG reporting submissions
Pros and cons:
- ✅ Genuine 24/7 autonomous detection across the entire site field of view, not just pre-instrumented points
- ✅ Reduces false alerts by learning site-specific normal behavior — operator alerts focus on system-validated anomalies
- ✅ LWIR cameras enable day and night detection at a substantially lower cost than traditional MWIR solutions
- ✅ Enables operate-by-exception field management, replacing scheduled route-based site visits with targeted dispatch; edge computing can continue local processing during communications interruptions, with availability subject to site power, hardware, storage, and maintenance conditions
- ❌ Requires upfront hardware deployment and a site-learning period before full autonomous operation begins
- ❌ Connectivity and edge computing infrastructure must be verified for the specific remote site environment
How to Interpret Emissions Monitoring Results
Misreading monitoring data has a direct cost. Acting on false positives wastes dispatch resources. Missing or misclassifying a system-validated fugitive anomaly can trigger EPA fines, regulatory violations, and unrecovered product loss — and operators typically don't know which risk they're carrying until it's too late.
Normal / Acceptable
Planned operational venting from pressure relief devices within design parameters, low-level background readings from pneumatic controllers within permit limits, and gas concentrations consistent with ambient baseline all fall here. The action step is documentation and continued monitoring — no dispatch required.
Minor Deviation
Readings that rise slightly above baseline or show a transient OGI plume that does not persist — for example, a brief valve actuation or a thief hatch opened and reclosed. Under EPA guidance, the conventional OGI standard defines a fugitive event as any visible emissions, while Method 21 uses 500 ppm or greater as the threshold.
The appropriate response is logging the event, flagging it for follow-up verification, and investigating whether operating conditions changed. Do not assume duration exempts you from documentation.
Confirmed Fugitive Event
A persistent OGI plume from a component not designed to vent, an acoustic anomaly paired with an IR detection, or a sensor reading that rises and does not return to baseline. Well Checked has a USPTO provisional patent filing covering its acoustic anomaly detection technology. When any of these conditions are present, escalate immediately:
- Log the event with timestamp, location, and supporting evidence
- Dispatch for verification and repair within the regulatory timeframe required under the applicable rule (40 CFR Part 60 Subpart OOOOb)
- Document duration and estimated emission volume for regulatory reporting and repair ROI analysis
Operators subject to OGMP 2.0 Level 4 or 5 reporting face an additional requirement beyond these steps: quantified emission volume data, not just detection records. Level 4 demands source-level direct measurements; Level 5 adds independent site-level reconciliation. A detection-only system cannot satisfy either standard — operators relying on one face the choice of manual quantification after the fact or submitting incomplete data to auditors.

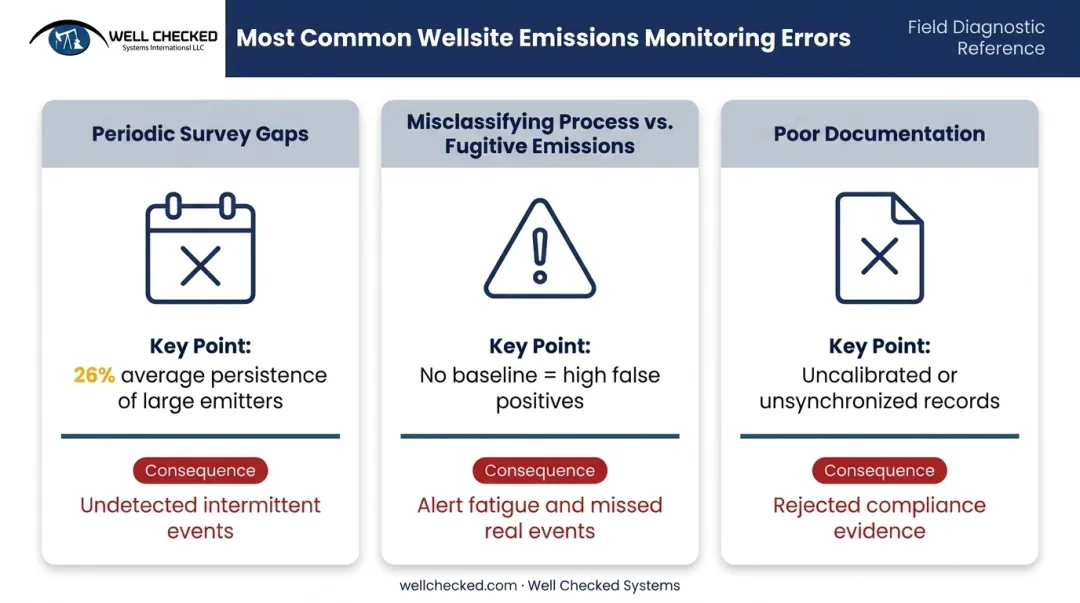

Common Errors in Wellsite Emissions Monitoring
Relying Solely on Periodic Surveys at High-Frequency Emission Sites
Quarterly or annual inspections create multi-week windows during which significant methane losses can occur undetected. Repeat basin-scale measurement work by the Appalachian Methane Initiative, whose science is led by the Energy Emissions Modeling and Data Lab at The University of Texas at Austin, shows that the higher-emitting population shifts between survey rounds rather than staying fixed — the site that measures clean on inspection day is not necessarily the site that is clean a month later. Periodic inspection can confirm the absence of a leak at the moment of observation; it cannot confirm absence between observations.
Confusing Normal Process Emissions With Fugitive Events
Sites without an established operational baseline generate high false-positive alert rates. When that happens, operators start ignoring alerts — and miss the events that matter.
The reverse risk is just as serious. Sites where normal venting is assumed to be innocuous can mask actual leaks from similar equipment. A site-specific learning period or baseline characterization is essential before meaningful alert thresholds can be set.
Failing to Document in a Reviewable Format
Once a detection event is validated, it only counts if the documentation holds up. Data collected through informal logs, unsynchronized timestamps, or uncalibrated equipment may not be accepted by EPA or state agencies as compliance evidence.
OOOOb requires records to include:
- Survey dates and times
- Site and component identity
- Monitoring method used
- Inspector information
- OGI instrument operating-envelope checks
- Detection findings
- Repair attempts and verification results
These records must generally be retained for 5 years. Monitoring data structured for OGMP 2.0 or SASB ESG disclosures requires additional rigor. Collecting data without structuring it for the applicable framework forfeits most of its compliance value.
Safety and Best Practices for Wellsite Emissions Monitoring
Field safety during emissions monitoring activities requires specific precautions beyond general site safety:
Field Personnel Precautions
- Site hazard awareness: Conduct site surveys with full knowledge of the location's identified hazard zones. Carry a personal multi-gas monitor matched to the site hazard assessment, and confirm muster and evacuation procedures before any inspection walkdown.
- Equipment calibration before every survey: Inspect OGI cameras and fixed sensor equipment for calibration validity. Use calibration gas to verify sensor response. An out-of-calibration LWIR camera can produce imagery that appears normal even when a plume is present — a silent compliance failure.
System and Record-Keeping Checks
- Traceable, timestamped records: Maintain complete records of all monitoring activities, calibration logs, detected events, repair actions, and follow-up verifications. Regulatory agencies expect an auditable chain of evidence, not a summary.
- For autonomous deployments: Verify the following before each monitoring cycle:
- Edge computing hardware is within its environmental operating rating
- Camera fields of view are clear of vegetation or equipment that may have shifted since installation
- Communication uplink is active, or local edge alerting is confirmed functional for offline operation
Frequently Asked Questions
What is emissions monitoring?
Emissions monitoring is the ongoing collection and measurement of gases released from an industrial source. At oil and gas well sites, this means continuously or periodically measuring methane, VOCs, and other pollutants from wellsite equipment to demonstrate regulatory compliance and detect unintended releases before they become significant losses.
How do you monitor methane emissions at a well site?
Wellsite methane and VOC emissions are monitored through OGI surveys, fixed gas sensors, or continuous autonomous platforms. Methane is the primary target; quantified volumes are converted to CO2-equivalent figures using the conversion factors specified by the applicable reporting program, for inventories and ESG reporting under frameworks such as OGMP 2.0 and SASB.
What is opacity monitoring?
Opacity monitoring measures how much visible light is blocked by particulate matter in emissions. At oil and gas well sites, it is most relevant to flare stacks, where visible smoke can indicate incomplete combustion. Under OOOOb, flare checks use Method 22, which records the presence and duration of visible emissions rather than an opacity percentage — distinct from methane or VOC monitoring, which requires infrared-based detection.
What is the difference between fugitive emissions and process emissions at a well site?
Process emissions are intentional, designed releases — such as controlled venting from pneumatic devices. Fugitive emissions are unintended leaks from seals, flanges, connectors, or valves that should not be releasing gas. The monitoring approach, regulatory treatment, and repair obligations differ significantly between the two, which is why an established site baseline is essential before alert thresholds are set.
What regulations apply to emissions monitoring at oil and gas well sites?
The primary federal rule is 40 CFR Part 60 Subpart OOOOb (new and modified sources after December 6, 2022). It establishes LDAR requirements, monitoring frequencies, and alternative monitoring pathways. Voluntary frameworks including OGMP 2.0 Levels 4/5 impose additional obligations.
How often should LDAR inspections be conducted at oil and gas well sites?
Under OOOOb, frequency depends on site classification and equipment type: quarterly AVO at single-wellhead sites, bimonthly AVO plus quarterly OGI at sites with major production equipment. Operators using an EPA-approved alternative test method may follow its approved monitoring provisions when the technology, protocol, investigation, repair, and recordkeeping requirements are met.
Wellsite emissions monitoring requires layered tools and structured processes. Periodic OGI/LDAR establishes the regulatory baseline. Fixed sensors extend continuous coverage to known emission points. AI-enabled multi-sensor platforms deliver the 24/7 autonomous awareness that neither approach alone can provide. Monitoring data creates value when it drives action — system-validated events can be logged with operator-reviewed duration and volume estimates to support repair decisions and applicable reporting workflows. Operators who invest in monitoring infrastructure without a structured response and documentation workflow capture only a fraction of that investment's value.
