Fugitive emissions don't wait for a scheduled visit. A compressor seal can start leaking on a Tuesday and go unnoticed until the next quarterly inspection rolls around weeks later. Meanwhile, EPA's methane rule and ESG frameworks are pushing operators toward continuous, measurement-based reporting instead of periodic snapshots.
This article breaks down what emissions analytics actually means, how real-world sensor data gets turned into decision-ready insight, and what separates a defensible monitoring solution from a noisy one.
Key Takeaways
- Emissions analytics converts continuous multi-sensor field data into real-time, defensible insight — not periodic snapshots
- Video, acoustic, and optical gas imaging together distinguish true leaks from normal operational noise
- EPA's 40 CFR Part 60 Subpart OOOOb and OGMP 2.0 are pushing operators toward measurement-based reporting
- AI-driven monitoring cuts cost, safety risk, and windshield time versus manual pumper routes
What Is Emissions Analytics?
Emissions analytics is the continuous collection, validation, and analysis of field data. It pulls visual footage, acoustic signatures, and gas concentration readings into a real-time picture of how a site is actually performing.
That's a different animal from emissions reporting. The two jobs are not the same:
- Reporting is periodic and regulator-facing: a form filed once a quarter or once a year
- Analytics is continuous and decision-ready: it tells a field team right now whether something needs attention
Why does this distinction matter? Factor-based estimation methods (the traditional way emissions get calculated) assume steady, predictable behavior. Real leaks don't work that way.

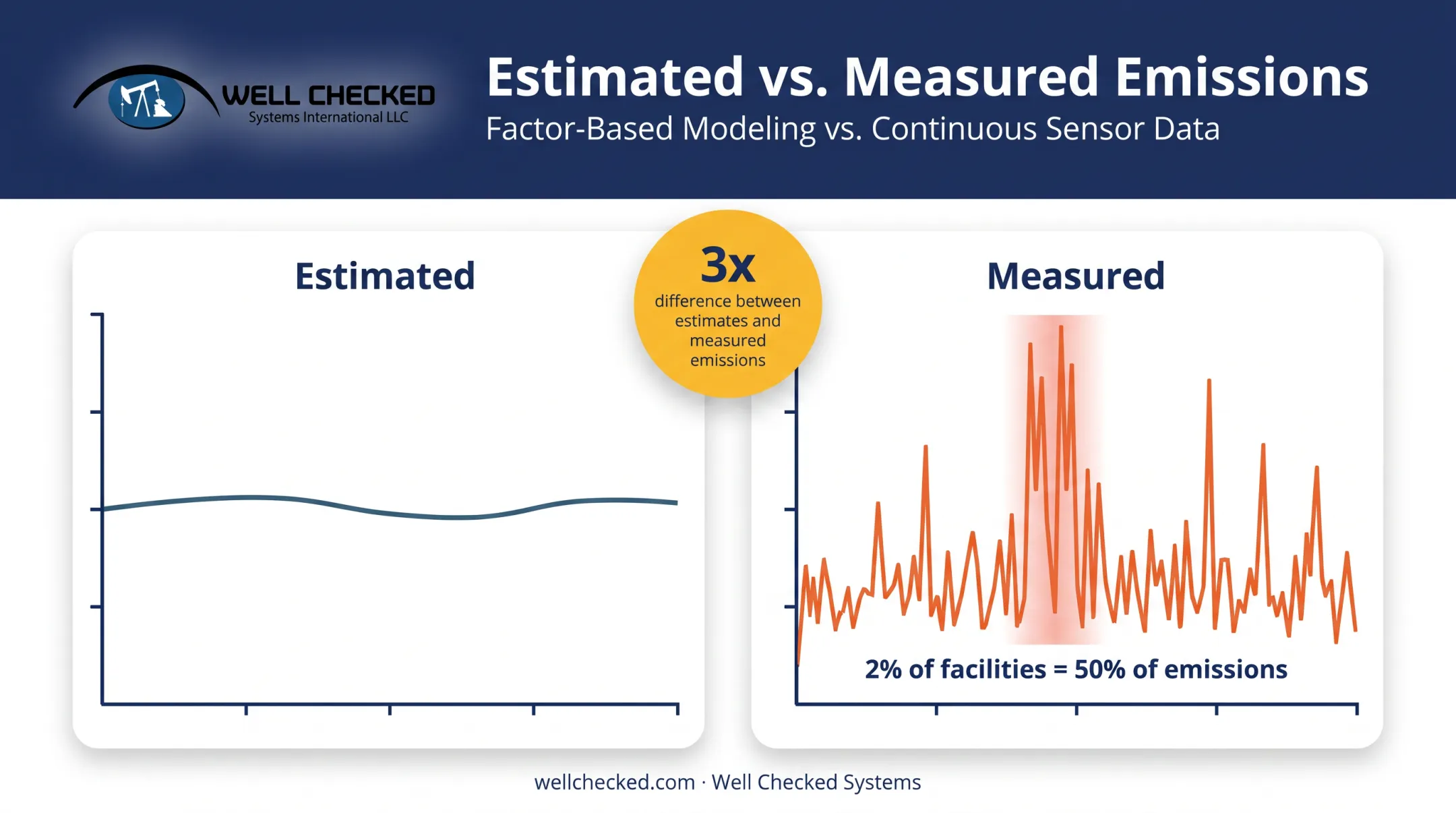

Research from the Barnett Shale region found that 2% of facilities accounted for half of all measured emissions. High emitters also varied sharply across time and location — bottom-up estimates differed from actual field measurements by a factor of three. In other words, the sites causing the most damage aren't the ones a fixed inspection schedule is likely to catch.
For national context, EPA reports that methane made up 12% of all U.S. greenhouse gas emissions in 2022, with natural gas and petroleum systems ranking as the second-largest U.S. methane source after agriculture. Continuous field data is how operators see their share of that problem before the next filing window.
Why Real-World Emissions Data Matters for Oil & Gas Operators
The Regulatory Push
EPA's 2024 methane rule (Subpart OOOOb for new, modified, and reconstructed sources) lets operators submit alternative-monitoring compliance data instead of relying only on ground-based OGI surveys. That pathway still has hard requirements:
- A valid emissions-rate reading at least once per 12-hour block
- A detection threshold down to 0.40 kg/hr
- No more than 10% rolling annual downtime
Estimates and quarterly snapshots don't clear that bar. Continuous, sensor-based data does.
Layered on top of EPA requirements:
- OGMP 2.0 Level 4/5 requires source-level inventory reporting reconciled against independent site-level measurement
- SASB and TCFD frameworks expect publicly traded E&Ps to disclose material Scope 1 emissions with documented calculation methods
- State-agency inventories increasingly expect the same measurement-based rigor
The Cost Reality
Route-based site visits aren't cheap. For mid-sized to large operators, annual pumper-route and periodic inspection costs typically run $1 million to $5 million or more, driven by:
- Labor
- Vehicle mileage
- Inspection frequency
- Follow-up trips when something is found
Continuous monitoring changes that math. Operators pay for coverage and dispatch only when a validated event appears—not for scheduled visits whether anything is wrong or not.
The Response Window

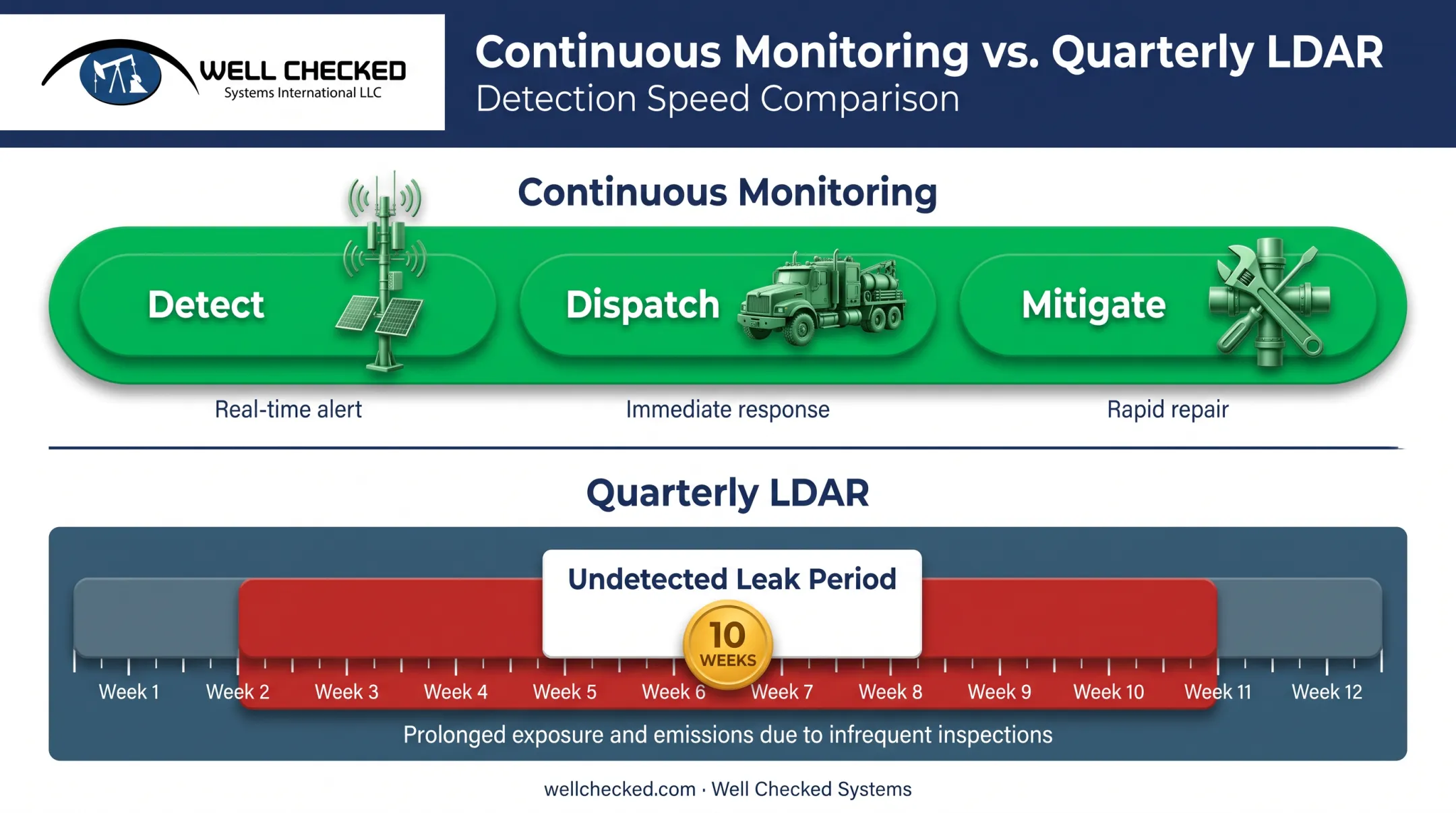

A validated fugitive gas event caught by continuous monitoring can move through an acknowledge-dispatch-mitigate cycle within 24 hours. On a quarterly LDAR cycle, the same leak can run undetected for weeks or months until the next scheduled survey.
That gap is where EPA fines accumulate and where the most methane escapes.
Operational co-benefits compound the case:
- Fewer pumper-route vehicle miles cut fuel cost and incidental emissions
- Less field exposure to traffic, weather, and hazardous site conditions
- Fewer unnecessary site visits when nothing is wrong
How Multi-Sensor Analytics Platforms Turn Field Data Into Insights
The "Video, Acoustic, Infrared" Model
A single sensor type creates blind spots. The stronger approach combines three data streams:
- Sight — high-resolution video with AI object detection for visual surveillance
- Sound — acoustic AI that flags abnormal equipment noise, like a valve starting to fail
- Gas imaging — long-wave infrared optical gas imaging (LWIR OGI) for continuous methane and VOC detection, day or night
LWIR cameras also carry a practical advantage: they run at roughly one-third the cost of traditional mid-wave IR equipment, without giving up detection performance.
Learning What "Normal" Looks Like
Every wellsite behaves differently. A compressor that runs constantly at one site might be an anomaly at another.
Well Checked's Zensory.ai™ platform addresses this with an AI Site Learning cycle that runs about two days per site. In that window, the system builds a baseline of normal process emissions and equipment sounds. Once the baseline exists, deviations get flagged.

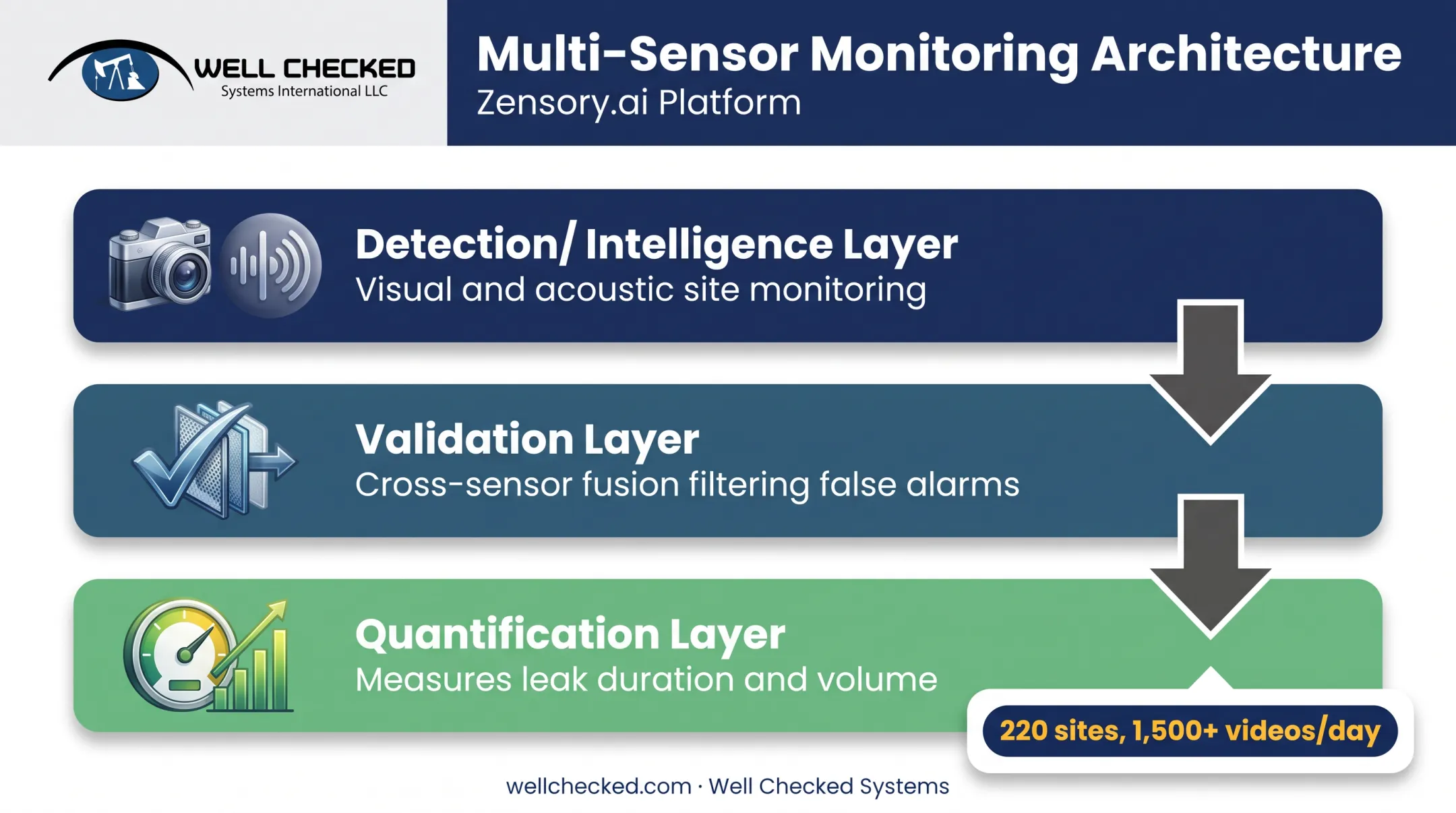

A Tiered Architecture
Rather than one black-box alert system, a defensible platform separates functions into layers:
- Detection/intelligence layer (Zentinal Ops™) — visual and acoustic monitoring
- Validation layer (Zentinal Core™) — cross-sensor fusion that filters false alarms before anything reaches a human
- Quantification layer (Zentinal IQ™) — measures duration and volume only after Core has validated the event
An alert that says "something's leaking" is useful. An alert that says "this leak has run for six hours at an estimated rate of X" is what lets an operator decide whether to dispatch a repair crew now or schedule it for the next maintenance window.
Quantification is what turns detection into an ROI decision.
Well Checked's platform runs this architecture in the Appalachian Basin, processing 1,500+ videos per site per day. Processing runs on onsite edge computing, so analysis continues even when a site loses connectivity — data syncs automatically once the connection returns.
Turning Data Into Regulatory-Defensible Insight
Not all monitoring data holds up under regulatory scrutiny. What makes a record defensible?
- Continuous timestamps rather than a single snapshot date
- Quantified volume and duration, not just a binary "leak detected" flag
- Cross-sensor validation showing the event was confirmed, not a single-sensor false positive
This structure supports submissions across multiple frameworks:
| Framework | What it needs |
|---|---|
| EPA (OOOOb) | Alternative-monitoring compliance data with valid emissions rates |
| OGMP 2.0 | Level 4/5 source-to-site reconciliation |
| SASB | Scope 1 metrics aligned to Oil & Gas E&P standards |
| TCFD | Disclosed calculation methods and historical trend data |
The key design principle: separate detection from quantification. An alert only gets escalated to a field team after cross-sensor validation confirms it's real. That separation is what keeps false alarms from burying legitimate events — and it's what regulators and auditors expect to see documented.
Common Pitfalls When Evaluating Emissions Analytics Solutions
Not every monitoring platform on the market delivers what it promises. Watch for these issues:
Single-modality point solutions. A system that only offers optical gas imaging, or only acoustic sensing, creates blind spots. It also means stitching together multiple vendors to cover what one multi-sensor platform could handle alone.
Alert fatigue from high false-positive rates. A controlled 2023 study of 11 continuous-monitoring solutions found false-positive rates ranging from 0% to 79%. some of the highest-performing detectors also produced the most false alarms. A system that floods a field team with noise defeats the entire purpose of "operate by exception."
Data that isn't structured for compliance. A generic dashboard showing pretty charts isn't the same as data formatted for EPA submission, OGMP 2.0 Level 4/5 reconciliation, or SASB disclosure. Before signing a contract, ask a vendor to show a sample regulatory export, not just a demo screen.
Use this quick evaluation checklist:
- Does it combine at least two sensor modalities (ideally three)?
- What's the documented false-positive rate under independent testing?
- Can it output data in formats regulators and ESG frameworks actually accept?
- Does it separate detection from quantification, or bundle them together?
Frequently Asked Questions
What is emissions analytics in oil and gas?
Emissions analytics is the continuous collection and analysis of field sensor data, such as video, acoustic, and gas imaging, to build a real-time, defensible picture of a site's emissions performance. It replaces periodic snapshots with ongoing visibility.
How does real-world emissions data differ from estimated emissions data?
Real-world data comes from sensors measuring actual site conditions, while estimated data relies on factor-based calculations assuming average behavior. Measured data catches irregular, high-volume events that factor-based estimates typically miss.
Why is continuous methane monitoring replacing quarterly LDAR inspections?
Quarterly inspections can miss weeks or months of undetected leaks between visits. Continuous monitoring closes that gap and enables response within 24 hours instead of waiting for the next scheduled survey.
What regulations are driving demand for emissions analytics in the US?
EPA's methane rule (40 CFR Part 60 Subpart OOOOb) permits alternative-monitoring data submissions, while OGMP 2.0, SASB, and TCFD frameworks push publicly traded operators toward measurement-based ESG reporting.
How does AI help distinguish real emissions events from normal operations?
AI systems learn a site-specific baseline of normal activity, typically over about two days, then cross-validate signals across multiple sensors before flagging an event. This filters out false alarms that a single sensor might trigger.
What should operators look for in an emissions monitoring vendor?
Look for multi-sensor coverage (video, acoustic, gas imaging), documented low false-alarm rates, and data output structured for actual compliance frameworks like EPA, OGMP 2.0, SASB, and TCFD, not just a generic dashboard.
