Introduction
A worn valve stem. A pitted flange gasket. A compressor packing seal past its service life. None of these look dangerous.
Yet across thousands of wellheads, connectors, and tank hatches, they quietly bleed methane and volatile organic compounds into the atmosphere, day and night, often for weeks before anyone notices.
That's the challenge with fugitive emissions: they're invisible, scattered across remote and often unmanned sites, and they don't announce themselves. By the time a pumper's quarterly route catches a leak, the operator has already lost sellable product and may be staring down an EPA violation.
This guide breaks down what fugitive emissions actually are, where they come from, and why they matter financially and environmentally. It also covers how they're detected, what regulators now require, and how operators are cutting leak rates with modern monitoring.
Key Takeaways
- Fugitive emissions are unintentional leaks from equipment, not intentional venting or flaring.
- Valves and connectors remain the top leak source across most upstream field studies.
- Quarterly inspections often miss short-duration leaks, prompting a shift to continuous monitoring.
- Continuous, AI-based systems cut detection costs and reduce EPA fine exposure.
What Are Fugitive Emissions?
Fugitive emissions are unintentional, uncontrolled releases of gases or vapors from leaking equipment, rather than a deliberate process release.
The EPA defines them as equipment leaks stemming from loose fittings, worn stem seals, corrosion, damaged valve gates, or plain operator error, occurring at connectors, valves, open-ended lines, pressure-relief devices, and tank thief hatches.
The gas composition is mostly methane and volatile organic compounds (VOCs), with smaller contributions from CO2 and N2O.
Fugitive Emissions vs. Vented and Flared Emissions
These three categories get lumped together casually, but they're reported and managed very differently:
- Fugitive leaks: unintentional and uncontrolled (a leaking valve stem)
- Venting: intentional, engineered release (a pressure-relief event or purge)
- Flaring: intentional combustion of waste gas for safety or operational reasons
Subpart W requires operators to report equipment leaks, vented emissions, and flared emissions as separate line items. Mixing them together hides where the actual leak-repair opportunity sits.
Why Fugitive Emissions Are Called a Measurement "Blind Spot"
Bottom-up inventories, which rely on standardized emission factors, consistently undercount real-world leakage. A landmark 2018 Science study by Alvarez et al. found that measured U.S. oil and gas methane emissions ran about 60% higher than EPA's inventory estimate, with production-segment emissions more than double what factor-based models predicted.
What Is the Most Common Source of Fugitive Emissions?

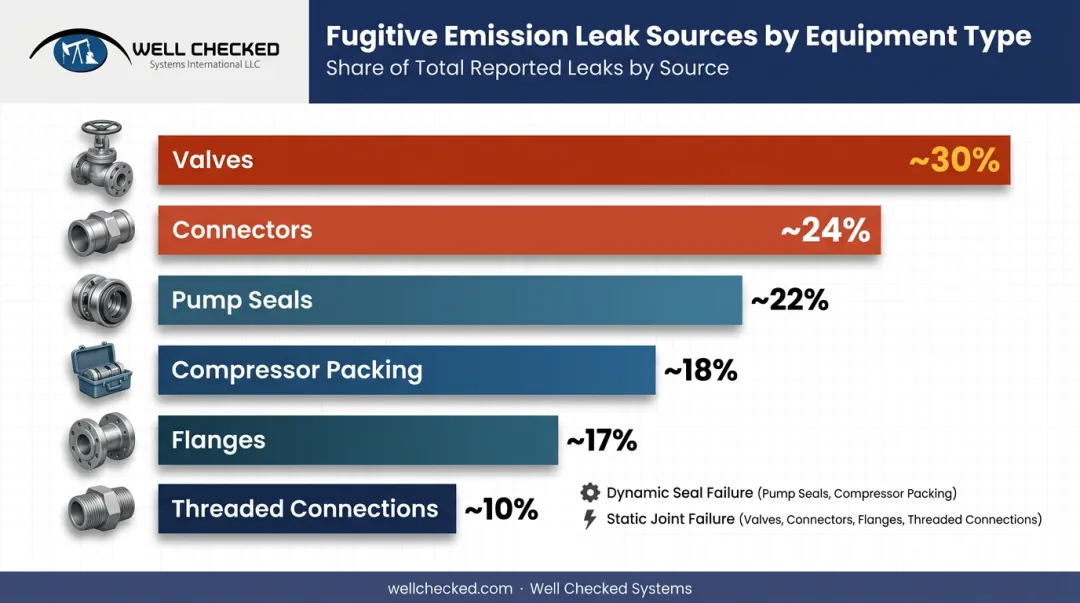

Valves and connectors consistently top the list. Multiple upstream leak surveys point the same direction. One widely cited field study attributed roughly 30% of leak emissions to valves and 24% to connectors, while a separate survey found connectors accounted for the largest share of individual leak detections. The exact split shifts by study and equipment population, but the pattern holds.
Equipment-Level Leak Points
Beyond valves and connectors, several other components leak routinely:
- Pump seals: dynamic seals that wear as shafts rotate
- Compressor packing: rings that seal around a moving piston rod, degrading with cycle count
- Flanges: static joints that loosen from vibration or thermal cycling
- Threaded connections: prone to corrosion and improper torque
Dynamic seals (pumps, compressors) fail more often simply because they're in constant motion. Static joints, on the other hand, leak through slower mechanisms: gasket degradation, loosened bolts, corrosion. Different failure modes require different maintenance strategies.
Sector Comparison
Zooming out from individual leak points to industry-level data shows where methane emissions concentrate across energy sectors:
| Source | 2024 methane estimate | Share of energy-sector total |
|---|---|---|
| Oil operations | ~45 Mt | Largest single segment |
| Natural gas operations | ~35 Mt | Second largest |
| Coal | ~40 Mt | Includes abandoned mines |
| Bioenergy | ~20 Mt | Mostly traditional biomass |
Oil and gas operations together outweigh coal on total methane volume (including venting and combustion losses alongside fugitive leaks), according to the IEA's Global Methane Tracker.
Here's the operational reality: these leak points are scattered across dozens of components per well, multiplied by hundreds of wells per basin. Manual detection, no matter how disciplined, is structurally incomplete against that surface area.
Why Fugitive Emissions Matter
Financial Impact
Every leaked molecule is lost, sellable product. Chasing leaks manually adds even more cost: mid-sized to large operators typically spend $1M to $5M+ annually on route-based site visits and manual detection alone, according to Well Checked Systems' internal cost data across operator engagements.
Add potential EPA and state fines, and the math gets worse fast.
Safety and Community Impact
VOC exposure carries real health risk. Research near active oil and gas sites found benzene concentrations approaching acute exposure guidelines, with modeled excess lifetime cancer risk in the range of 1 to 3.6 per 100,000.
Pressurized leaks also carry fire and explosion risk, particularly around compressor stations and wellheads where ignition sources sit close by.
How Are Fugitive Emissions Detected and Measured?
Traditional detection still leans heavily on EPA Method 21, a handheld VOC analyzer pressed against each component, paired with periodic leak detection and repair (LDAR) inspections, often quarterly. The IPCC's tiered reporting framework runs from Tier 1 (default emission factors) up to Tier 3 (direct measurement and site-specific modeling), with most operators still stuck at Tier 1 or 2.
The core limitation: periodic inspections are snapshots. A leak that starts on day two and gets fixed on day 89 might never register if the inspection window falls on day one or day ninety. Add the cost and time of pumper-route travel across remote, spread-out sites, and gaps widen further.
Optical Gas Imaging and Emerging Detection Technologies
Infrared optical gas imaging (OGI) cameras let inspectors visualize plumes invisible to the naked eye. Fenceline sensor networks and aerial technologies like DIAL push detection further, covering more ground between manual visits. The Alvarez study referenced earlier is a good example of the gap these tools expose: measurement-based approaches found emissions running well above what factor-based inventories predicted, largely because factor models miss abnormal, high-emitting conditions altogether. Even so, these tools still depend on scheduled flights, calibrated equipment, and trained crews, which caps how many sites get covered each cycle. Coverage improves, but the underlying snapshot problem doesn't fully disappear.
The Shift to Continuous, AI-Based Monitoring

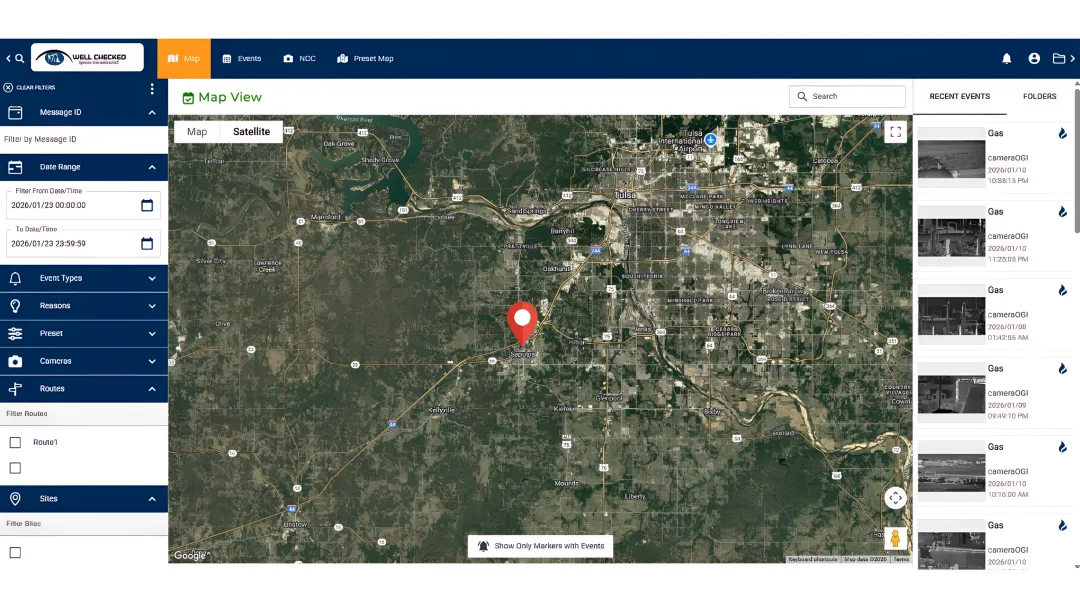

This is where the industry is heading. Well Checked Systems' Zensory.ai™ platform monitors sites continuously through three sensor types working together: high-resolution video (sight), acoustic anomaly AI (sound), and Long-Wave Infrared optical gas imaging (gas detection).
The architecture works across three tiers:
- Zentinal Ops™ delivers visual and acoustic equipment intelligence: high-resolution video, object recognition, acoustic anomaly detection, and actionable alerts.
- Zentinal Core™ handles multi-sensor detection. It learns a site's normal behavior over a two-day baseline, then filters false alarms and flags only true anomalies — the "needle in stacks of needles."
- Zentinal IQ™ handles quantification. It activates only after Core validates a real event, then calculates volume, duration, and rate for regulatory-grade reporting.
This model is deployed across a 220-site program in the Appalachian Basin, processing over 1,500 videos per site per day at production scale.
The economics matter too: Long-Wave Infrared cameras enable day and night detection at roughly one-third the cost of traditional mid-wave IR systems, making continuous, multi-sensor coverage economically viable across large well portfolios rather than a handful of flagship sites.
Regulatory Requirements for Fugitive Emissions
EPA's GHG Reporting Program, Subpart W, applies to facilities emitting 25,000 metric tons of CO2e or more annually, requiring equipment leaks, vented emissions, and flared emissions to be reported as distinct categories.
The newer methane rule, 40 CFR Part 60 Subpart OOOOb, sets monitoring cadence and repair deadlines that scale with site complexity:
| Site type | Routine monitoring |
|---|---|
| Single wellhead, small site | Quarterly audio, visual, olfactory (AVO) checks |
| Multi-wellhead site | Quarterly AVO plus semiannual OGI |
| Major production equipment | Bimonthly AVO plus quarterly OGI |
Repair windows follow detection method: 15 days for an initial repair attempt after an AVO (audible, visual, olfactory) detection, and 30 days for OGI or Method 21 detections.
EPA can approve continuous monitoring systems as alternative test methods under 40 CFR 60.5398b(d). Zentinal IQ™ is built to support this pathway, generating EPA-format compliance logs and state-agency inventory formats automatically.
Beyond federal rules, voluntary and investor-facing frameworks are tightening too:
- OGMP 2.0 Level 4/5 requires measurement-based, source-level reporting
- SASB and TCFD disclosure expectations apply to publicly traded E&Ps reporting Scope 1 emissions and methane intensity
- State-level rules in Colorado, New Mexico, and Pennsylvania often impose monitoring cadences stricter than federal minimums
Best Practices to Reduce Fugitive Emissions
Prioritize the biggest leak sources first. Given how consistently valves and connectors top leak surveys, focus repair budgets there before chasing lower-yield components. Where equipment replacement is warranted, low-emission (low-E) certified valves are worth evaluating against your specific leak profile.
Strengthen LDAR program rigor:
- Shorten inspection intervals where budget allows
- Standardize leak documentation across field teams
- Train staff consistently on leak classification criteria
Transition toward continuous, autonomous monitoring. This is the biggest structural shift available. Moving from routine site visits to an "operate by exception" model means field teams only respond when a validated anomaly appears, not on a fixed calendar.

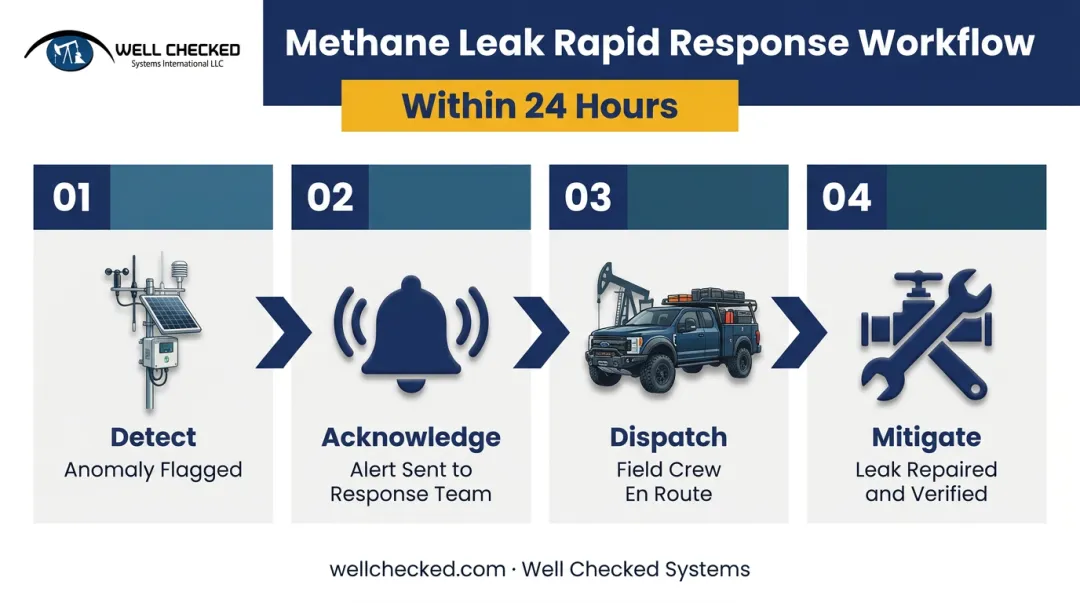

Platforms like Well Checked Systems' Zentinal Core™ support this shift by filtering false alarms and flagging only validated fugitive anomalies. With an acknowledge-dispatch-mitigate workflow built around near-real-time alerts, delivered through dashboard, email, SMS, and SCADA integration, operators can move from alert to active mitigation within 24 hours.
That speed matters directly for fine exposure: rapid response to a validated methane event can support a documented, timely response, while producing a continuous, defensible compliance record instead of a quarterly snapshot.
Frequently Asked Questions
What are fugitive emissions?
Fugitive emissions are unintentional leaks of gases or vapors, mainly methane and VOCs, from faulty equipment such as valves, seals, and connections. They differ from intentional venting or flaring.
What is the most common source of fugitive emissions?
Valves and connectors are consistently the leading source across upstream leak surveys, with some field studies attributing over half of total leak emissions to these two component types combined.
Is methane the primary gas in fugitive emissions?
Yes, methane dominates fugitive emissions from oil and gas equipment.
Is gas flaring considered a fugitive emission?
No. Flaring is an intentional combustion process used for safety or operational purposes, and it's measured and reported separately from unintentional equipment leaks under frameworks like EPA Subpart W.
How often should facilities inspect for fugitive emissions?
Traditional LDAR programs run on quarterly or semiannual cycles depending on site type. Evolving EPA rules now recognize continuous monitoring as an alternative pathway that catches leaks between those inspection windows.
What is the most cost-effective way to reduce fugitive emissions?
Continuous autonomous monitoring replaces expensive route-based site visits, which can cost mid-sized to large operators $1M to $5M+ annually, while catching leaks faster and reducing EPA fine exposure through rapid response.
