Introduction
The bearings in compressor at a wellsite starts producing a faint high-frequency whine that wasn't there last month. Three days before it seizes. Nobody's there to notice and even when they are the sound is difficult or impossible to hear with hearing protection. The repair is bigger than it had to be and the downtime was much longer.
That's the premise behind acoustic anomaly detection (AAD): using always-on microphones and AI to catch the sound of trouble before it becomes a visible, expensive problem. As machine learning models have gotten better at parsing complex audio, AAD has spread fast across manufacturing floors, wind farms, railways, and oil and gas infrastructure. Well Checked has a USPTO provisional patent filing covering its acoustic anomaly detection algorithm, originally developed for compressors, and has since extended that same algorithm and workflow to other pieces of equipment across oil and gas facilities.
This article breaks down how AAD actually works, the three types of anomalies it's built to catch, and where it's being deployed today. It also covers what to look for when evaluating a system for high-stakes environments like upstream oil and gas.
Key Takeaways
- AI compares live sound to a learned baseline, flagging deviations instantly
- Anomalies fall into three types: point, contextual, and collective
- AAD is non-invasive and cost-efficient, replacing manual routes with continuous monitoring
- Combining acoustic, visual, and gas-imaging data cuts false alarms and creates defensible records
What Is Acoustic Anomaly Detection and How Does It Work?
Acoustic anomaly detection uses microphones or acoustic equipment sensors paired with AI models to identify sounds that deviate from an asset's established "normal" operating profile. Instead of waiting for a scheduled inspection, the system listens continuously and reacts the moment something sounds wrong.
The Core Technical Workflow

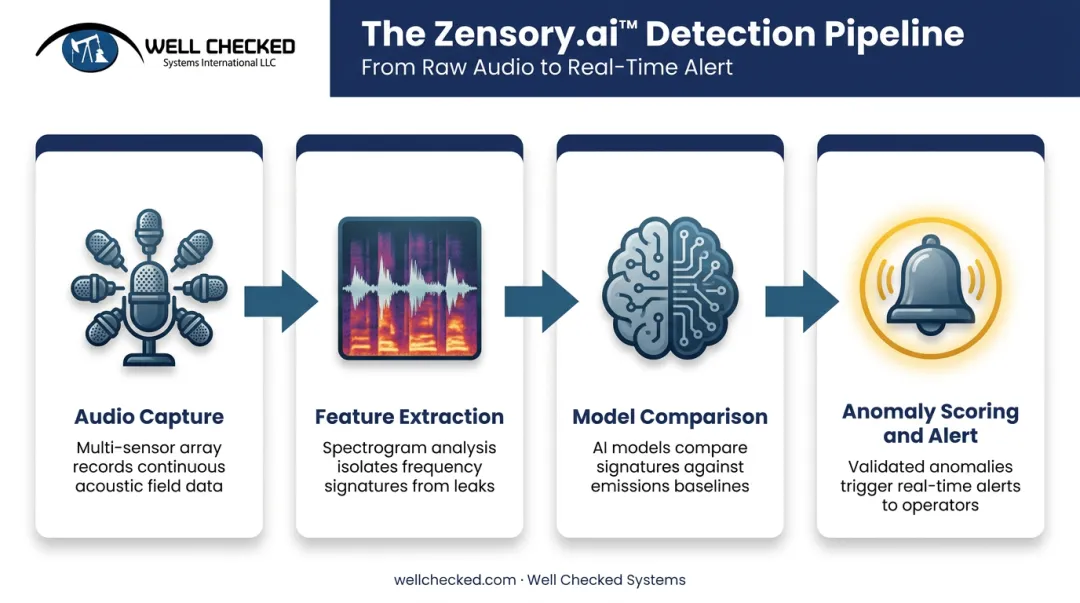

Most industrial AAD systems follow a similar pipeline:
- Audio capture: microphones record continuous or sampled audio from the target equipment
- Feature extraction: raw audio is converted into a spectrogram representation, commonly a mel-spectrogram, that highlights frequency patterns over time
- Model comparison: an AI model compares the extracted features against a learned baseline of normal sound
- Anomaly scoring: the model outputs a score; if it crosses a threshold, the system generates an alert
Why Unsupervised Learning Dominates
Here's the practical problem: abnormal-sound data is scarce. A pump might run normally for years before failing once. That makes it nearly impossible to build a labeled dataset of "bad" sounds for every failure mode.
The workaround is autoencoder-based unsupervised learning. The model trains only on normal operating sound, learning to reconstruct it accurately. When it encounters something abnormal, reconstruction error spikes, and that error becomes the anomaly score. The DCASE 2020 Challenge established this as the standard evaluation approach for industrial machine sound, precisely because normal-only training sidesteps the labeled-data problem.
Built for Remote, Hard-to-Reach Assets
That generalization advantage matters most on equipment operators rarely see in person. AAD requires zero physical contact with equipment, so a microphone can be mounted near a wellhead compressor or a remote pump jack and left running indefinitely. No technician needs to lay hands on the machine to know something's changed.
A real-world example: AWS ran a comparison using the MIMII fan-sound dataset, testing a normal-only autoencoder against a supervised spectrogram classifier. The autoencoder approach reached 88.5% accuracy using deep-learning reconstruction error, while the supervised classifier hit 99.8%, but only because it had labeled fault examples to train on.
That gap illustrates the core trade-off in the field: unsupervised methods generalize better to unknown faults, while supervised methods perform better when you already know what failure sounds like.
The Three Types of Anomaly Detection (and the Methods Behind Them)
Not every abnormal sound behaves the same way. Anomaly detection generally splits into three categories, and each demands different detection logic.
| Type | Definition | Acoustic Example |
|---|---|---|
| Point | A single instance that differs from the rest of the data | One sharp bang or grinding noise |
| Contextual | Normal in one setting, abnormal in another | A compressor's idle sound flagged because it's running at full load speed |
| Collective | A sequence that's only abnormal as a group | A repeating knock pattern that builds over hours |
Point Anomalies
These are the easiest to catch: a single loud, isolated event that stands out from the surrounding audio. Think of a metal-on-metal strike or a sudden pressure release. Detection usually relies on identifying a sharp spike in the anomaly score.
Contextual Anomalies
Context changes everything. A compressor screaming at full load is expected. That same sound profile showing up while the unit is supposedly idle? That's a red flag. Systems need to know the operating context, not just the raw sound, to catch these correctly.
Collective Anomalies
No single moment looks wrong here. It's the pattern over time that matters: a subtle rhythm shift across dozens of cycles that, individually, would pass as normal.

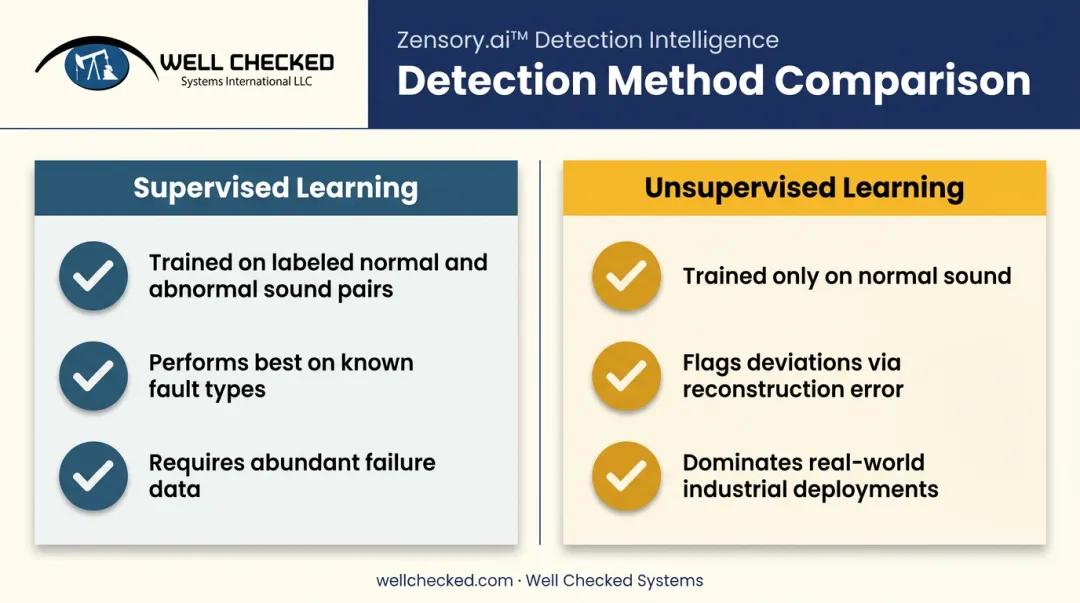

Supervised vs. unsupervised detection: Supervised models train on labeled pairs of normal and abnormal sound and tend to perform best on known fault types. Unsupervised models train only on normal sound and flag deviations through reconstruction error. Because abnormal-sound data is so hard to collect at industrial scale, unsupervised approaches dominate real-world deployments. Well Checked's Zensory.ai™ platform follows this same pattern, running an unsupervised AI Site Learning cycle at each site for roughly two days before it starts flagging deviations from that site's established normal sound.
Published research backs this up. Attention-CNN-LSTM architectures have been used for transformer voiceprint anomaly diagnosis. Ensemble autoencoder approaches evaluated on the DCASE 2020 benchmark reported a mean AUC around 95.8%, a useful reference point, though results vary significantly by machine type and site conditions.
Real-World Applications Across Industries
AAD isn't confined to one industry: the same core principle (learn normal sound, flag deviations) applies from factory floors to remote wellsites.
Manufacturing and Rotating Equipment
Conveyor belts, compressors, and pumps all develop distinct acoustic signatures as they wear. AAD systems monitor for:
- Bearing friction indicating lubrication failure
- Motor whine signaling overheating
- Belt slippage or misalignment noise
These signals trigger predictive maintenance alerts before a full breakdown.
Renewable Energy (Wind and Solar)
Wind turbine blades develop measurable acoustic changes from mechanical wear, cracking, or misalignment long before failure. Gearbox and drivetrain noise shifts similarly signal developing issues. On solar farms, transformer sound changes can indicate electrical faults developing inside otherwise inaccessible equipment.
Railway Infrastructure
Acoustic sensors mounted along tracks or on trains themselves listen to the sound of wheels passing over rail joints. Irregular pitch, energy, or entropy in that sound can indicate loose bolts, misalignment, or surface defects, often catching problems before visual inspection would.
Oil & Gas Pipelines and Wellsites
This is where acoustic abnormal-sound detection carries the highest stakes. Pipelines and wellsites are often remote, hazardous to physically inspect, and subject to regulatory scrutiny. Acoustic equipment sensors can pick up the hissing sound of a pressure leak or the shift in tone from a developing rupture.
One compressor-station study using a 30-channel explosion-proof microphone array and a frequency-Transformer model reported 99.09% accuracy and a 99.98% leak-detection rate, with a false-alarm rate under 0.2%. That's a strong result, but it's study-specific, tied to one station's leak sizes and noise conditions, not a universal guarantee.

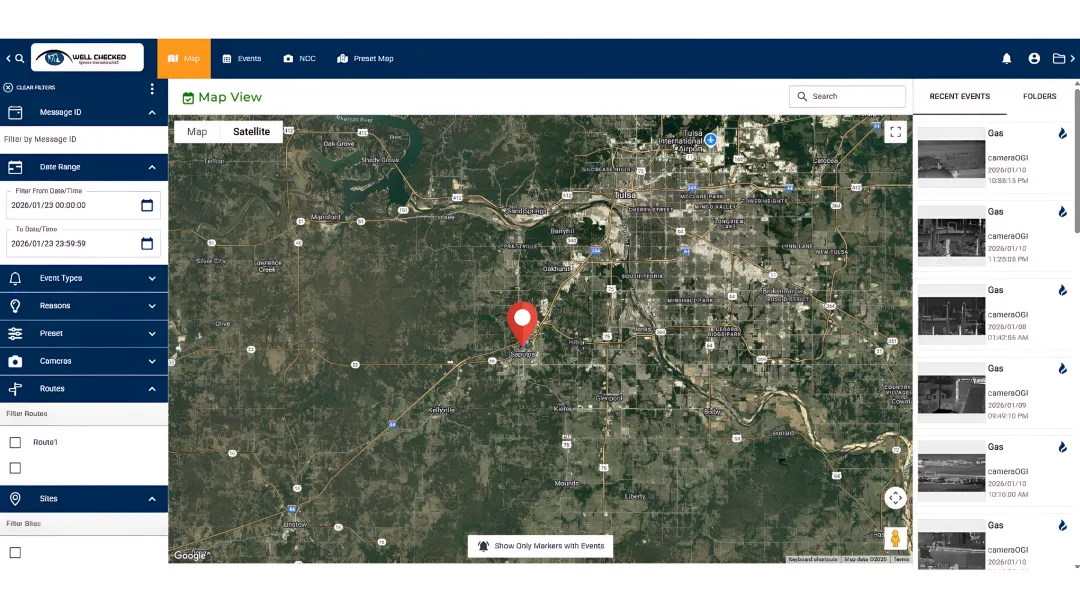

That's also why acoustic abnormal-sound detection rarely stands alone in the field. Platforms like Well Checked Systems' Zensory.ai™ pair acoustic anomaly AI with video and Long-Wave Infrared Optical Gas Imaging to distinguish true fugitive emissions from ordinary process sounds. Well Checked has a USPTO provisional patent filing for Detecting and Quantifying Fugitive Methane and Vapor Emissions Using Infrared Imaging and Machine Learning. This layered approach now runs across a 220-site deployment in the Appalachian Basin.
Benefits and Limitations of Acoustic Anomaly Detection Systems
Core benefits:
- Non-invasive — no contact with equipment required, ideal for hazardous or hard-to-reach assets
- Cost-efficient at scale — fewer physical inspection trips across large asset portfolios
- Real-time alerting — problems surface within minutes rather than at the next scheduled visit
Real limitations:
- Background noise interference — reverberation, overlapping machinery, and wind can degrade detection accuracy in busy industrial settings
- Training data requirements — each site needs enough "normal" sound data before the model can reliably spot deviations
- False positives — without contextual filtering, a normal but unusual sound (a passing vehicle, a maintenance crew) can trigger unnecessary alerts
Most of these limitations come down to context, not hardware. Multi-sensor systems that pair acoustic data with visual and thermal or gas-imaging inputs — including Well Checked Systems' Zensory.ai™ platform — let the system cross-check what it "hears" against what it "sees." This cross-referencing cuts false alarms compared to acoustic-only setups.
Choosing the Right Acoustic Anomaly Detection Tool for Your Operation
Not all AAD tools are built for the same job. Before committing, evaluate against these criteria:
- Sensor durability: Can it survive extreme temperatures, dust, and vibration at a remote site?
- Edge-computing capability: Does it keep working when the network drops, or does it depend on constant connectivity?
- Calibration time: How long does it take to learn a new site's normal soundscape?
- False-alarm filtering: Does it cross-reference multiple sensor types, or rely on sound alone?
Why Regulated Environments Need More Than Detection
For upstream oil and gas operators, catching an anomaly is only half the job. Regulators and investors expect defensible proof. Frameworks operators need to satisfy include:
- EPA's methane rule (40 CFR Part 60 Subpart OOOOb)
- OGMP 2.0 Level 4/5 measurement-based reporting
- SASB Oil & Gas E&P disclosure standards
- TCFD financial disclosures
A detection alert alone doesn't satisfy any of these. What's needed is quantified, auditable data tied to a validated event.

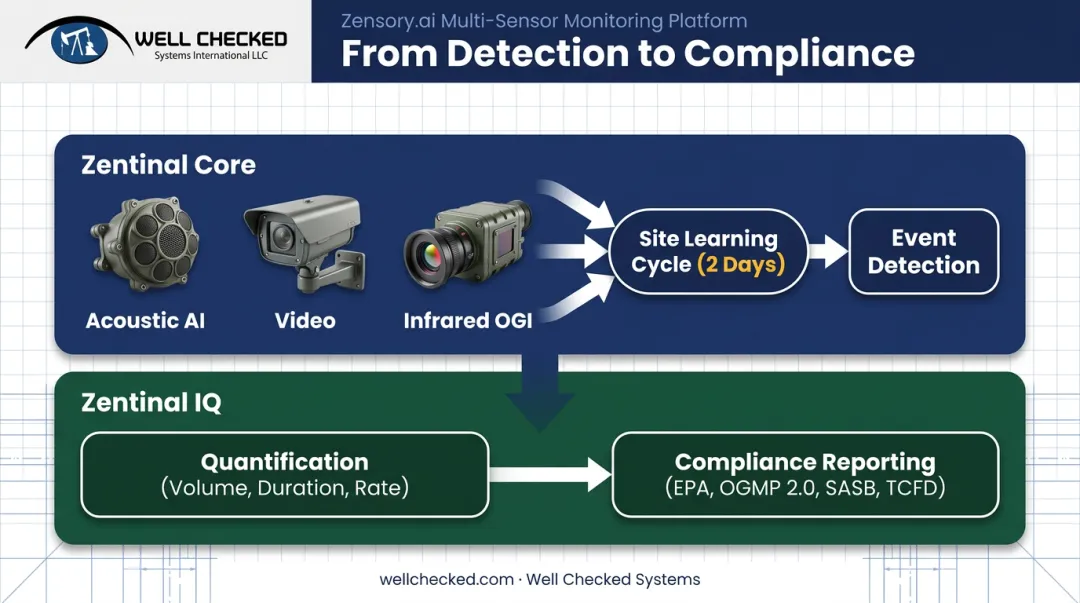

This is the gap Well Checked Systems built its three-tier architecture to close. Zentinal Ops™ delivers visual and acoustic equipment intelligence through high-resolution video, object recognition, and acoustic anomaly detection. Well Checked has a USPTO provisional patent filing covering acoustic anomaly detection technology, underpinning the capabilities delivered through Zentinal Ops™. Zentinal Core™ handles multi-sensor detection, fusing acoustic anomaly AI, video, and Long-Wave Infrared OGI with a site-specific AI learning cycle that takes roughly two days to establish a normal baseline before filtering out false alarms.
Zentinal IQ™ then activates only after Core validates an event, quantifying volume, duration, and rate to produce data formatted for EPA, OGMP 2.0, SASB, and TCFD submissions.
The whole system runs on onsite edge computing, meaning detection continues even when connectivity drops at a remote pad. Alerts queue for delivery via dashboard, email, SMS, and SCADA API the moment a connection restores.
For operators managing route-based inspection costs that can run into the millions annually across a large portfolio, this shift from periodic checks to continuous, exception-based monitoring is the actual value proposition: an anomaly only matters if the evidence behind it holds up to a regulator's review.
Frequently Asked Questions
What is acoustic abnormal-sound detection and how does it work?
Acoustic detection uses microphones and AI to compare real-time sound against a learned normal baseline. When the incoming audio deviates enough from that baseline, the system flags it as a potential equipment or emissions issue.
What are the three types of anomaly detection?
Point anomalies are single abnormal events, like one loud bang. Contextual anomalies are abnormal only given the situation, such as idle-speed sound during full load. Collective anomalies are abnormal patterns that emerge only across a sequence of sounds.
What is the best tool for anomaly detection?
It depends on the use case. For regulated industrial environments like oil and gas, multi-sensor platforms that combine acoustic, visual, and gas-imaging data with defensible reporting outputs generally outperform single-sensor, acoustic-only tools.
How accurate is acoustic anomaly detection compared to other monitoring methods?
Accuracy varies widely by model, asset type, and site noise conditions — published results range from roughly 88% to over 99% depending on the setup. Combining acoustic data with visual or gas sensing consistently improves reliability over acoustic-only systems.
Can acoustic anomaly detection work in noisy industrial environments?
Yes, though it requires noise-robust feature extraction and site-specific AI training. Learning each site's unique "normal" soundscape over a short calibration period allows the system to filter out ambient noise rather than mistake it for an anomaly.
How is acoustic anomaly detection used in oil and gas methane monitoring?
Acoustic sensors listen for abnormal hissing or leak-like sounds at wellsites and compressor stations. Well Checked's Zensory.ai platform pairs that acoustic signal with optical gas imaging so operators can validate true fugitive emissions and support compliance reporting.
