Upstream vs Midstream Methane Emissions

Methane leaks don't happen in one place or one way. A wellhead in the Permian and a compressor station in Appalachia lose gas for entirely different reasons, at different scales, and under different rules. Yet both feed into the same regulatory scrutiny and the same ESG scorecards.

Product loss and reporting obligations make this distinction urgent. EPA reports that methane accounted for 12% of total US greenhouse gas emissions in 2022, with oil and gas the largest industrial source, which is why segment-level accountability matters.

With EPA's Subpart OOOOb now in force and OGMP 2.0 Level 4/5 reporting expectations tightening, operators need to know exactly where their emissions originate — and why upstream and midstream sites demand different monitoring strategies.

Key Takeaways

• Upstream emissions come from wellsite tanks, pneumatics, compressors, and valves.
• Midstream emissions come from pipelines, compressor stations, and processing plants.
• Wellsites are dispersed and remote; midstream facilities are fewer but higher-volume.
• Multi-sensor coverage fits upstream; power-independent point-source detection fits midstream.
• Site count, remoteness, and regulatory tier determine the right approach.

Upstream vs Midstream Methane Emissions: Quick Comparison

Factor	Upstream	Midstream
Primary sources	Wellheads, tanks, pneumatics, compressors, valves/flanges	Compressor stations, gathering lines, processing plants, storage terminals
Scale & frequency	Thousands of remote sites, smaller per-site volumes	Fewer, larger facilities with concentrated emission points
Regulatory focus	EPA Subpart OOOOb well-site LDAR, state inventories	Compressor-station-specific EPA rules, pipeline safety regs
Monitoring challenges	Remoteness, site access, power/connectivity limits	High-pressure equipment complexity, continuous throughput demands
Typical mitigation	Continuous multi-sensor monitoring, LDAR programs	Nitrogen-based pneumatic replacement, compressor upgrades

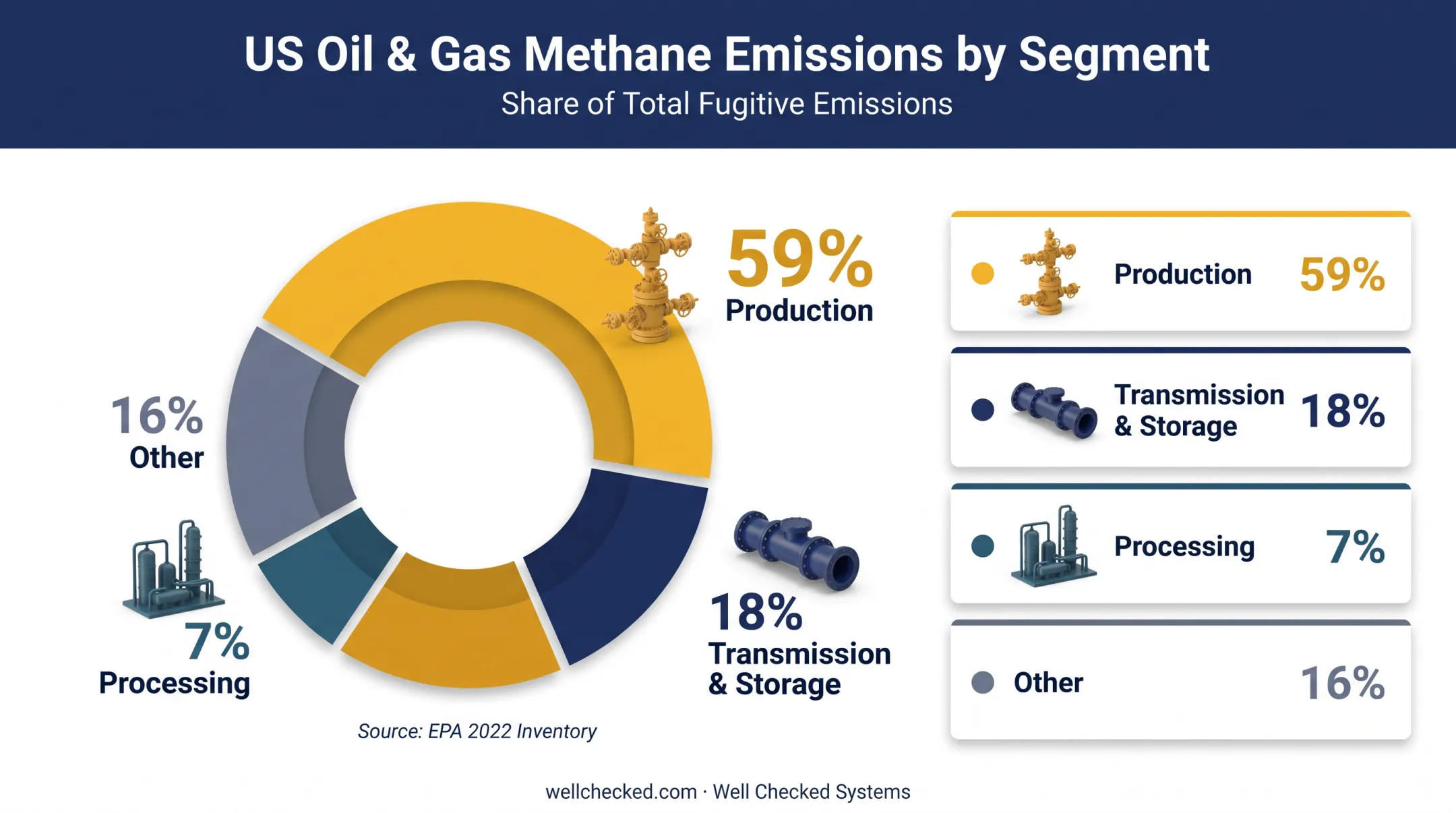

EPA's 2022 Inventory data shows the split: oil and gas production combine for roughly 59% of US oil-and-gas methane emissions, while transmission and storage account for 18% and processing another 7%, based on EPA's segment-level emissions estimates. Production is the largest source and the most fragmented one to manage.

What Are Upstream Methane Emissions?

Upstream covers exploration and production: everything at the wellsite itself. Fugitive and vented emissions become a real compliance and cost problem here because loss is dispersed across thousands of sites, not concentrated in a handful of facilities.

Core upstream sources include:

• Storage tank and thief hatch leaks
• Pneumatic device venting
• Unlit or malfunctioning flares
• Equipment leaks at valves and flanges
• Wellhead and casing vent leaks
• Compressor and rotating equipment emissions

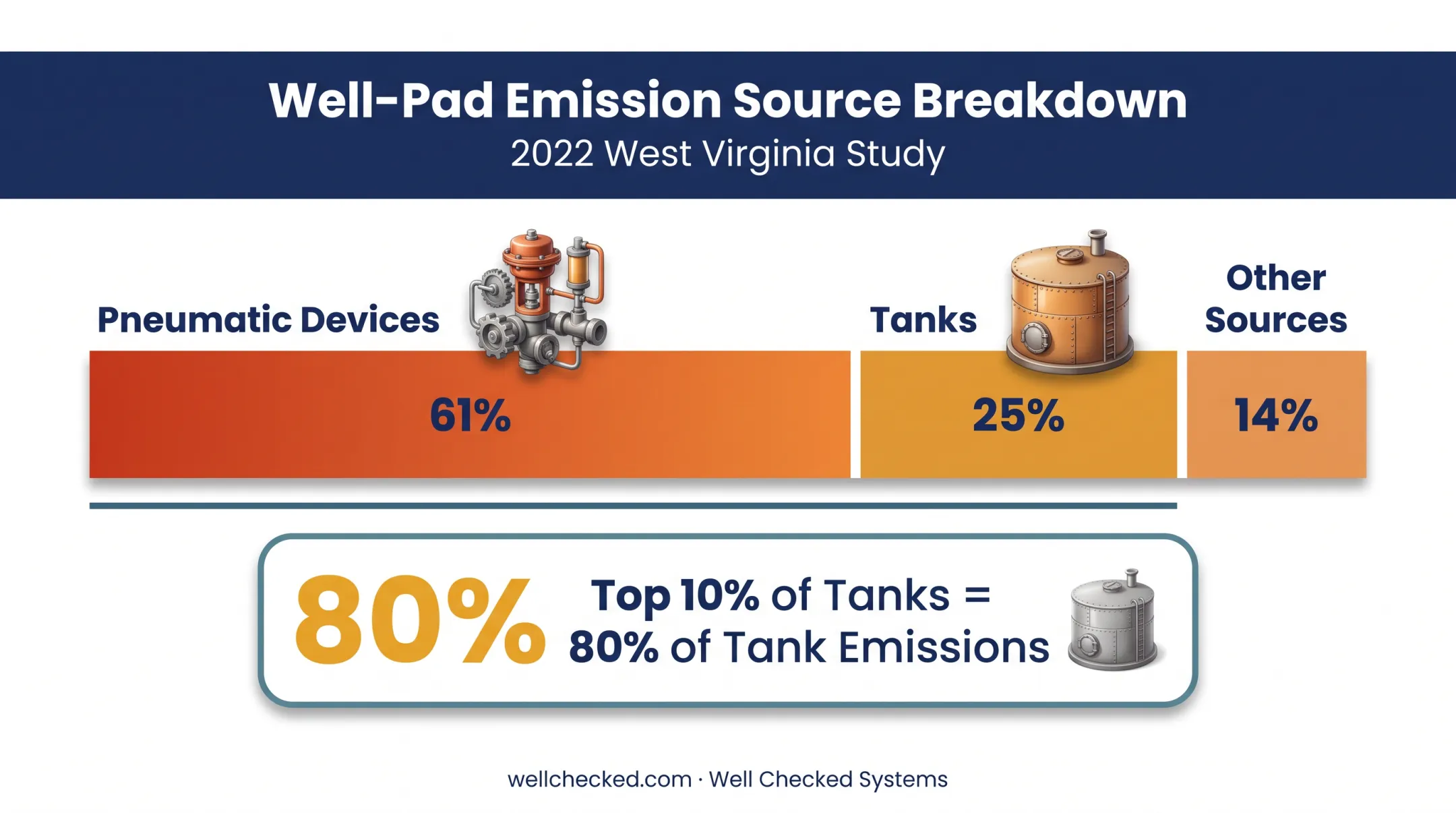

A 2022 peer-reviewed study of 15 West Virginia production sites measured 224 well-pad emission sources and found pneumatic devices contributed about 61% of total measured emissions, with tanks adding another 25%, according to research published in Science of the Total Environment.

Just the top 10% of highest-emitting tanks accounted for 80% of tank-related methane. A handful of malfunctioning units drove most of the loss.

That's the core problem: undetected leaks aren't just an environmental issue. They're lost product revenue, safety liability, and EPA fine exposure rolled into one.

Use Cases and Detection in Upstream Operations

Most mid-sized to large E&P operators still rely on route-based operator visits: a technician drives to each site on a schedule, checks equipment, and moves on. It's a periodic snapshot.

If a tank hatch starts leaking an hour after the operator leaves, nobody knows until the next scheduled visit—which could be days away.

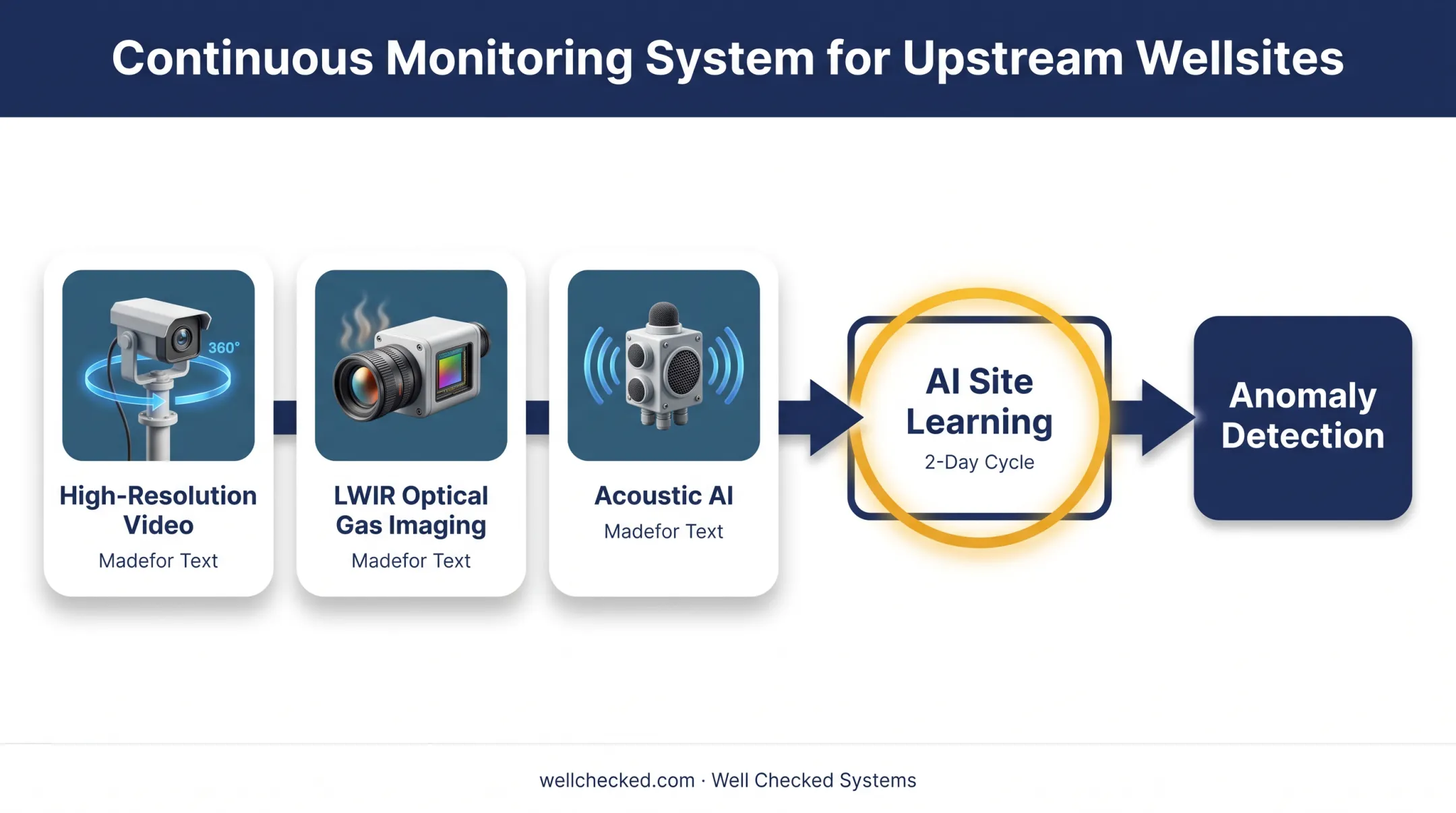

Well Checked's Zensory.ai™ platform takes a different approach: continuous, multi-sensor monitoring purpose-built for upstream wellsites. It combines:

1. High-resolution video with 360° coverage and AI object detection
2. Long-Wave Infrared Optical Gas Imaging (LWIR OGI) for continuous methane and VOC detection, day or night
3. Acoustic AI that flags abnormal equipment sounds before they become failures

The system runs an AI Site Learning cycle (roughly two days per site) to establish what normal operations look like. That baseline lets Zentinal Core™ filter out routine process emissions and flag only genuine fugitive anomalies.

This model is running as a continuous monitoring deployment in the Appalachian Basin, part of a broader remote upstream monitoring footprint.

What Are Midstream Methane Emissions?

Midstream covers transportation, storage, and processing — moving gas from the wellsite to the refinery or end user. Compressor stations and gathering pipelines sit at the center of this segment, and they're emission-intensive because they run continuously under high pressure.

Core midstream sources include:

• Compressor engine exhaust and methane slip
• Gathering system leaks
• Pneumatic controllers at metering and regulating stations
• Dehydration facility venting

The operational headache: midstream assets are often remote and off-grid, but run at high throughput around the clock. That combination makes continuous monitoring harder to power on-site, and more expensive to leave unaddressed if something fails.

Mitigation Approaches and the Detection Gap

Compressor stations and transmission pipelines rarely have the reliable electrical infrastructure that makes continuous monitoring straightforward. Retrofitting these sites for lower-emission operation is complicated further by the same power constraints.

Historically, midstream operators have leaned on nitrogen-based pneumatic replacement, electric compressors, and vapor recovery units to cut venting. EPA's Natural Gas STAR program documented cumulative reductions of 214.4 Bcf in transmission and 42.8 Bcf in gathering/processing since program inception, per EPA's historical accomplishments report. Targeted equipment upgrades deliver measurable reductions at scale.

The gap now is continuous detection. Point-source leak detection at compressor stations, gathering lines, and metering points is where midstream operators are increasingly investing.

Upstream vs Midstream: Which Monitoring Approach Fits Your Operation?

The right monitoring strategy depends on how your sites are built, powered, and reported:

• Site count and dispersion — hundreds of scattered wellsites need a different approach than a handful of centralized facilities
• Power availability — grid access at a processing plant versus off-grid at a remote wellpad
• Regulatory reporting tier — OGMP 2.0 Level 4 versus Level 5, SASB, TCFD obligations

Situational guidance:

• Operators with many remote wellsites benefit most from continuous, autonomous multi-sensor monitoring such as Zensory.ai™, with onsite edge computing that keeps working when connectivity drops.
• Midstream operators with centralized compressor and processing assets often prioritize point-source leak detection on grid-powered or facility-powered continuous systems.

Many operators need both. A unified continuous-monitoring strategy across the value chain — not only upstream or only midstream — strengthens OGMP 2.0 and EPA reporting posture. Inspectors and investors increasingly want the full picture, not a partial one.

Real-World Example: Continuous Monitoring in Action

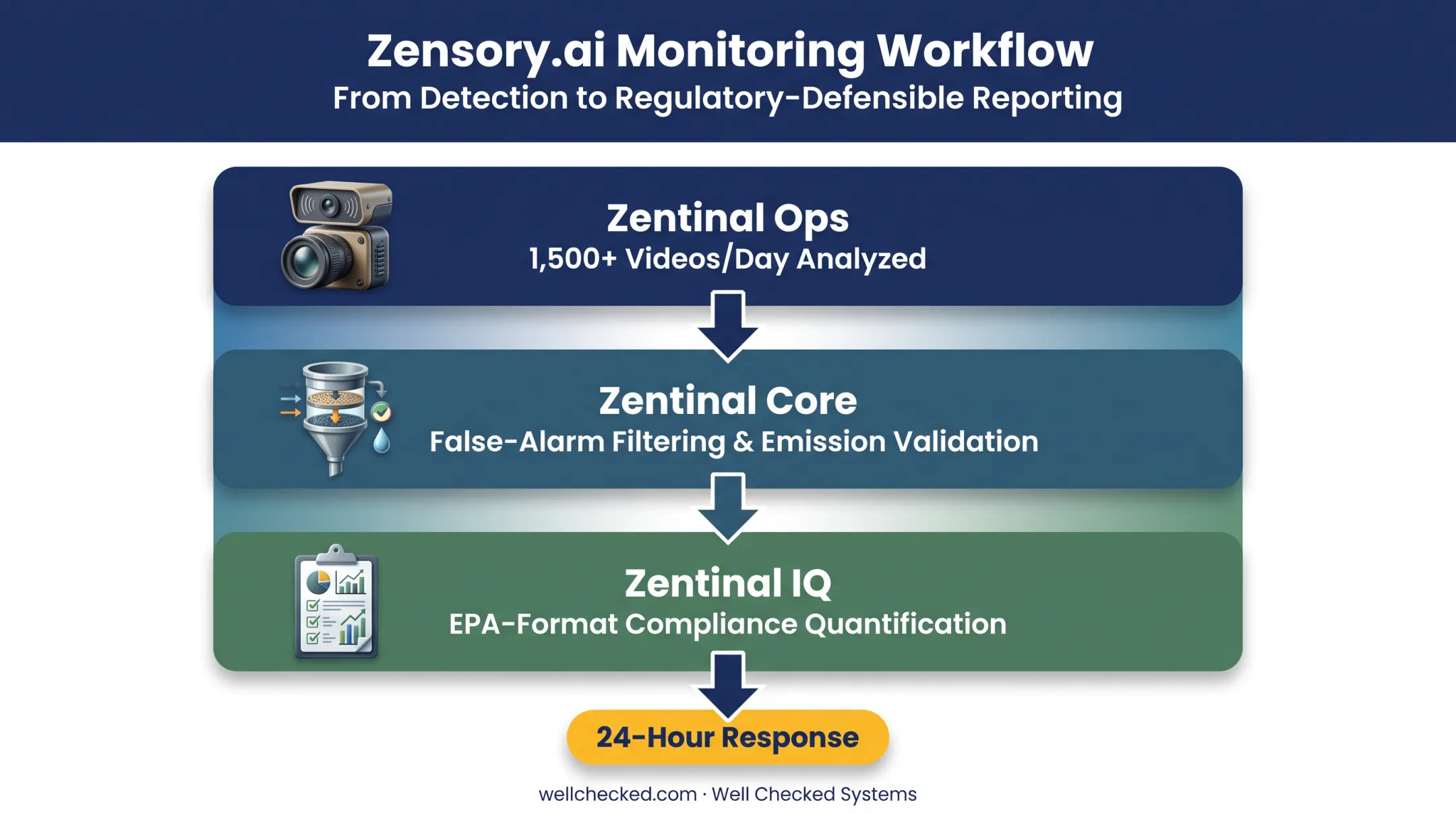

Well Checked's continuous monitoring deployment in the Appalachian Basin illustrates what the shift from periodic to continuous monitoring looks like in practice. The challenge: Route-based operator visits are the industry norm for mid-sized to large operators, and they're expensive. General industry figures put annual route-based site-visit costs at $1 million to $5 million or more for operators managing large upstream portfolios. Beyond cost, the fundamental flaw is timing: an operator visit is a snapshot. Intermittent leaks that start and stop between visits go undetected, and by the time a leak is caught, an EPA-defensible response is already delayed. The shift: Across that deployment, the platform runs on three tiers:

• Zentinal Ops™: visual and acoustic equipment intelligence with high-resolution video, object recognition, and acoustic anomaly detection
• Zentinal Core™: multi-sensor detection that filters false alarms and validates true fugitive anomalies
• Zentinal IQ™: quantifies validated events for regulatory-defensible EPA-format compliance logs This structure enables what Well Checked calls "operate by exception": field teams respond to validated alerts instead of driving predetermined routes regardless of whether anything's wrong. The design target is an acknowledge-dispatch-mitigate response within 24 hours of a validated event. Well Checked hasn't published a program-specific percentage for false-alarm reduction or dollar savings from the Appalachian Basin deployment. What's documented is the operating model itself: a two-day AI learning cycle per site, continuous multi-sensor coverage, and a compliance-ready quantification layer built to withstand EPA and OGMP 2.0 scrutiny. The takeaway: Operators who move from periodic to continuous monitoring catch more leaks and secure faster, better-documented compliance outcomes that hold up when regulators ask questions. Want to see how a three-tier monitoring approach could work across your upstream portfolio? Well Checked offers a fixed-fee pilot program to evaluate fit before full deployment.

Conclusion

Upstream and midstream methane emissions differ in almost every practical sense: where they originate, how concentrated they are, and what equipment drives them. The underlying compliance challenge is the same. Periodic inspection leaves gaps, and gaps mean risk.

Operators who invest in continuous, defensible monitoring matched to their specific asset mix come out ahead on three fronts:

• Lower regulatory exposure
• Reduced operating costs from fewer unnecessary site visits
• Stronger positioning for OGMP 2.0 and ESG reporting obligations that continue to expand

Frequently Asked Questions

What is the difference between upstream and midstream gas?

Upstream refers to exploration and production: wellsites where gas and oil are extracted. Midstream covers transportation, storage, and processing between the wellsite and the refinery, including pipelines and compressor stations.

What is the difference between upstream and downstream emissions?

This is a separate concept from oil & gas value-chain segments. Under the GHG Protocol's Scope 3 framework, "upstream" and "downstream" describe indirect emissions before and after a company's own operations — not the same as the industry's upstream/midstream/downstream terminology.

Which stage of the oil and gas value chain produces the most methane emissions?

Based on EPA's 2022 Inventory shares, production (upstream) accounts for roughly 59% of US oil and gas methane emissions, compared to 18% for transmission/storage. Figures vary by study and operational profile, so consult current EPA and OGMP data for your specific context.

How do operators detect methane leaks in remote upstream locations?

Continuous multi-sensor monitoring (combining video, acoustic sensing, and optical gas imaging) is replacing periodic manual operator-route surveys as the modern standard for remote wellsites.

Why is midstream methane monitoring more difficult than upstream?

Midstream facilities like compressor stations often lack reliable grid power and run continuously under high pressure, making power-dependent monitoring retrofits harder to justify and install.

What regulations apply to upstream vs midstream methane emissions?

EPA Subpart OOOOb applies to new, modified, and reconstructed sources across both segments but with different monitoring requirements. OGMP 2.0 Level 4/5 reporting expectations apply broadly across the value chain.
