Upstream operators now face EPA's methane rule (40 CFR Part 60 Subpart OOOOb), OGMP 2.0 reporting tiers, and mounting ESG disclosure pressure from SASB and TCFD frameworks. Misreading sensitivity here isn't an academic mistake. It's a compliance risk and a real barrier to cutting emissions.
This article breaks down what sensitivity actually means, how it varies across technologies, how it's measured and validated, and where operators commonly misjudge it.
TL;DR
- Sensitivity means nothing without a stated Probability of Detection (PoD)
- Detection ranges span ppm lab sensors, %LEL fixed detectors, and kg/hr aerial or continuous systems
- Wind, distance, and occlusion degrade real-world sensitivity versus lab claims
- Multi-sensor, AI-filtered monitoring preserves sensitivity while cutting false alarms
- Right-sized sensitivity underpins defensible EPA and OGMP 2.0 reporting
What Sensitivity Represents in Methane Detection
Detection sensitivity is the minimum emission rate or concentration a system can reliably identify, at a stated confidence level. That last part matters more than the number itself.
Sensitivity works two ways:
- As an input: the design spec engineers build into a sensor or system
- As an output: the real-world performance validated through independent testing
Those specs only make sense in the right units:
- Concentration-based sensitivity (ppm, %LEL, %volume): used by point sensors and fixed detectors
- Emission-rate sensitivity (kg/hr): used by remote, aerial, and continuous monitoring platforms
These units aren't interchangeable. A ppm reading tells you concentration at one sampling point. A kg/hr figure describes total source emission rate, shaped by wind, plume geometry, and the retrieval method.
None of it means much without probability of detection (PoD). A vendor claiming "detects down to 2 ppm" without a stated probability is describing a best-case, low-confidence event, not a repeatable performance guarantee.

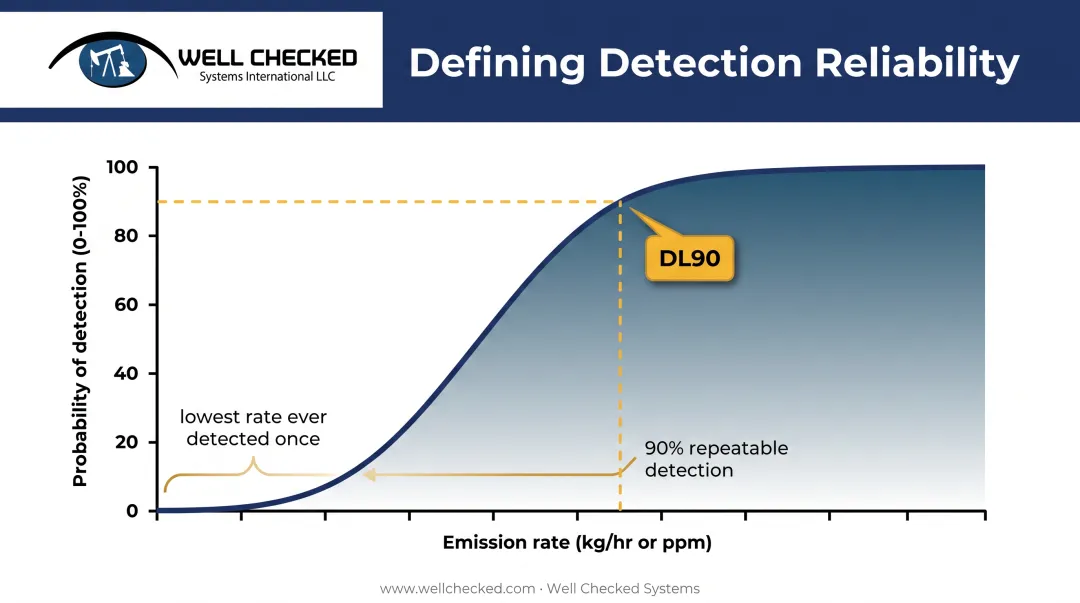

The industry's accepted benchmark, DL90, is the emission rate at which a system reaches 90% PoD—roughly nine detections out of ten across varied conditions. That is a different claim than "lowest rate ever detected once."
Factors That Influence Sensitivity in Real-World Operation
Lab and controlled-release sensitivity numbers rarely survive contact with an actual wellsite. Field conditions introduce variables no datasheet can fully capture.
Key degrading factors:

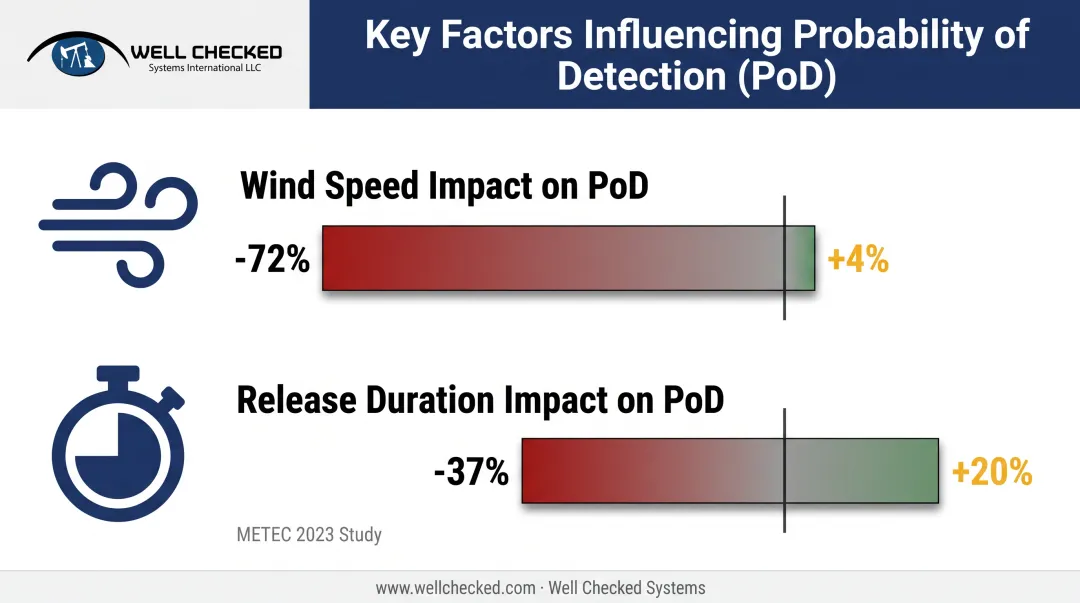

- Wind speed and dispersion — a 2023 METEC single-blind study found that changing wind speed alone shifted estimated probability of detection (PoD) by -72% to +4% across tested systems
- Sensor placement and line-of-sight — obstructions, distance from source, and mounting angle all reduce effective range
- Sensor drift or saturation — performance degrades over time from aging, poisoning, or environmental exposure
- Monitoring frequency — continuous coverage catches transient leaks that periodic snapshots miss entirely
- Site-specific "normal" emissions — venting and pneumatic controller cycles can mask true fugitive leaks or trigger false positives
Release duration matters too. The same METEC study found duration alone shifted PoD estimates by -37% to +20%. Two sensors with identical lab specs can perform very differently once they're mounted at different distances and wind regimes.
Well Checked's Zensory.ai™ platform addresses these variables with a site-specific AI learning cycle (roughly two days) at each new deployment. Instead of applying a fixed lab threshold everywhere, it builds a baseline of normal emissions for that site's equipment, layout, and process activity before flagging anomalies.

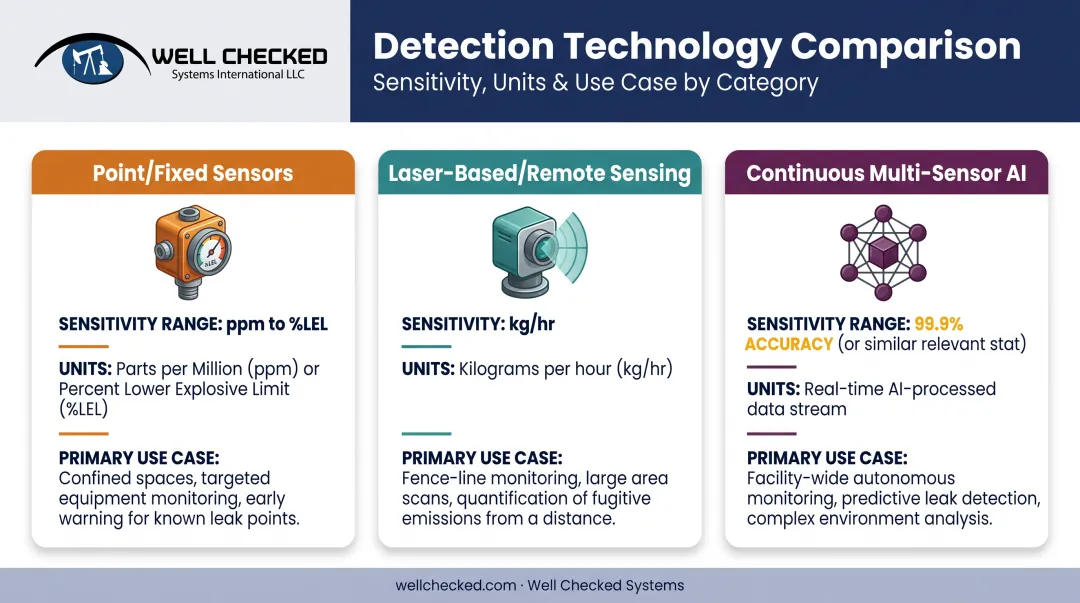

Range of Sensitivity Across Detection Technologies
Sensitivity ranges depend entirely on sensor type and how it's deployed. Here's how the major categories stack up.
Point/Fixed Sensors (NDIR, Catalytic, Semiconductor)
These typically operate in the tens of ppm to 100% LEL range. Research examples span from below 100 ppmv for NDIR sensors to 20-100% LEL for catalytic types.
They're built for close-proximity safety alarms, not facility-wide quantification. A catalytic sensor can read falsely low under oxygen deficiency or in the presence of silicone and sulfur contaminants. That limits reliability in continuous field use.
Laser-Based and Remote Sensing (TDLAS, Gas Mapping LiDAR, OGI)
These express sensitivity as kg/hr paired with a PoD figure. EPA's alternative-screening tiers under OOOOb use tiers like 10 kg/hr at 90% PoD, and continuous systems must detect at least 0.40 kg/hr.
The wind-sensitivity relationship shows up clearly in controlled testing. A 2020 METEC study found experienced OGI operators reached PoD90 at roughly 3.29 slpm (about 7 scfh) under calm conditions. Experience level alone shifted detection rates from 45% for novice surveyors to 75% for experienced ones.
Continuous Multi-Sensor AI Monitoring
Single-sensor systems each have blind spots:
- Video misses odorless, invisible leaks
- Gas imaging can be blocked by line-of-sight obstructions
- Acoustic sensing can't detect a slow drip-style leak with no audible signature
Combining all three closes those gaps. Well Checked's Zentinal Core™ fuses high-resolution video, LWIR optical gas imaging, and acoustic AI.
Site-learned baselines then separate expected process activity (venting, pneumatic cycling) from genuine fugitive anomalies, without dropping the detection threshold so low that operators drown in false alerts.
Key Technical Properties That Define Sensitivity
A single ppm or kg/hr number is incomplete. Real sensitivity claims rest on three supporting properties.
Probability of Detection (PoD)
PoD is the statistical likelihood of catching a leak of a given size under stated test conditions. A "minimum detection limit" claim without PoD is close to meaningless. It might reflect one lucky detection, not repeatable performance. DL90 (90% PoD) is the industry's accepted defensible standard.
Repeatability and Drift
Sensor performance varies scan to scan and degrades with age or environmental exposure. A sensor rated at a certain sensitivity on installation day won't necessarily perform identically 18 months later without recalibration.
False Alarm Discrimination
Higher sensitivity generally means more false positives, unless there's a filtering layer validating anomalies before they alert. This is the practical trade-off every operator faces:
- Turn sensitivity up → catch smaller leaks → risk alert fatigue from normal process noise
- Turn sensitivity down → fewer false alarms → risk missing regulatory-significant leaks
Well Checked's Zentinal Core™ resolves this trade-off by cross-referencing video, acoustic, and gas-imaging signals. Operators get alerted on validated anomalies, not every routine emission event.
How Sensitivity Is Specified, Measured, and Validated
Sensitivity shows up in two very different contexts: as a procurement spec on a datasheet, and as an ongoing operational check.
Datasheet vs. independently tested values:
Vendor datasheets typically list rated sensitivity in ppm, %LEL, or kg/hr. Independent controlled-release studies, run by facilities like METEC or Stanford's Environmental Assessment and Optimization Group, validate whether that rating holds up.
A 2023 single-blind METEC study of continuous monitoring systems found DL90 values ranging from 2.7 to 30.1 kg/hr across eight tested systems. That's a massive spread for products that may have looked similar on paper.
Verification methods include:
- Controlled-release testing with hidden release timing and rates
- Regular calibration cycles against known reference gas
- Field validation audits comparing deployed performance to lab claims
Lab conditions ≠ field conditions. A sensor validated at ideal wind, distance, and temperature won't necessarily hit the same numbers on an active wellsite with variable terrain and weather.
Regulatory-defensible reporting for EPA submissions, OGMP 2.0 Level 4/5, SASB, and TCFD requires documentation of both the sensitivity claim and the validation methodology behind it. Measurement-based quantification tools close that gap.
Well Checked's Zentinal IQ™ quantifies emissions only after Zentinal Core™ validates an event. It generates EPA-format compliance logs and OGMP 2.0 Level 4/5 reporting outputs that support the documentation trail.
Implications of Misjudging Sensitivity Requirements
Getting sensitivity wrong cuts both ways, and both directions cost money.
Under-specifying sensitivity:
- Risks missing regulatory-significant leaks entirely
- Creates exposure to EPA fines and enforcement action
EPA's 2024 Marathon settlement shows the scale of that risk: a $64.5 million penalty plus roughly $177 million in required compliance measures, including more frequent inspections.
Over-specifying sensitivity:
- Chasing the lowest possible ppm number drives unnecessary hardware and monitoring costs
- Produces false-alarm fatigue without proper filtering, without cutting real emissions
- Teams start ignoring alerts altogether, which defeats the purpose
Compliance and audit risk: Submitting MDL-only claims (lowest detected rate, no PoD) instead of PoD-backed data creates real audit exposure. Regulators and auditors increasingly expect documented probability-of-detection figures, not just a headline sensitivity number. That distinction can decide whether a compliance submission holds up under review.
Frequently Asked Questions
What types of sensors are used for sensitive methane detection?
Point sensors (NDIR, catalytic, semiconductor) cover close-range safety alarms. Laser-based TDLAS measures concentration along a path. Multi-sensor AI platforms combine video, acoustic, and infrared OGI for continuous facility-wide coverage.
Is 2.5% methane equal to 50% LEL?
Yes. Methane's lower explosive limit is 5% by volume in air, so 2.5% volume equals exactly 50% of the LEL. This distinction matters because alarm thresholds are often set as a percentage of LEL, not raw concentration.
What is considered a "sensitive" methane detection sensitivity?
There's no universal threshold; it depends on the application. EPA's OOOOb rule uses a 10 kg/hr tier at 90% PoD as one regulatory reference point, plus a 0.40 kg/hr minimum for continuous systems.
Why do two methane sensors with the same ppm rating perform differently in the field?
PoD, wind conditions, and sensor placement create real variance even between sensors with identical lab specs. In field conditions, wind speed alone has shifted estimated PoD by as much as 72 percentage points.
How does continuous monitoring improve on periodic LDAR inspections for sensitivity?
Continuous, multi-sensor monitoring captures transient leaks that occur between quarterly inspection snapshots, improving the effective likelihood of catching a leak over time rather than relying on a single point-in-time check.
Can false alarms be reduced without lowering detection sensitivity?
Yes. AI-based, multi-sensor filtering cross-validates anomalies across video, acoustic, and gas-imaging streams simultaneously. This maintains high sensitivity to true leaks while cutting false positives from routine process activity.
