Introduction
Oil and gas operations don't cluster conveniently in one place. A single operator might manage hundreds of wellheads, tank batteries, compressor stations, and pipeline segments scattered across remote terrain — sites where sending a person every time something needs checking is impractical, expensive, and far too slow.
SCADA has been the answer to that problem for decades. According to Grand View Research, the oil and gas SCADA market reached $4.1 billion in 2025 and is projected to hit $6.7 billion by 2033.
Yet widespread deployment doesn't mean widespread understanding. Many operators run SCADA daily without a clear picture of how its layers interact, where its coverage ends, or why certain monitoring gaps keep showing up.
This guide breaks down what oil and gas SCADA actually is, how each of its layers works in practice, where it's deployed across the value chain, and — critically — what it was never designed to do.
Key Takeaways
- SCADA is a four-layer system: field sensors → RTUs/PLCs → communications network → host/HMI
- Enables real-time monitoring and remote control of equipment across remote, widely dispersed wellsites
- Upstream, midstream, and downstream operations each use SCADA differently, with different priorities
- SCADA tracks process variables — pressure, flow, temperature — but cannot detect fugitive methane emissions
- Meeting EPA methane rules (40 CFR Part 60 Subpart OOOOb) requires emissions data that SCADA cannot provide on its own
What Is Oil and Gas SCADA?
Supervisory Control and Data Acquisition (SCADA) is a combined hardware and software architecture that collects real-time data from distributed field instruments and transmits it to a central control system. From there, operators can monitor conditions and issue commands remotely, with no one physically present at the site.
The core problem it solves is geography. Oil and gas assets spread across hundreds of miles of remote terrain where daily physical inspection is impractical, expensive, and too slow to catch developing problems. SCADA replaces manual rounds with continuous electronic visibility.
What SCADA Is — and Isn't
A few important clarifications:
- SCADA is an integrated stack of components — sensors, controllers, communications infrastructure, and software — not a single device or product. All layers must work together.
- Unlike a Distributed Control System (DCS), which runs tight control loops in continuous-process environments like refineries, SCADA is designed for geographically scattered field sites where centralized data acquisition is as important as control. NIST draws this distinction explicitly in its operational technology security guidance.
- SCADA isn't purely passive. It can actuate a valve remotely, not just read its position. That two-way control capability is what separates it from simpler telemetry systems.
Four SCADA Deployment Types in Oil and Gas
The four common deployment types vary significantly in cost and complexity:
| Type | Description | Common Users |
|---|---|---|
| Full-stack enterprise SCADA | Licensed platform software; on-premises or hybrid | Large operators with dedicated controls teams |
| Hosted/SaaS SCADA | Vendor-managed host infrastructure; per-site fee | Mid-sized operators without in-house IT |
| Purpose-built upstream SCADA | Designed specifically for wellhead and production operations | E&P-focused operators |
| RTU-centric field SCADA | Minimal host software; simple monitoring only | Conventional well sites, older fields |
How Does Oil and Gas SCADA Work?

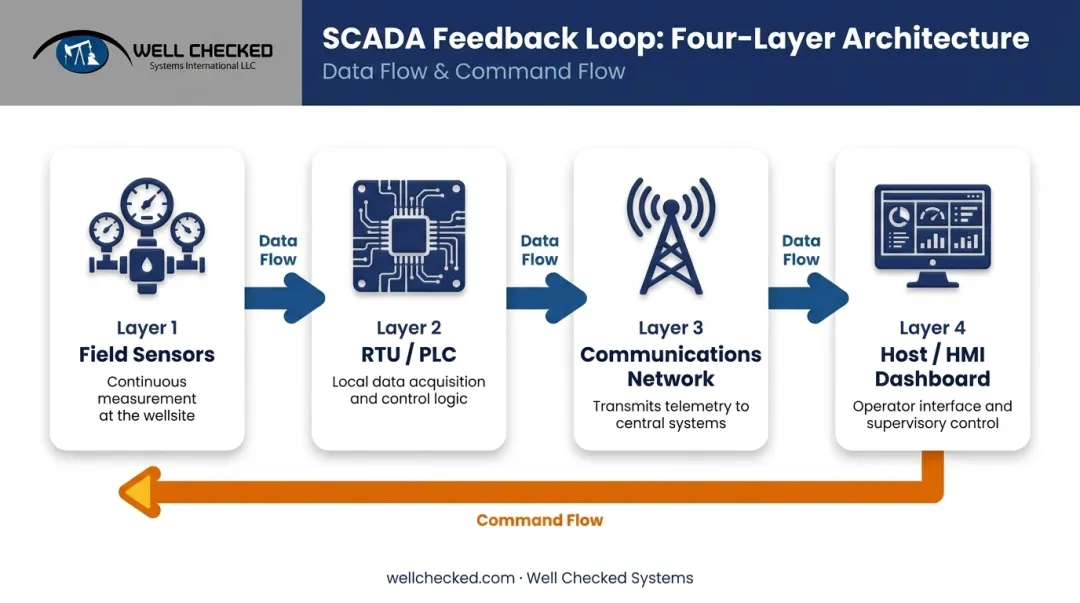

SCADA functions as a continuous feedback loop. Sensors generate data, field controllers process it locally, a communications network carries it to a central system, operators see it on a dashboard, and commands flow back in the other direction. Each layer has a distinct role and a distinct failure mode.
Field Instrumentation — The Sensing Layer
Sensors and transmitters at wellheads, tank batteries, separators, compressor stations, and pipelines measure:
- Pressure (wellhead, line)
- Temperature (process fluid, equipment)
- Flow rate and volume (gas, liquid, differential pressure)
- Tank levels (fluid levels, ullage — the empty space above the fluid line)
- Equipment runtime (motor hours, pump cycles)
These sensors poll or transmit at defined intervals — seconds to minutes depending on the variable and the criticality of the measurement. A pumper making once-daily rounds captures a single snapshot; SCADA captures hundreds of readings per site per day.
RTUs and PLCs — The Local Processing Layer
Remote Terminal Units (RTUs) and Programmable Logic Controllers (PLCs) sit at the site and handle local processing before any data leaves the field. They receive instrument signals, execute pre-programmed logic (close a dump valve if tank level exceeds a setpoint, for example), and package data for transmission.
RTUs are common at remote wellheads where simplicity and ruggedness matter. PLCs appear more often at facilities with complex instrumentation requiring tighter logic and I/O control. On multi-well pads, a single RTU is commonly used to aggregate flow, pressure, and volume data from several wellheads before sending it upstream.
If an RTU goes offline — power loss, hardware fault, communication failure — that entire site goes dark in the SCADA system. RTU reliability isn't a technical footnote; it's a core operational risk that drives system design and maintenance practices.
Communications Network — The Transmission Layer

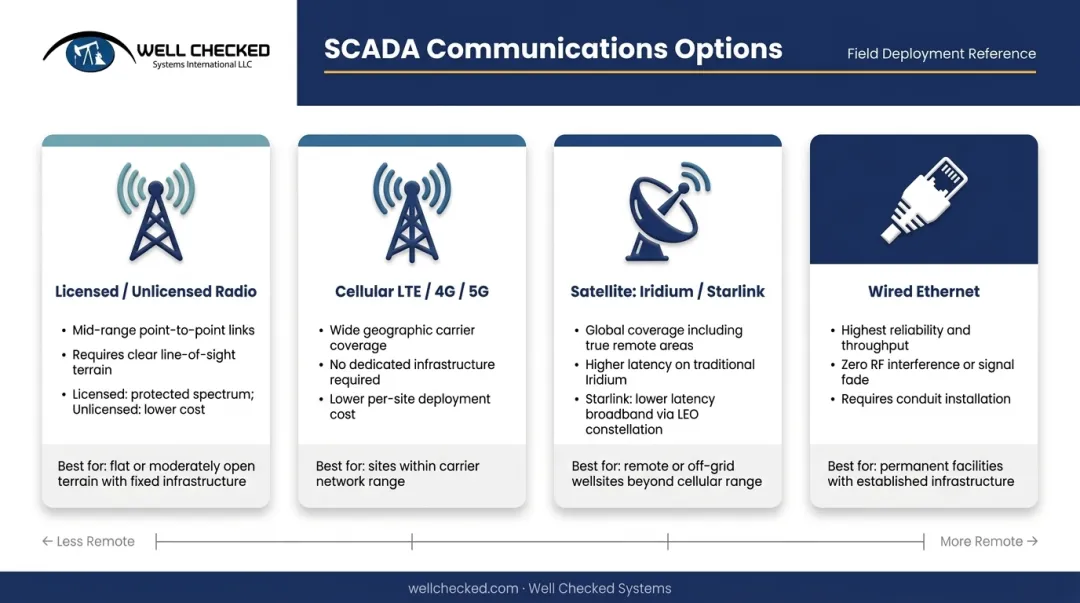

Data has to get from the field controller to the host somehow. Common options include:
- Licensed and unlicensed radio — cost-effective for mid-range distances, reliable in clear terrain
- Cellular (LTE/4G/5G) — widely used where carrier coverage exists; lower infrastructure cost
- Satellite (Iridium, Starlink) — critical for remote areas beyond cellular coverage
- Wired Ethernet — used at facilities where permanent infrastructure exists
The right choice depends on site remoteness, data volume, latency requirements, and monthly cost tolerance. Many operators run hybrid configurations: cellular primary, radio or satellite as backup.
Communications is where most SCADA failures occur. A dropped cellular connection or failed radio link breaks the data chain regardless of how well sensors and host software are functioning. Network redundancy and link monitoring aren't optional extras for critical sites — they're basic risk management.
Host System and HMI — The Visualization and Control Layer
The host system is where all that field data arrives, gets stored, and becomes visible to operators. A SCADA server — on-premises or cloud-hosted — ingests the data stream from all sites, logs it in a historian for trending and analysis, and feeds it to the Human Machine Interface (HMI): the graphical dashboard where operators see what's happening across their asset portfolio.
The control function runs in the other direction. Operators can issue commands from the HMI back through the network to the RTU or PLC, starting a pump, adjusting a setpoint, or shutting in a well, without dispatching anyone to the field.
Alarming sits on top of this layer. Operators configure threshold-based alarms (high tank level, low suction pressure, compressor trip) that fire to the console, email, or mobile device.
The ISA-18.2 standard governs alarm management as a full lifecycle process — philosophy, rationalization, monitoring, and audit. PHMSA has noted that excessive alarms can overwhelm controllers, with too many low-priority alerts firing before high-value ones get addressed.
Where SCADA Is Used in Oil and Gas Operations
SCADA appears across all three segments of the industry, but its priorities differ at each level.
Upstream
Wellheads, tank batteries, rod pumps, ESPs, gas lift systems, and saltwater disposal wells all rely on SCADA for:
- Production rate and equipment runtime tracking
- Wellhead pressure and fluid level monitoring
- Remote well shut-in or pump restart without field dispatch
Midstream
Pipeline operators monitor flow rates, line pressures, and valve positions across hundreds of miles of gathering and transmission infrastructure. Overpressure detection and automated block valve control are safety-critical functions that depend on SCADA reliability. At the largest transmission operators, a single SCADA deployment can span tens of thousands of pipeline miles and well over a thousand compressor units — a scale that demands SCADA be foundational, not optional.
That operational scale also brings regulatory weight. Under 49 CFR Part 195, hazardous liquid pipeline operators using SCADA must maintain written alarm management plans, review safety-related alarm setpoints annually, and monitor points taken off scan or inhibited monthly.
Downstream and Facility Applications
Compressor stations, gas processing plants, and large separation facilities often run SCADA alongside DCS to manage complex process controls, safety instrumented systems (SIS), and high-value rotating equipment. Unplanned downtime here is measured in dollars per hour, which raises the stakes on system reliability and alarm quality considerably.
What SCADA Does Well — and Where It Falls Short
Operational Strengths
SCADA genuinely excels at several things:
- Continuous visibility into process variables across distributed sites
- Remote control that eliminates routine field visits for equipment adjustments
- Historical trending that supports data-driven maintenance decisions
- Audit trails for midstream allocation and certain regulatory interfaces
The Emissions Monitoring Gap
Here's where operators running SCADA alone face real exposure. Traditional SCADA is engineered to monitor process variables — pressure, flow, level, temperature. It has no native capability to detect or quantify fugitive methane or volatile organic compound (VOC) emissions.
A pressure transmitter cannot see an invisible gas leak. A tank level sensor cannot distinguish a controlled vent from an uncontrolled fugitive release. These aren't design flaws — they reflect what SCADA was built to do.
The regulatory gap this creates is material. EPA's methane rules under 40 CFR Part 60 Subpart OOOOb require source-specific equipment-leak inspections using approved methods — optical gas imaging, EPA Method 21, continuous monitoring, or approved alternatives. Ordinary process telemetry is not listed as a stand-alone inspection method. OGMP 2.0 Level 4/5 frameworks demand source-level, measurement-based emissions quantification that process-variable SCADA was not designed to produce.

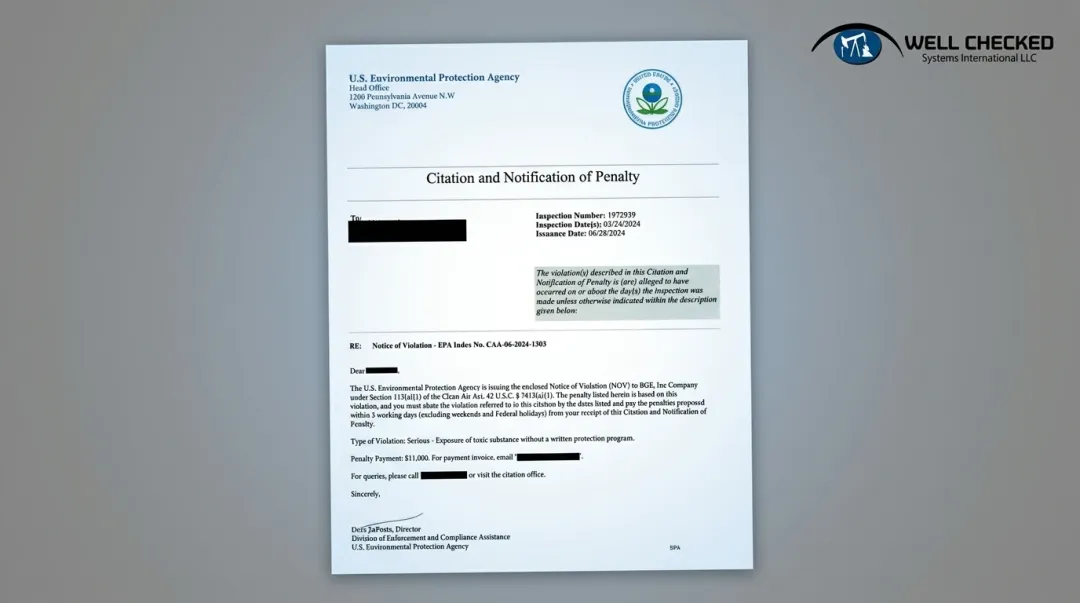

The enforcement risk is concrete. One producer's 2024 Clean Air Act settlement included a substantial civil penalty plus substantial required compliance measures across its facilities. Operational telemetry did not substitute for the missing air-permit monitoring and reporting controls.
Closing the Gap

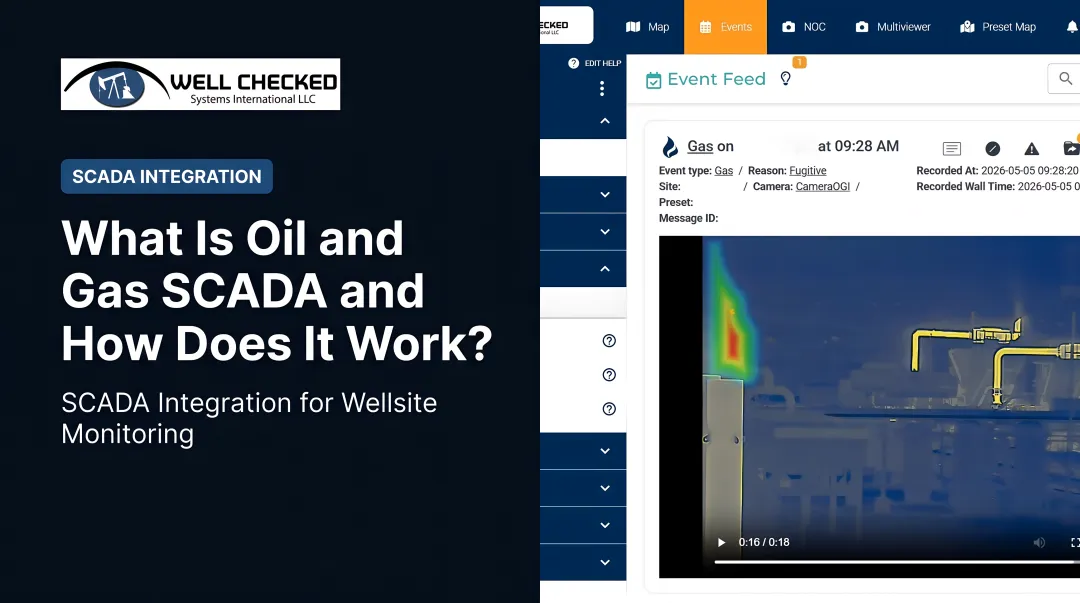

Well Checked's Zensory.ai™ platform fills the monitoring gap that SCADA leaves open — combining Long-Wave Infrared Optical Gas Imaging, video AI, and acoustic abnormal-sound detection to continuously scan for fugitive emissions that process-variable SCADA cannot detect.
The architecture is additive. Zensory.ai™ deploys its own hardware at the wellsite without requiring any modification to existing RTUs, PLCs, or SCADA instrumentation. For operators running centralized control rooms, a read-only API integration feeds validated Zentinal Core™ fugitive alerts and Zentinal IQ™ quantified emissions data directly into the existing SCADA HMI and historian — appearing alongside production telemetry in a single operational view.
Zentinal IQ™ provides operator-configured reporting outputs that a SCADA historian receiving only process-variable telemetry cannot generate. These outputs are structured for:
- operator reporting under an EPA-approved alternative method and applicable monitoring plan
- OGMP 2.0 Level 4/5 measurement-based reporting
- SASB ESG disclosure frameworks
Well Checked has deployed this approach across a 220-site program in the Appalachian Basin.
Conclusion
Oil and gas SCADA is a four-layer system — field sensors, RTU/PLC processing, a communications network, and a host/HMI — that gives operators continuous visibility and remote control over assets spread across remote geography. Understanding how each layer works, and where each layer can fail, helps operators select, configure, and maintain their systems more effectively.
What that visibility doesn't cover is equally important. SCADA was designed to monitor process variables — pressure, flow, temperature — not to detect or quantify fugitive emissions. Operators relying on SCADA alone for emissions compliance carry real regulatory exposure under EPA Subpart OOOOb that process alarms and historian logs aren't built to address.
The practical answer is additive, not a replacement. Purpose-built continuous emissions monitoring — combining optical gas imaging, acoustic abnormal-sound detection, and AI-driven anomaly filtering — sits alongside existing SCADA infrastructure to cover what process control systems were never designed to see. The two serve different functions, and effective field operations need both.
Frequently Asked Questions
What is a SCADA system for oil and gas?
Oil and gas SCADA is a four-layer hardware and software system — field sensors, RTUs/PLCs, a communications network, and a host/HMI — that collects real-time data from distributed sites, displays it to operators centrally, and enables remote control of field equipment without requiring anyone physically at the site.
What is an example of SCADA in oil and gas?
An operator monitoring a remote tank battery via SCADA can watch fluid levels rise in real time on an HMI screen, receive an automatic alarm when the tank approaches capacity, and remotely open a dump valve — all without dispatching a field technician.
What are the four types of SCADA systems used in oil and gas?
The four deployment types are full-stack enterprise SCADA (licensed platform software run on-premises or hybrid), hosted/SaaS SCADA (vendor-managed host infrastructure billed per site), purpose-built upstream SCADA for production-specific operations, and RTU-centric field SCADA for conventional well sites. The right choice depends on operational scale, complexity, and budget.
How is SCADA different from IoT monitoring in oil and gas?
SCADA is a traditional supervisory architecture with RTUs/PLCs and a host system designed for both monitoring and two-way control, while IoT monitoring typically refers to cloud-connected sensors reporting data without a traditional PLC layer. Modern oilfield stacks often combine both — SCADA for process control and actuation, IoT sensors for supplementary telemetry.
Can SCADA be used for EPA methane emissions compliance?
Standard SCADA monitors process variables and is not designed to detect or quantify fugitive methane emissions. EPA methane rules under 40 CFR Part 60 Subpart OOOOb require source-specific inspections using approved methods — optical gas imaging, Method 21, or an EPA-approved alternative monitoring method. Ordinary pressure, flow, or temperature data does not satisfy those requirements on its own; purpose-built emissions monitoring can supplement SCADA and support approved monitoring workflows.
What is the most common failure point in oil and gas SCADA?
The communications layer — cellular, radio, or satellite links between field RTUs and the host — is the most frequent point of failure. A broken communications link takes an entire site dark regardless of how well the sensors and host system are functioning, which is why network redundancy and link monitoring are essential design considerations for critical sites.
