Introduction
Gas production accounts for 41% of all methane emissions from the U.S. oil and natural gas industry, according to EPA's national emissions inventory. EPA's Greenhouse Gas Reporting Program reporters disclosed 27.5 MMT of onshore-production methane for 2023 alone — and those figures represent only facilities above reporting thresholds. A portion of those emissions can represent produced gas that was never sold.
For upstream operators, that emissions volume carries three distinct risks that compound when left unmanaged:
- Worker safety at remote, unmanned wellsites where gas can accumulate undetected
- Regulatory exposure under EPA's 2024 methane rule, where per-violation penalties reach $124,426 per day
- Direct revenue loss from unrecovered saleable gas escaping through failed seals and degraded components
All three risks share a common driver: the gap between when a leak starts and when anyone responds. On a typical pumper route, that gap runs days or even weeks — long enough for a small failure to become a reportable event, a safety incident, or a measurable revenue loss.
This guide breaks down the detection methods available to upstream operators, the regulatory timelines that govern response, and the operational mistakes that turn manageable leaks into significant liability.
Key Takeaways
- Raw wellsite gas has no added odorant — smell is not a detection method at upstream production sites
- Highest-frequency leak points: valve packing, pneumatic controllers, compressor rod seals, tank thief hatches, and flange connections
- Detection tools span Method 21 FID surveys, optical gas imaging (OGI) cameras, and continuous AI-based monitoring platforms — each with different coverage and trigger requirements
- EPA OOOOb repair deadlines are component- and method-specific; the generic "5/15-day" rule does not apply to most upstream fugitive components
- Continuous autonomous monitoring closes the detection gap that scheduled site visits consistently leave open
Why Natural Gas Leak Detection Is a High-Stakes Responsibility
Upstream Gas Has No Odorant
Mercaptan — the sulfur compound that gives distribution gas its distinctive smell — is added where gas enters the distribution system, not at the production level. Raw wellsite gas is colorless and odorless. Workers cannot rely on smell to identify a leak, and any detection program that depends on human senses at a remote, unmanned site has a fundamental gap built in.
That physical property — not a procedural gap — is what drives the requirement for industrial-grade detection at upstream sites. Human senses don't work here; instrumentation does.
The Safety Dimension
Methane is flammable between 5% and 15% by volume in air — its Lower Explosive Limit (LEL) to Upper Explosive Limit (UEL). Below 5%, the mixture is too lean to ignite. Above 15%, it's too rich. The dangerous window is wide enough that enclosed equipment housings — compressor shelters, separator skids, tank battery enclosures — can accumulate explosive concentrations well before any visible or olfactory indication is present.
At remote sites, that accumulation can go undetected for the entire interval between pumper visits.
The Regulatory Dimension
EPA 40 CFR Part 60 Subpart OOOOb covers fugitive emissions components at onshore wellsites, centralized production facilities, and compressor stations built, reconstructed, or modified after December 6, 2022.
OOOOb assigns survey cadence by site tier:
| Site Tier | AVO Frequency | OGI / Method 21 |
|---|---|---|
| Single-wellhead-only | Quarterly | Not separately required post-initial survey |
| Multi-wellhead-only | Quarterly | Semiannual |
| Major-equipment wellsite / CPF | Bimonthly | Quarterly |
| Compressor station | Monthly | Quarterly |

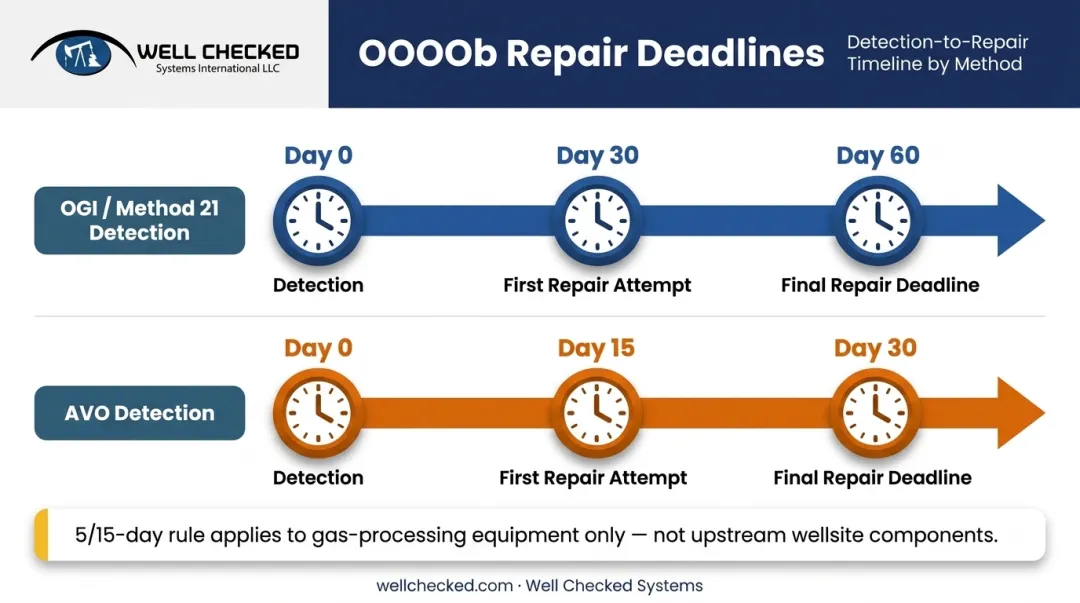

Repair deadlines are method- and component-specific. For wellsite and compressor fugitive components found by OGI or Method 21, the clock is 30 calendar days for first attempt and 30 days after that for final repair. Components found by audio, visual, olfactory (AVO) must be repaired within 15 calendar days of detection with a second attempt within 15 days after that. The often-cited "5/15-day" rule applies to gas-processing equipment, not upstream wellsite components.
The Financial Dimension
At a 2025 Henry Hub benchmark near $3.60/MMBtu, even a modest continuous leak represents measurable revenue loss. A compressor seal leak running for weeks before discovery costs product plus the labor and downtime of a late-stage repair. Undetected leaks also expose operators to EPA civil penalties of up to $124,426 per violation per day under CAA section 113(b).
Enforcement at the upstream level is active. In an October 2024 settlement, EPA penalized a natural gas producer for New Mexico production-related Clean Air Act violations — penalties that dwarf the cost of continuous monitoring at even a large multi-site operation.
Common Natural Gas Leak Points at Upstream Wellsites
Highest-Frequency Fugitive Emission Sources
EPA's regulatory framework distinguishes fugitive emissions — unintended releases from components like valves, flanges, seals, and thief hatches — from vented emissions, which are intentional process releases. Peer-reviewed measurement studies have found that unintentional emissions from liquid storage tanks and other equipment leaks were the largest contributors to the gap between modeled and inventoried production emissions.

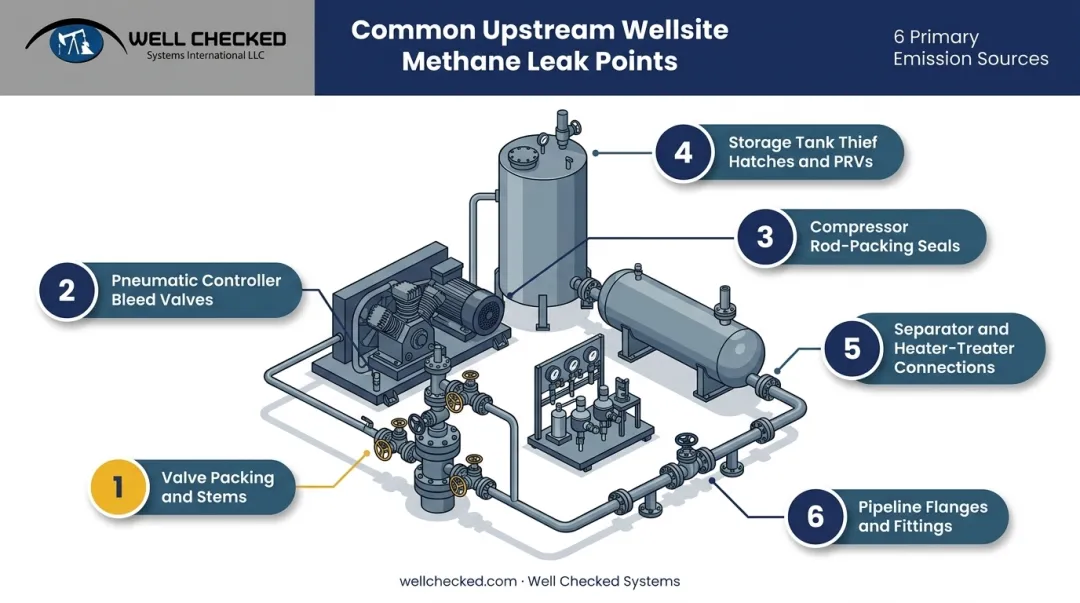

The components that require priority attention in any leak detection and repair (LDAR) survey plan:
- Valve packing and stems — degraded packing allows gas to migrate along the valve stem
- Pneumatic controller bleed valves — continuous or intermittent bleed devices that can drift from design specifications
- Compressor rod-packing seals — high-pressure dynamic seals subject to mechanical wear
- Storage tank thief hatches and pressure relief valves — subject to improper seating, corrosion, and overpressure events
- Separator and heater-treater connections — flange connections and instrument fittings subject to thermal cycling
- Pipeline flanges and fittings — corrosion and gasket failure increase with age and temperature variability
Why the Fugitive vs. Venting Distinction Matters
Knowing which components can leak is only half the problem. A detection system that can't distinguish a fugitive-emission anomaly from a planned pneumatic bleed or tank breathing loss will generate constant false alarms — and once operators start ignoring alerts, the monitoring program fails regardless of sensor quality. Event classification is a design requirement, not a feature add-on.
Environmental Factors That Compound Risk
Seasonal and site-specific conditions affect both leak development and detection reliability:
- Freeze-thaw cycles accelerate seal degradation in cold-weather producing regions
- High wind disperses gas plumes, reducing the concentration that reaches point sensors
- Compressor vibration can loosen fittings over time and interfere with acoustic baselines
- Extreme temperature swings affect catalytic sensor calibration and OGI camera thermal contrast
In seasonally variable basins like the Appalachian, Bakken, and Denver-Julesburg, these conditions shift by season — meaning a monitoring system calibrated for summer performance can miss real events by winter without continuous recalibration or adaptive detection logic.
Natural Gas Leak Detection Methods: From Manual Inspection to Continuous Monitoring
Manual Methods: AVO, Method 21, and Soap-Bubble Tests
The baseline layer of any LDAR program includes:
- AVO (Audible, Visual, Olfactory) surveys — required under OOOOb at frequencies ranging from monthly to quarterly by site tier; qualitative only, not concentration-quantitative
- EPA Method 21 FID surveys — portable flame ionization detector measurements at component level; OOOOb defines a leak as 500 ppmv or greater for Method 21; note this threshold applies only to Method 21, not AVO or OGI
- Soap-bubble testing — still used for low-pressure fittings; point-contact only, requires personnel proximity
All three are periodic snapshots. They verify conditions at the moment of the visit, not between visits.
Optical Gas Imaging (OGI)
OGI infrared cameras visualize gas plumes invisible to the naked eye, allowing operators to sweep large equipment areas rapidly. Methane absorbs in the 3–5 micrometer mid-wave infrared (MWIR) band, which is why MWIR-capable cameras with cooled InSb detectors are the standard for methane OGI.
OGI is far faster than component-level Method 21 surveys — a single camera operator can cover an entire tank battery in minutes. Camera sensitivity is characterized by Noise Equivalent Concentration Length (NECL — the minimum detectable gas concentration at a given optical path length); lower NECL values indicate greater sensitivity. Imaging quality depends on temperature contrast, wind speed, operator technique, and the concentration-length of the plume.
Well Checked's Zensory.ai™ platform uses Long-Wave Infrared (LWIR) cameras for continuous OGI, enabling persistent day-and-night monitoring at a substantially lower cost than traditional MWIR alternatives. That cost difference makes fleet-wide deployment practical for mid-sized operators, not just large E&Ps.
Fixed-Point Gas Sensors
Catalytic bead (pellistor) and NDIR sensors deployed at specific equipment locations provide continuous area monitoring:
- Always-on — unlike periodic surveys, these operate 24/7
- Point coverage only — gas must physically reach the sensor
- Require calibration and bump testing — sensors that have been exposed to contaminants like silicones or lead compounds can appear functional while providing inaccurate readings; powered-on status is not proof of sensitivity
- Oxygen-dependent — catalytic sensors require sufficient oxygen to combust methane; readings become unreliable in oxygen-deficient atmospheres
Acoustic Detection
Ultrasonic detectors identify the high-frequency sound signature of pressurized gas escaping through a small orifice. Commercially available units typically cover a 12–70 kHz band with roughly 1-second response times, detecting pressurized releases from about 2 bar at standoff ranges in the 20–28 meter class.
The key advantage: acoustic abnormal-sound detection is concentration-independent. It can identify a developing pressurized release before gas concentrations reach levels detectable by LEL sensors, providing early warning at compressor stations and high-pressure equipment areas.
Continuous AI Monitoring Platforms

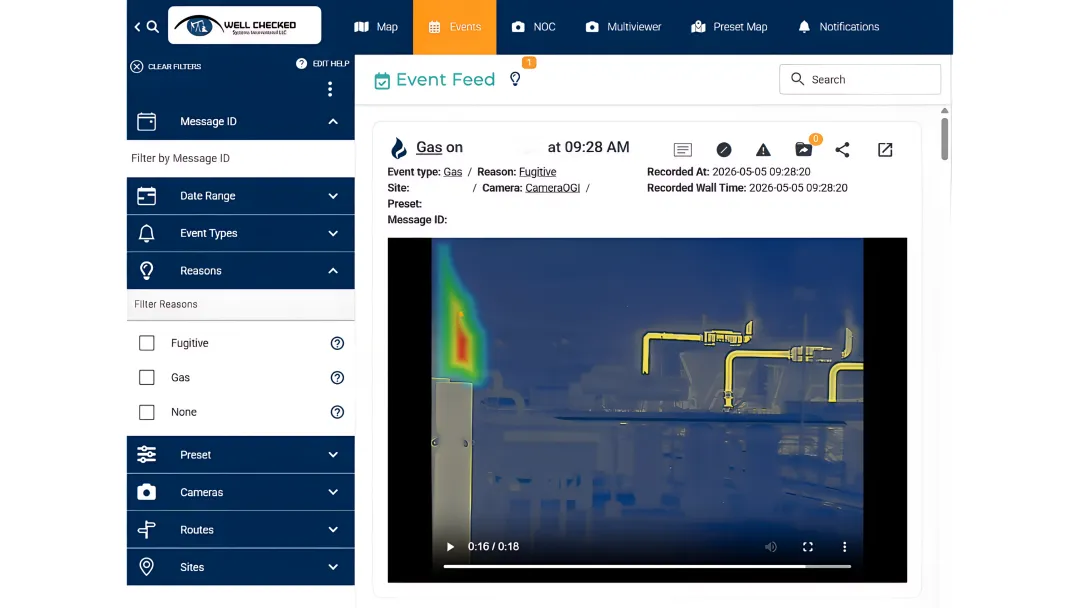

Multi-sensor AI platforms integrate OGI, acoustic, and video-based detection into a single autonomous system. They operate continuously, apply machine learning to distinguish normal operational signatures from system-validated fugitive anomalies, and prioritize system-validated events for operator review.
Well Checked's Zensory.ai™ platform follows this architecture across a 220-site program in the Appalachian Basin. Zentinal Core™ serves as the first-line detection and false-alarm-filtering layer, establishing a site-specific operational baseline in approximately two days. It analyzes 1,500+ videos per site per day, comparing every sensor input against that learned normal profile. Events outside the baseline can trigger operator alerts, while known routine process signatures can be suppressed through configuration and review.
Once Zentinal Core™ validates an event, Zentinal IQ™ quantifies the emission's duration, volume, and rate. Output is structured for:
- EPA OOOOb regulatory submissions
- OGMP 2.0 Level 4/5 measurement-based reporting
- SASB ESG disclosure frameworks
The system delivers alerts via the Well Checked Dashboard, email, SMS, and SCADA API, enabling a full acknowledge-dispatch-mitigate cycle within 24 hours.
Safety Protocols When a Leak Is Detected at a Remote Wellsite
Immediate Response: Notify Before Entering
When a validated leak alert is received for a remote site, the first action is not to drive to the wellsite — it is to notify the appropriate field supervisor and initiate a structured dispatch. Personnel should never enter an area with a suspected active leak without first:
- Conducting a perimeter gas reading from upwind using a calibrated portable instrument
- Staging vehicles and ignition sources upwind and outside any potential explosive atmosphere zone
- Confirming wind direction before approaching equipment
API RP 54 identifies hard hats, eye protection, safety footwear, and flame-resistant clothing as baseline oilfield PPE. Personal multi-gas monitors covering LEL and O2 are standard for field entry; the channel mix should match the site's specific hazard assessment and any additional toxic-gas exposures identified for that location.
Atmospheric Testing Before Entry
For any enclosed equipment housing or area where gas may have accumulated, OSHA 29 CFR 1910.146 requires atmospheric testing in a specific order: test oxygen first, then combustible gases and vapors, then toxic gases and vapors. In sequence:
- Oxygen levels — confirm atmosphere is neither deficient nor enriched
- Combustible gas/vapor concentration — verify below LEL threshold
- Toxic gas concentration — confirm below PEL/IDLH for site-specific hazards
Entry into an oxygen-deficient or explosive atmosphere requires SCBA or supplied air. A portable four-gas meter is not a substitute for proper respiratory protection in IDLH conditions.
Isolation and Shutdown Sequence

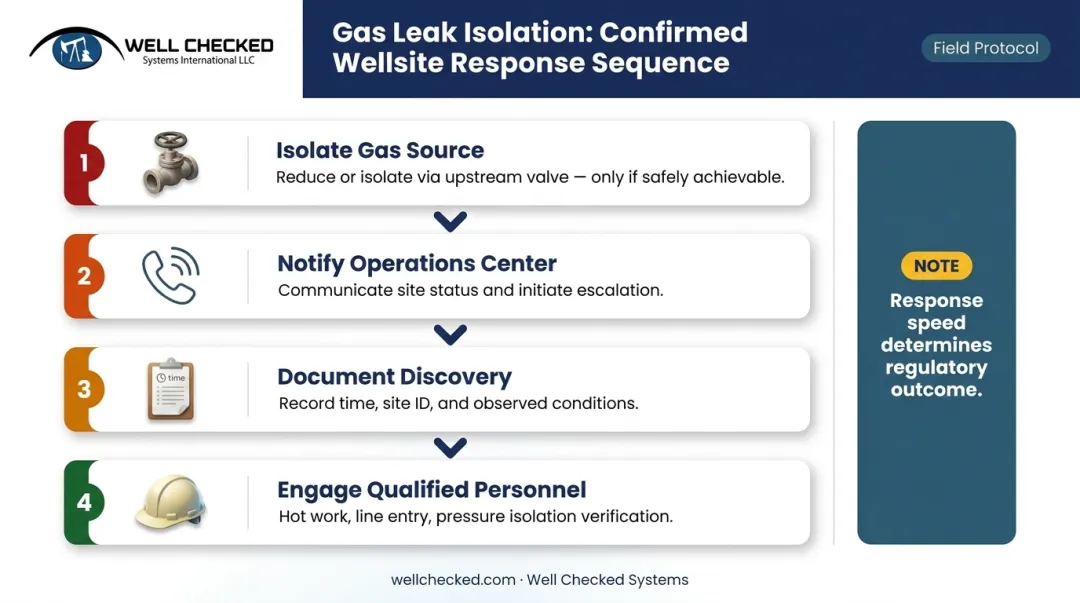

The response hierarchy for a confirmed upstream wellsite leak:
- Reduce or isolate the gas source via upstream valve closure — only if achievable safely without entering the hazard zone
- Notify the gas control or operations center, communicate site status, and initiate the appropriate escalation
- Document time-of-discovery and conditions — timestamp, site ID, and observed indicators constitute regulatory evidence
- Engage qualified personnel for actions requiring specific competencies: hot work, line entry, and pressure isolation verification
Once the source is isolated and the immediate hazard is controlled, the response shifts from active mitigation to structured documentation — a step that carries its own regulatory consequences.
Documentation After Containment
Operators subject to OOOOb must document:
- Leak discovery date and detection method
- Component and equipment identification
- Repair attempt dates and methods
- Post-repair verification test results
Continuous monitoring platforms like Zentinal IQ™ automate much of this record-keeping — capturing event duration, emission volume, and rate for each validated incident and structuring that data for EPA submissions, OGMP 2.0 Level 4/5 reporting, and state-agency inventory filings.
Response speed directly determines regulatory outcome. For OGI- or Method 21-detected wellsite components, the 30-day repair window begins at the moment of documented detection — not at the moment of repair.
Common Leak Detection Mistakes Upstream Operators Must Avoid
Three operational gaps account for most preventable compliance failures — and each one is fixable.
Relying Solely on Periodic Pumper-Route Visits
Weekly or bi-weekly routes leave multi-day detection windows where a significant fugitive event can go completely unnoticed. This isn't operator negligence — it's a structural gap. It becomes untenable under OOOOb's component-specific repair clocks, which begin ticking from the moment of discovery.
A leak running undetected for two weeks before a pumper finds it has already generated substantial product loss and potential regulatory exposure.
Treating Every Alert as Equally Credible
Point sensors and unfiltered OGI cameras generate false alarms from process venting, steam, equipment heat signatures, and dust. When every sensor event triggers a dispatch request, operators learn to deprioritize alerts — and real fugitive emissions get lost in the noise.
A detection platform that distinguishes true anomalies from normal operational signatures is what makes alert-driven operations actually work.
Skipping Calibration and Bump Testing
A catalytic bead sensor exposed to silicone compounds — or operating in an oxygen-limited environment — can appear powered and functional while producing readings that are dangerously inaccurate. Bump testing verifies actual sensor sensitivity by exposing it to a known gas concentration and confirming the expected response. Powered status alone tells you nothing.
This step must appear on a documented schedule to maintain regulatory defensibility.
Frequently Asked Questions
How do you detect a natural gas leak at an upstream wellsite?
Upstream operators use a layered approach — AVO and Method 21 FID/PID surveys for periodic checks, OGI infrared cameras for visual plume detection, fixed-point gas sensors for continuous area coverage, and acoustic detectors for pressurized releases. Continuous AI monitoring platforms integrate all of these inputs to detect and validate leaks in real time, reducing reliance on scheduled inspections alone.
What smell can be mistaken for a gas leak at a production site?
Raw wellsite gas has no added odorant — mercaptan is injected downstream at distribution, not at the wellhead. Diesel exhaust, tank vapors, and glycol from dehydrators all produce field odors that can suggest a leak, but none reliably indicate methane. Smell cannot substitute for instrument-based detection.
What are the most common natural gas leak points at a wellsite?
The highest-frequency fugitive emission sources are valve packing and stems, pneumatic controller bleed valves, compressor rod-packing seals, storage tank thief hatches and pressure relief valves, and flange connections at separators and production equipment. Prioritizing these components in any LDAR survey plan targets the highest-probability leak sources first.
What does EPA OOOOb require for natural gas leak detection?
OOOOb requires covered upstream facilities to conduct AVO monitoring monthly to quarterly and OGI or Method 21 surveys quarterly to semiannually, depending on site tier. Identified leaks must be repaired within 15 or 30 calendar days for the first attempt (method-dependent), with full documentation of survey dates, component IDs, repair dates, and post-repair verification.
What is the difference between fugitive emissions and process venting?
Fugitive emissions are unintended, uncontrolled gas releases from equipment leaks — failed valve packing, degraded compressor seals, unseated thief hatches. Process venting is intentional and often permitted, such as pneumatic device bleed, tank breathing losses, or scheduled blowdowns. Detection systems must classify these correctly: alerting on every planned vent creates false-alarm fatigue — operators start ignoring alerts and miss real fugitive emissions.
How quickly must upstream operators respond to a confirmed gas leak under EPA rules?
For wellsite and compressor fugitive components found by OGI or Method 21, OOOOb requires a first repair attempt within 30 calendar days of detection and final repair within 30 days of the first attempt. Components found by AVO must have a first attempt within 15 calendar days. Continuous monitoring platforms that timestamp validated leak discovery are essential for demonstrating compliance with these method-specific timelines.
Conclusion
Natural gas leak detection for upstream operators sits at the intersection of worker safety, regulatory compliance, and financial stewardship. The detection method chosen determines not just whether a leak is found, but how quickly it can be validated, responded to, and documented in a form regulators will accept.
If the honest answer to "how would we know about a leak at a remote wellsite tonight?" is "we'd find it on the next pumper visit," that gap is both a safety and a compliance liability. Continuous autonomous monitoring — the kind that validates events, reduces false alarms, and delivers actionable alerts within hours rather than days — is built to close it.
Platforms like Zensory.ai™ from Well Checked Systems are deployed across 200+ remote U.S. onshore sites doing exactly that: replacing periodic pumper visits with continuous, defensible field awareness. For operators ready to move from reactive to exception-based field management, that's where the conversation starts.
