Peer-reviewed research published in Science found pneumatic controllers accounted for 38% of measured production-source methane emissions, with malfunctioning controllers responsible for 66% of that share — proof that even "designed" vents can misbehave badly (Science, 2018). That's a different animal than a fugitive leak from a worn seal.
EPA's Subpart OOOOb rule and the OGMP 2.0 framework are both pushing the industry toward measurement-based reporting, not modeled estimates. This article breaks down what vented emissions actually are, the monitoring practices that hold up under audit, and the technologies making continuous quantification realistic at scale.
Key Takeaways
- Vented emissions are intentional, designed releases (pneumatics, tank vapors, blowdowns), not accidental fugitive leaks
- EPA OOOOb, OGMP 2.0, and SASB/TCFD now expect defensible, continuous vented-emissions data
- Combining OGI, acoustic sensing, and AI detection outperforms periodic manual LDAR surveys
- Continuous monitoring cuts compliance risk while reducing route-based site-visit costs
What Are Vented Emissions? Sources and Regulatory Context
Vented emissions are releases that happen by design, not by accident. OGMP 2.0 draws this line clearly: a vent is a planned exit point built into equipment or a process; a fugitive emission escapes from a seal, connection, or component that was never meant to leak.

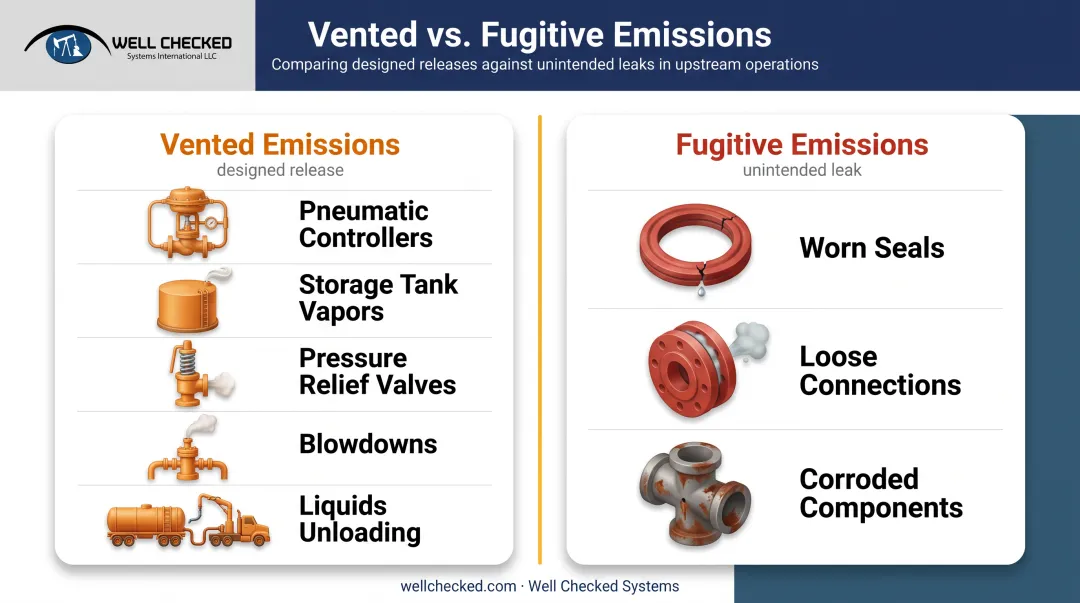

Common vented sources include:
- Pneumatic controllers and pumps — release gas as part of normal actuation
- Storage tank vapors — breathing and flashing losses from crude or condensate tanks
- Pressure relief events — safety valves releasing to prevent overpressure
- Blowdowns — deliberate depressurization before maintenance or repair
- Liquids unloading — gas wells vented to clear wellbore liquids
Even a designed vent point can produce an abnormal event. A stuck thief hatch or an overloaded control system can turn a routine tank vent into a release that behaves like a fugitive emission. Classification matters as much as location.
Regulatory Drivers Pushing Monitoring Forward
EPA's 40 CFR Part 60 Subpart OOOOb sets device-specific standards:
- Process controllers must achieve zero methane/VOC emissions by January 22, 2027, with limited interim alternatives
- Natural-gas-driven pumps generally face a zero-emission standard, with a 95% control fallback for qualifying sites without electricity
- Storage tank batteries above 6 tons per year VOC or 20 tons per year methane require at least 95% control
- Liquids unloading requires a documented best-management-practice plan, not a blanket venting cap
Beyond those device standards, OGMP 2.0 Level 4/5 reporting expects source-specific measurement data reconciled against independent site-level checks. SASB and TCFD add investor-facing disclosure pressure. Operators increasingly need continuous, source-level records—not estimates—to satisfy both regulators and investors.
Key Practices for Effective Vented Emissions Monitoring
Getting vented-emissions monitoring right starts with a defensible process around the data, not a single sensor purchase.
Establish a baseline first. Before implementing any mitigation, know your site's actual emissions profile. Bottom-up engineering estimates are a starting point, but measurement-based data (OGMP 2.0 Level 4/5) is what regulators and auditors increasingly expect.
Go continuous, not quarterly. Traditional LDAR-style inspections catch what's happening at the moment someone walks the site. Intermittent or erratic venting (a pneumatic cycling too often, a hatch that seals poorly on windy days) gets missed entirely between visits.

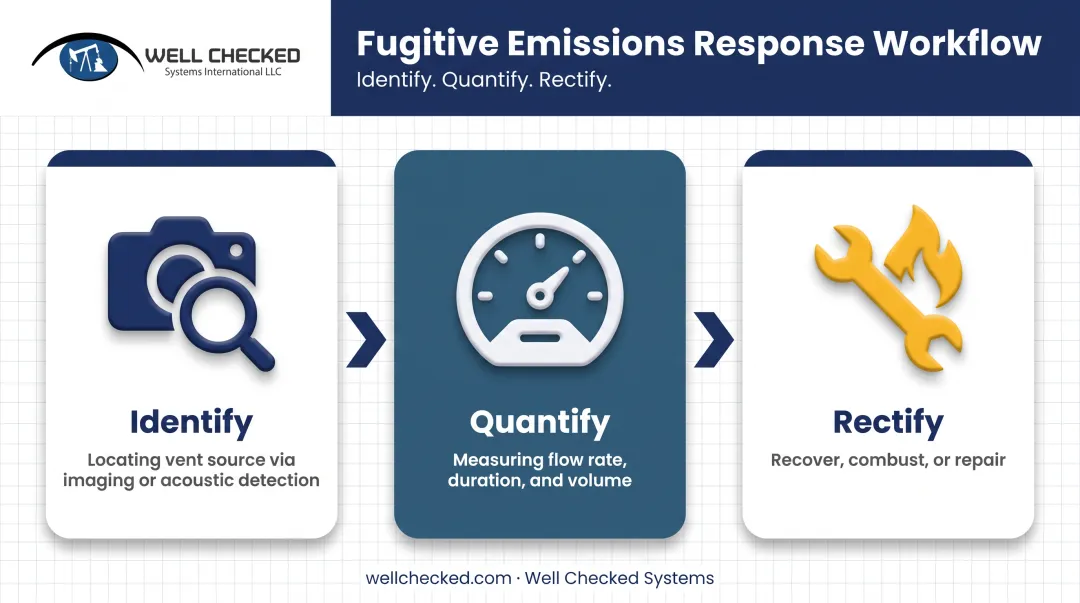

Follow an Identify-Quantify-Rectify workflow:
- Identify: Locate the vent source using imaging or acoustic detection
- Quantify: Measure flow rate, duration, and volume
- Rectify: Recover the gas, route it to combustion, or repair the equipment
Separate normal from abnormal. A system that alerts on every detected plume becomes noise within a week. Distinguishing routine process venting from fugitive-like anomalies is what keeps a monitoring program usable instead of ignored.
Unify your reporting. Vented and fugitive emissions data living in separate systems creates reconciliation headaches at audit time. One integrated dataset, aligned to OGMP 2.0 categories, is far easier to defend.
Core Technologies Used in Vented Emissions Monitoring
No single sensor type tells the whole story. Each technology answers a different question.
Optical and Acoustic Detection
Optical Gas Imaging (OGI) with Long-Wave Infrared (LWIR) cameras visualizes methane and VOC plumes day and night. Under EPA's Appendix K protocol, OGI is a location tool: it shows you where a plume exists, not how much gas is flowing (eCFR Appendix K).
LWIR systems also run at roughly a third of the cost of traditional mid-wave infrared cameras, which matters when you're covering remote sites.
Acoustic sensing picks up abnormal equipment sounds tied to venting or leaking components — a valve that's chattering, a compressor running rough. It's fast at flagging pressurized releases but doesn't hand you a mass-emission rate on its own.
Fixed, Mobile, and AI-Layered Systems
- In-line vent flow meters provide direct, continuous flow and pressure readings at the point source
- Ground-based fixed sensors cover a single site continuously
- Mobile and handheld units support spot checks and surveys
- Airborne and spaceborne detection scale across a basin but miss intermittent, site-level events

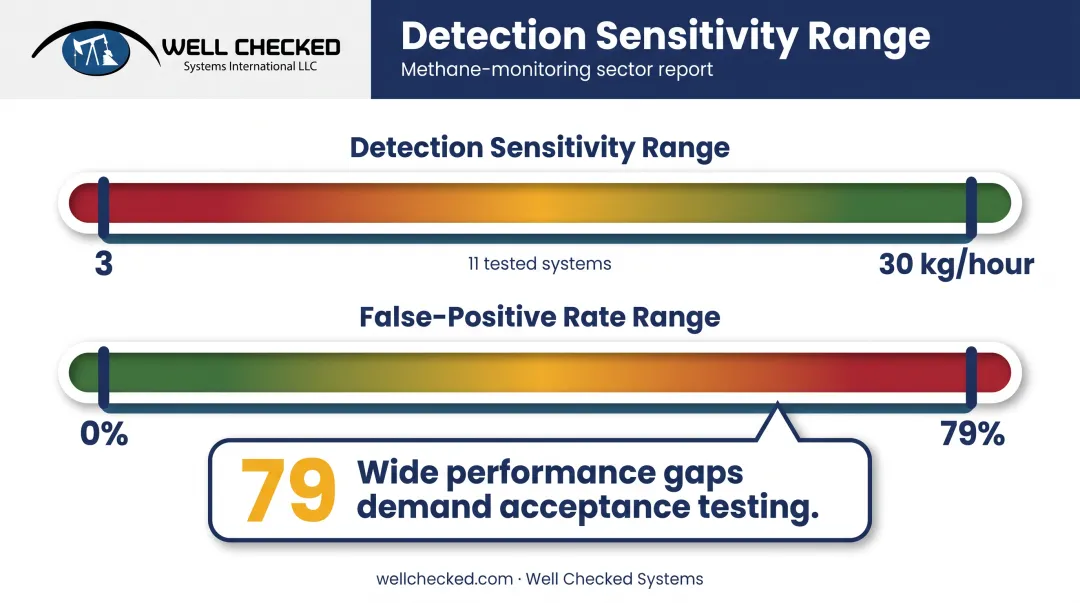

Independent testing shows wide performance gaps. In blind METEC trials, the methane rate needed for 90% detection probability ranged from 3 to 30 kg/hour across 11 continuous monitoring systems, and false-positive rates spanned 0% to 79% (PMC, 2023). Translation: not all "continuous monitoring" claims are equal. Demand acceptance testing before you buy.

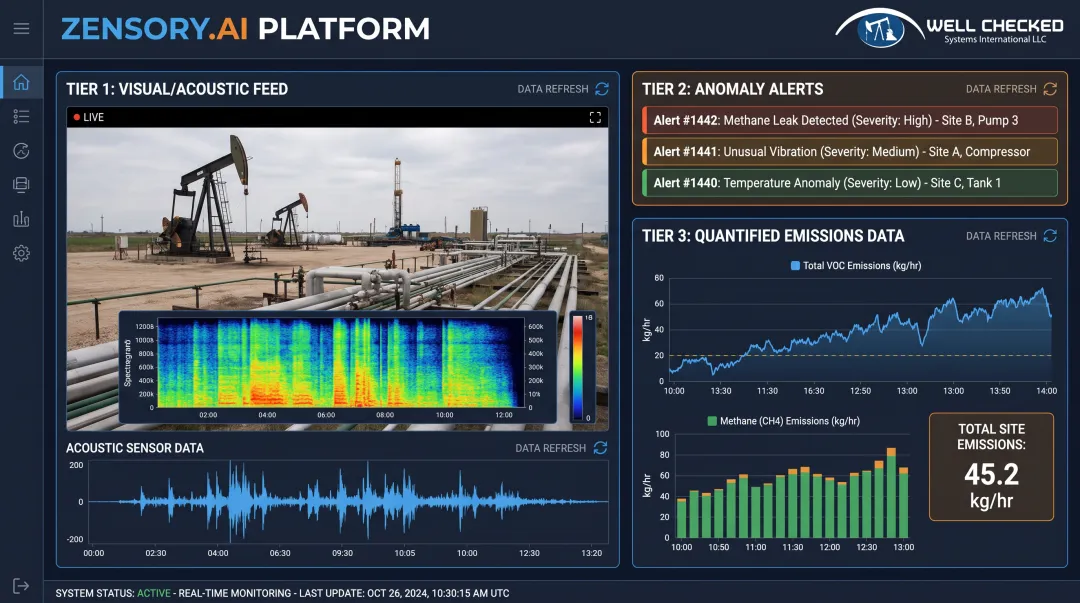

AI/machine learning layered on multi-sensor data is what turns raw detections into something usable. Well Checked's Zensory.ai™ platform runs a three-tier architecture built around this principle:
- Zentinal Ops™ delivers 360° visual and acoustic intelligence through high-resolution video and abnormal-sound detection
- Zentinal Core™ fuses video, acoustic, and OGI streams, learns each site's baseline in about two days, and alerts only on genuine anomalies
- Zentinal IQ™ quantifies Core-validated events via LWIR plume analysis into volume, duration, and rate data for EPA OOOOb, OGMP 2.0 Level 4/5, SASB, and TCFD
The two-day learning cycle matters practically: it's what lets the system tell a pneumatic controller doing its normal job apart from one that's stuck open and venting continuously.
Reducing and Managing Vented Emissions
Detection is half the job. Reducing what you're venting in the first place is the other half.
- Electrify pneumatic devices. Swapping gas-driven actuators for electric ones eliminates motive-gas venting entirely. This is the direction OOOOb's zero-emission controller standard is pushing the industry.
- Install vapor recovery units (VRUs) on tanks. EPA notes VRUs can capture low-pressure tank vapors roughly 95% of the time, with the remainder allowed for annual maintenance downtime (EPA VRU page). Captured gas can then be sold instead of released.
- Optimize routine maintenance. Worn hatch seals and poorly maintained valves cause avoidable venting that has nothing to do with process design.
None of these eliminates venting completely. Some releases are safety-critical by design. But the combination of electrification, VRUs, and disciplined maintenance closes most of the avoidable gap.
Frequently Asked Questions
What is the purpose of CEMS?
Continuous Emissions Monitoring Systems (CEMS) track pollutant or gas output in real time for regulatory compliance and operational decisions. Not every continuous sensor network qualifies as a regulatory CEMS unless it meets EPA performance and QA standards.
Why is methane removed from landfills?
Landfill methane is captured and flared, or converted to energy, to reduce a potent greenhouse gas reaching the atmosphere. It's a similar principle to vented-gas recovery in oil and gas: collect and route the gas rather than release it.
How do vented emissions differ from fugitive emissions?
Vented emissions are intentional, designed releases — pneumatics, tank vapors, blowdowns. Fugitive emissions are unintended releases from equipment seals, connections, or components that shouldn't be leaking at all.
What regulations require vented emissions monitoring in the US?
EPA's 40 CFR Part 60 Subpart OOOOb sets federal standards for pneumatics, pumps, tanks, and unloading events. Many states layer additional inventory and reporting requirements on top.
Can vented emissions be eliminated entirely?
Some venting is safety-critical and can't be fully removed. But electrification of pneumatics and vapor recovery units on tanks can eliminate or capture the large majority of routine, avoidable venting.
How does continuous monitoring improve on quarterly LDAR inspections?
Quarterly inspections only capture a snapshot at the moment of the visit. Continuous monitoring catches intermittent or erratic venting events that occur between inspection windows.
