For years, quarterly LDAR inspections were the industry standard. Someone drove out, walked the site with an OGI camera, and filed a report. It worked, sort of, until the next quarter's leak started the same countdown clock all over again.
Two forces are now collapsing that gap. First, EPA's 40 CFR Part 60 Subpart OOOOb rule is pushing operators toward continuous, defensible monitoring, not periodic snapshots. Second, the sensor and AI technology to actually deliver that continuous view has matured fast.
This article breaks down how modern methane monitoring platforms combine multi-sensor detection, AI, and quantification to close that detection gap, and what operators should look for when evaluating one.
Key Takeaways
- Multi-sensor AI platforms (video, acoustic, optical gas imaging) run continuously, replacing quarterly manual inspections
- EPA OOOOb and OGMP 2.0 require measurement-based, regulatory-defensible emissions reporting
- "Alert on exception" systems cut false alarms and route-based site-visit costs
- Platform selection hinges on sensor fusion, edge computing reliability, and reporting readiness
What Is a Methane Monitoring Platform and Why It Matters Now
A methane monitoring platform is an integrated hardware-and-software system built to continuously detect, quantify, and report fugitive emissions at a wellsite. That's different from a single camera or handheld detector: it's an operating layer that fuses sensor data, applies analytics, and generates auditable records over time.
The urgency comes down to economics and compliance. Methane is the principal component of natural gas, so a molecule released today is product that was produced but never sold, and a reportable event under EPA Subpart OOOOb. Detection speed directly determines how much product is recovered and how defensible the resulting record is.
That's exactly why the old model is breaking down.
From Pumper Routes to Digital Monitoring
Quarterly LDAR surveys and manual pumper routes were built for an era when "good enough" detection meant catching a leak within a few months. Under EPA Subpart OOOOb's compliance timelines, that cadence no longer satisfies regulators or investors. Operators are shifting to:
- Continuous, sensor-based detection instead of scheduled site visits
- Automated alerting rather than manual log review
- Data trails built for audit, not just internal recordkeeping
This shift isn't optional for operators with OOOOb-applicable sources. It's becoming the baseline expectation.
Core Advancements Driving Modern Emissions Detection
The technology behind this shift didn't arrive all at once. It's the product of several parallel advancements converging into a single deployable system.
Five advances matter most:
- Multi-sensor fusion (video, acoustic, and infrared) instead of single-camera OGI
- AI models that separate routine process emissions from true fugitive leaks
- LWIR cameras that cut detection hardware cost to roughly one-third of legacy MWIR
- Edge computing that keeps remote sites autonomous without constant connectivity
- Satellite and aerial layers for basin-scale screening above site-level monitors

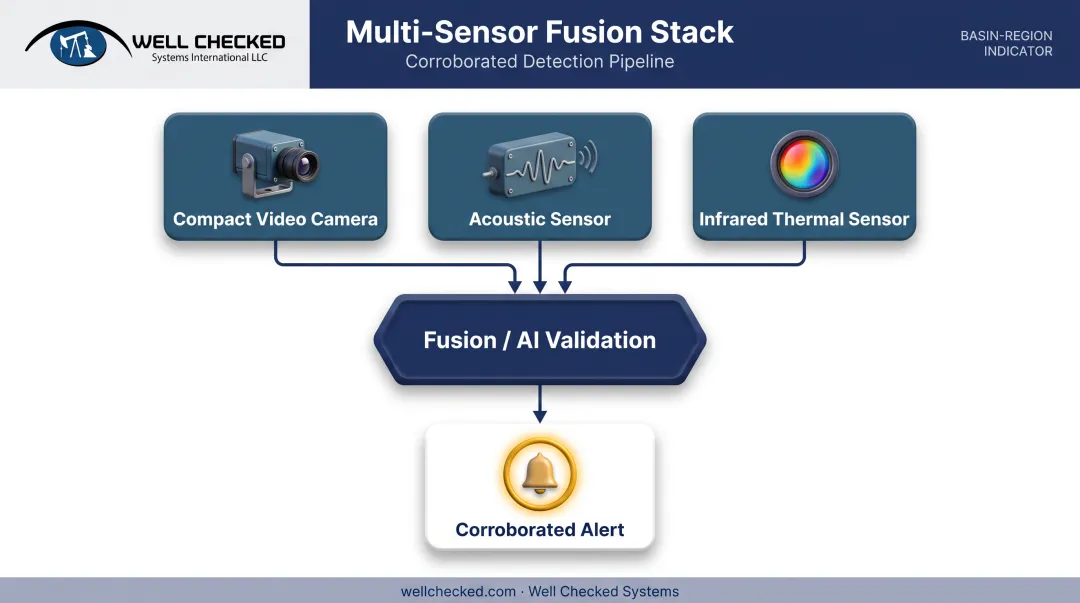

Early continuous monitoring leaned on a single optical gas imaging camera per site. Modern platforms combine video, acoustic sensing, and infrared detection into one stack, so a gas plume, an unusual mechanical sound, and a thermal anomaly can corroborate each other before an alert fires.
Detection alone was never the hard problem. Wellsites vent gas as part of normal operations — flaring, venting, pneumatic controller cycles — so the real work is separating routine process emissions from a genuine fugitive leak. Machine learning models trained on site-specific data now handle that discrimination automatically.
Why LWIR Cameras Changed the Cost Equation
Long-Wave Infrared cameras deserve their own mention. They enable day-and-night detection at roughly one-third the cost of legacy mid-wave IR systems used in older OGI setups, according to Well Checked Systems' internal deployment data. That cost reduction is why continuous, multi-sensor coverage became commercially viable across hundreds of sites rather than a handful of flagship locations.

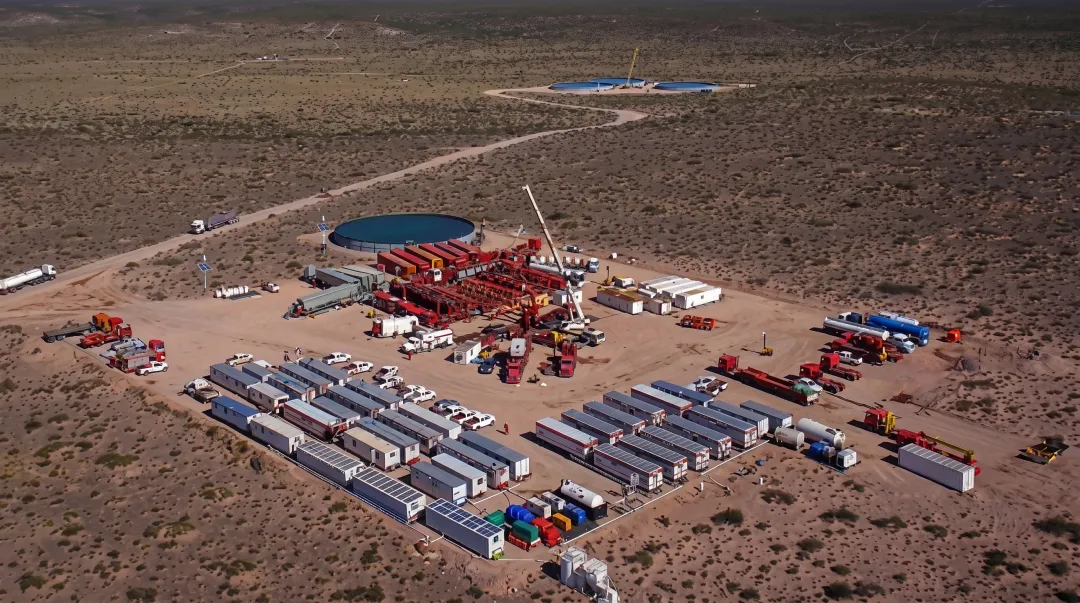

Lower sensor cost only helps if remote sites can act without perfect connectivity. A wellsite in the Bakken or San Juan Basin doesn't always have a reliable link, so onsite edge processing runs detection and analysis locally — without waiting on the network to flag an anomaly.
Above the pad, satellite and aerial layers add macro visibility. Hyperspectral imaging and plume detection from satellites and aircraft catch large, dispersed events across a basin.
Published satellite detection thresholds run from roughly 100 kg/h at the facility level up to 1,000–3,000 kg/h for broader public satellites. That range is useful for portfolio-level screening, but it is not a substitute for site-level continuous monitoring.
The data volume on the ground is substantial. Well Checked Systems' Zensory.ai™ platform analyzes 1,500+ videos per site per day at production scale across its monitored sites — the density of coverage operators need when every pad has to discriminate real leaks from normal operations.
How Multi-Sensor AI Platforms Work: From Detection to Defensible Data

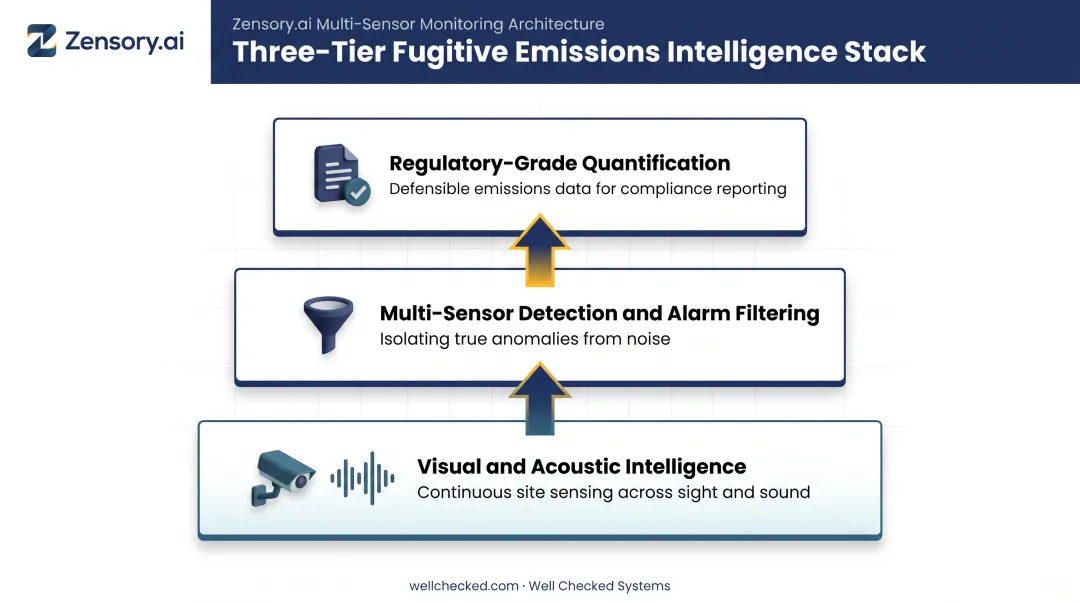

Most mature platforms follow a tiered architecture rather than a single detect-and-alert loop. Well Checked's Zensory.ai™ platform is a real-world example of this structure.
- Visual and acoustic intelligence layer (Zentinal Ops™) — high-resolution cameras with object recognition, paired with acoustic AI that listens for abnormal sounds. This layer covers "sight and sound."
- Multi-sensor detection and alarm filtering (Zentinal Core™) — combines sensor streams, filters false alarms, and flags only true fugitive anomalies. Core is built to find "the needle in stacks of needles."
- Regulatory-grade quantification (Zentinal IQ™) — once Core validates an event, IQ quantifies volume, duration, and rate for regulatory reporting.
AI Site Learning Builds a Baseline First
Before a platform can flag anomalies, it needs to know what "normal" looks like at that specific site. Zensory.ai™ runs an AI Site Learning cycle of roughly two days per site, during which it establishes baseline operational patterns—pump cycles, venting schedules, and routine noise— before switching into active alerting mode.
This baselining step is what separates modern platforms from earlier threshold-based sensors that treated every gas reading above a fixed number as an alert.
The same continuous sensing that builds that baseline also reaches past gas alone. Because the acoustic layer listens without interruption, it can flag mechanical anomalies—unusual compressor sounds, bearing wear, and unexpected vibration patterns—before those issues become an emissions event. Operators get a maintenance signal alongside the leak signal.

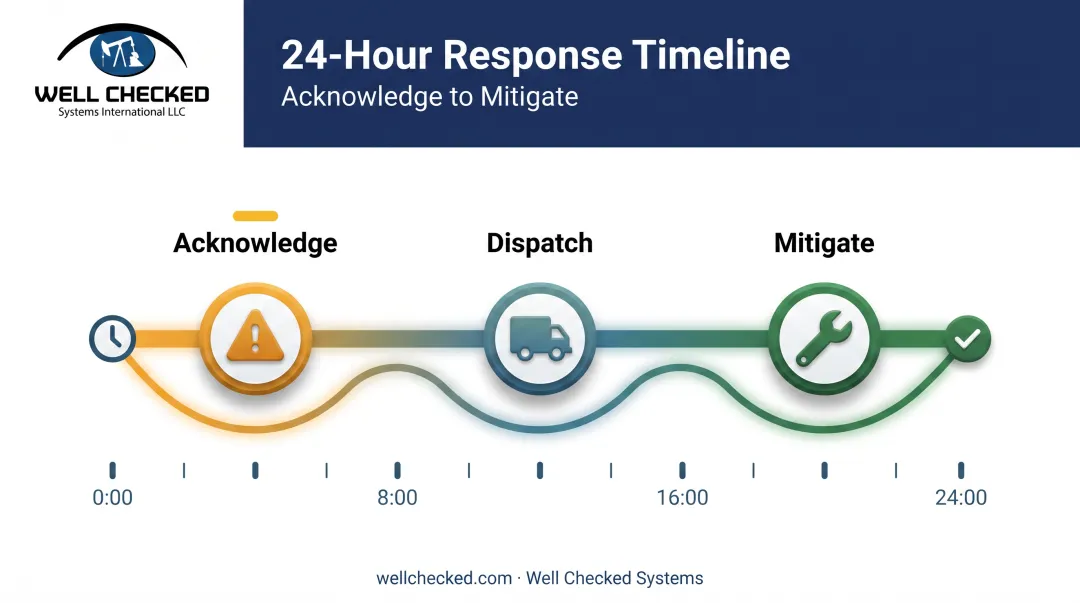

The 24-Hour Response Window
Once an anomaly is validated, timing matters. The workflow typically follows three steps:
- Acknowledge the validated alert
- Dispatch a response team
- Mitigate the issue
Completing this cycle within 24 hours can minimize or eliminate EPA fines tied to a validated methane event. That window turns a detected leak into a documented, closed-loop response rather than an open liability.
Regulatory Compliance and ESG Reporting Requirements Shaping Platform Design
EPA Subpart OOOOb's alternative-monitoring provisions permit continuous systems to replace certain prescribed surveys, but only when the method is EPA-approved and meets specific thresholds. The rule requires at least one valid methane-rate determination in every 12-hour block, with a system capable of detecting down to 0.40 kg CH4/h.
That's a meaningful bar, and it's why "real-time" marketing claims and actual regulatory approval are two different things.
Beyond EPA compliance, voluntary frameworks are raising the ceiling further:
- OGMP 2.0 Level 4/5 requires source-level inventories reconciled with independent site-level measurements, not estimates
- SASB Oil & Gas E&P metrics call for gross Scope 1 emissions data broken out by flaring, venting, and fugitive sources
- TCFD disclosure expects tracked performance against emissions targets over time
Continuous records outperform periodic snapshots for these frameworks. A quarterly LDAR report shows conditions at one moment; a continuous log shows exposure duration, timing of intervention, and trend data that auditors and investors want to see.
Zentinal IQ™ outputs data structured for OOOOb submissions, OGMP 2.0 Level 4/5 reporting, and SASB/TCFD disclosure workflows. Operators keep regulatory and voluntary reporting on the same evidentiary foundation.
Cost and ROI Considerations for Operators
Route-based site visits aren't cheap. For mid-sized to large operators, annual route-based site-visit costs typically run in the $1 million to $5 million-plus range, covering labor, vehicle expenses, and the sheer logistics of physically reaching remote wellsites on a schedule.
Autonomous monitoring changes that cost structure by:
- Cutting vehicle miles tied to routine pumper routes
- Reducing labor hours spent on manual, often unproductive site checks
- Lowering safety exposure from repeated travel to remote or hazardous locations
- Shifting field teams from "check every site" to "respond to flagged sites"
Quantification data sharpens ROI on the maintenance side. Knowing a leak's exact duration and volume—not just that it occurred—helps operators decide whether to repair a component now or fold the work into the next scheduled turnaround. That is a clearer call than working from a quarterly inspection checklist alone.
Those savings only hold if the model works beyond a pilot. Well Checked Systems' Zensory.ai™ platform currently monitors remote sites, including a confirmed deployment with a large Appalachian operator across the Appalachian Basin—evidence that operate-by-exception monitoring scales across large, multi-site portfolios.
What to Look for When Evaluating a Methane Monitoring Platform
Not all platforms marketed as "AI-powered" perform equally. A 2023 peer-reviewed controlled test of 11 continuous-monitoring solutions found false-positive rates ranging from 0% to 79% among vendors — field validation matters more than spec sheets.
When evaluating a platform, check for:
- Sensor fusion — combines video, acoustic, and gas-imaging data rather than a single sensor type
- False-alarm filtering — validated performance data, not marketing claims alone
- Edge computing reliability — autonomous operation without constant connectivity
- Regulatory reporting alignment — output maps to OOOOb, OGMP 2.0, SASB, and TCFD formats
- Scalability — consistent performance across basins and varied site configurations
- SCADA/production data compatibility — documented, secure API integration with existing systems
Then pressure-test the vendor's track record. Ask how many sites they monitor today, how long they have operated in the field, and whether they hold patents or trademarks on their detection methods. A provider running remote sites with 13-plus years of operating experience — and IP behind multi-sensor detection and quantification — carries a different risk profile than one still in pilot mode.
Frequently Asked Questions
How much does a methane detector cost?
Standalone handheld and OGI units are usually quote-based, with wide price ranges. Continuous monitoring platforms are typically priced per site per month and often offset that cost by replacing route-based inspections.
What device can detect methane?
Common options include handheld OGI cameras, fixed LWIR sensors, acoustic sensors, drones, and satellites. Modern platforms combine several of these into one multi-sensor system instead of relying on a single device.
How does AI reduce false alarms in methane monitoring?
AI builds a site-specific baseline of normal operational emissions, such as routine venting or pneumatic controller cycles, typically over a couple of days. Once that baseline is set, the system flags only readings that deviate from it as true anomalies.
What is the EPA methane rule and how does it affect monitoring requirements?
Under 40 CFR Part 60 Subpart OOOOb, operators may use EPA-approved alternative methods, including continuous monitoring, in place of some prescribed periodic surveys. Approval depends on meeting detection-threshold requirements, not vendor self-certification.
How is continuous monitoring different from traditional LDAR inspections?
Traditional LDAR gives a snapshot of site conditions about once a quarter. Continuous monitoring runs 24/7, detecting and alerting on leaks in near real time instead of waiting for the next scheduled visit.
Can methane monitoring platforms work in remote, low-connectivity wellsite locations?
Yes. Edge computing allows sensors to process and analyze data onsite, so detection and alerting continue even without constant network connectivity, a critical feature for remote basins like the San Juan or Bakken.
