That's the operational reality for most US onshore operators. Field teams struggle with balancing efficiency and safety, and the stakes on both sides keep rising. EPA's methane rule (Subpart OOOOb) now requires continuous monitoring or frequent surveys at many sites, while NIOSH data shows oil and gas extraction recorded 470 worker fatalities between 2014 and 2019, with vehicle incidents accounting for 26.8% of those deaths — many tied to routine site-to-site driving.
This article covers the equipment that needs monitoring, the technologies available, the real benefits of going continuous, and how to choose a system that fits your basin.
Key Takeaways
- Continuous monitoring replaces costly, route-based inspections and quarterly LDAR checks with real-time visibility.
- Multi-sensor AI (video, acoustic, gas) filters false alarms so teams can "operate by exception."
- Timestamped monitoring data supports EPA, OGMP 2.0, SASB, and TCFD reporting requirements.
- Fewer manual operator routes mean less worker exposure to traffic, weather, and hazardous conditions.
What Is Oil and Gas Equipment Monitoring and Why It Matters
Equipment monitoring combines sensors, software, and AI to track the performance, emissions, and safety conditions of wellsite equipment in real time. Instead of an operator driving a route and jotting down readings once a day (or once a quarter for LDAR), sensors watch continuously and flag problems as they emerge.
The purpose is straightforward:
- Catch equipment failures early, since vibration or acoustic anomalies often precede a breakdown by hours or days
- Detect leaks before they become compliance events, not after a scheduled survey finds them
- Maintain regulatory compliance without relying on periodic snapshots
- Protect workers by reducing unnecessary trips to hazardous or remote locations
NIOSH's fatality data is the clearest safety signal available for the sector: 30 to 114 oil and gas extraction workers died per year from 2014-2019, with vehicle and contact injuries as leading causes. That points directly at reducing field travel, not just tightening PPE policy.
Industry expectations have shifted accordingly. Scheduled maintenance and quarterly walk-arounds are no longer sufficient on their own. Continuous, data-driven monitoring is becoming the baseline regulators and investors expect, particularly as EPA Subpart OOOOb compliance deadlines take hold.

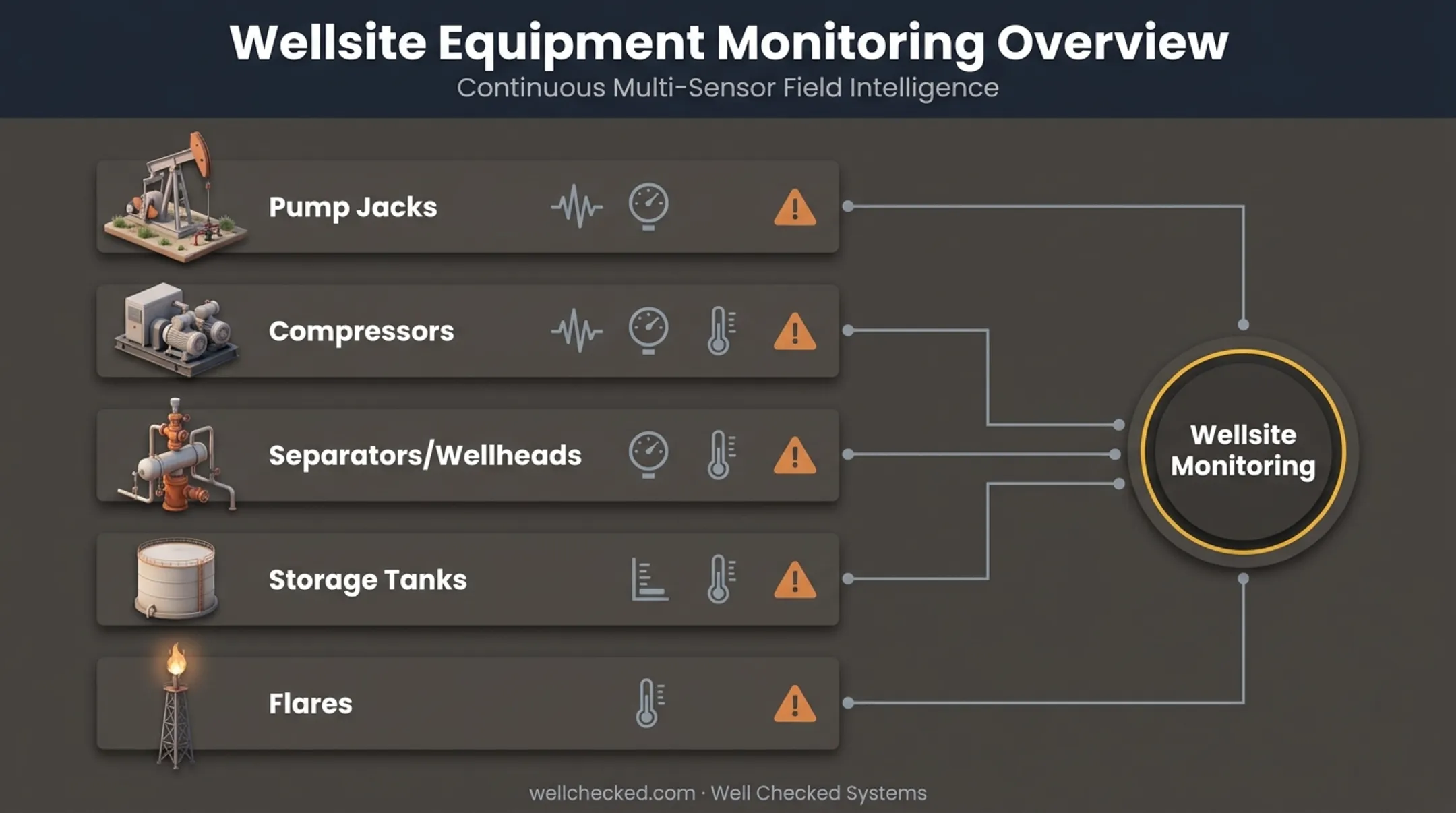

Critical Oil and Gas Equipment That Needs Monitoring
Not every asset carries the same risk profile. Some equipment classes account for the majority of fugitive emissions and unplanned downtime.
| Equipment | What to Watch | Why It Matters |
|---|---|---|
| Pump jacks / artificial lift | Vibration, temperature, sound | Early signs of mechanical wear or part failure |
| Compressors | Vibration, pressure, seals/valves | Rotating equipment prone to leaks at connectors |
| Separators & wellheads | Pressure, flow, valve state | Process abnormalities and fugitive emission sources |
| Storage tanks | Level, hatch status, methane/VOC | Thief-hatch and pressure-relief leaks are common |
| Flares | Flame/process status, methane indication | Upsets can mean vented gas going unburned |
EPA flags many of these same assets as key leak-prone components, including connectors, valves, tank hatches, wellheads, compressors, and flares. They operate in extreme heat, corrosion, and constant vibration. That wear accelerates failure and makes manual inspection both difficult and infrequent.

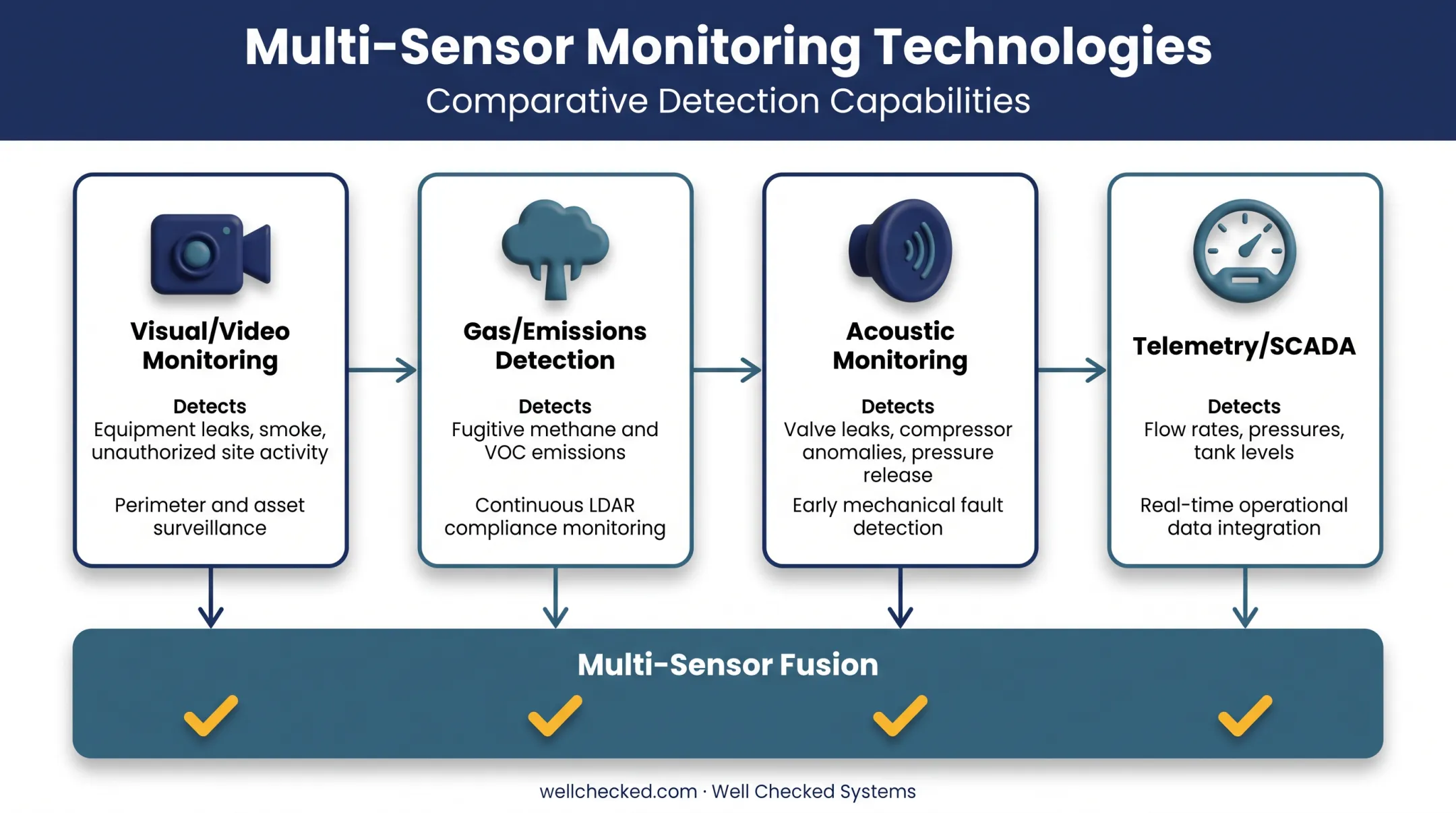

Main Types of Monitoring Used in Oil and Gas Operations
Four categories cover most of what's deployed across US onshore basins today:
- Visual/video monitoring — object detection and intrusion alerts, useful for security and equipment status checks.
- Gas/emissions detection — Optical Gas Imaging (OGI) and point methane sensors that spot fugitive leaks.
- Acoustic monitoring — listens for abnormal mechanical sounds that signal compressor or pump issues before failure.
- Telemetry/SCADA condition monitoring — aggregates pressure, temperature, and flow data from existing site instrumentation.
Each type answers a different question. Visual monitoring flags when something or someone is out of place. Gas detection catches hydrocarbons escaping into the air. Acoustic systems pick up mechanical sounds that point to compressor or pump trouble before failure. SCADA shows whether pressure, temperature, or flow have drifted off target.
Single-point sensors historically covered one category at a time. Multi-sensor fusion is the stronger approach: several data streams cross-check anomalies so the system is not stuck trusting one signal that may be a false positive.
How Gas Monitoring Systems Work and What They Detect
The basic workflow is consistent across most systems: sensors capture raw data, an edge device processes it on site, and an alert fires when a reading crosses a threshold or looks anomalous compared to a learned baseline.
Personal vs. Fixed Gas Detection
Field personnel commonly carry 4-gas monitors for personal safety, typically detecting:
- Oxygen (O2) — for oxygen-deficient or enriched atmospheres
- Combustible gas / LEL — lower explosive limit warnings
- Hydrogen sulfide (H2S) — a common and dangerous byproduct
- Carbon monoxide (CO) — often from engine exhaust or incomplete combustion
OSHA notes these instruments require regular bump testing and calibration. A failed check means the device gets pulled from service, not just flagged. These units protect the air around one worker in confined spaces and similar tasks.
Fixed gas detectors mount permanently at wellheads, tank batteries, and compressor stations. They feed continuous readings into SCADA or monitoring platforms that watch the whole facility around the clock.
Optical Gas Imaging
OGI uses infrared cameras tuned to a wavelength band where hydrocarbons absorb light, making invisible methane plumes visible on screen. It's one of two methods EPA Subpart OOOOb allows for many facility surveys, alongside EPA Method 21 instrument readings.
Well Checked's Zensory.ai™ Approach

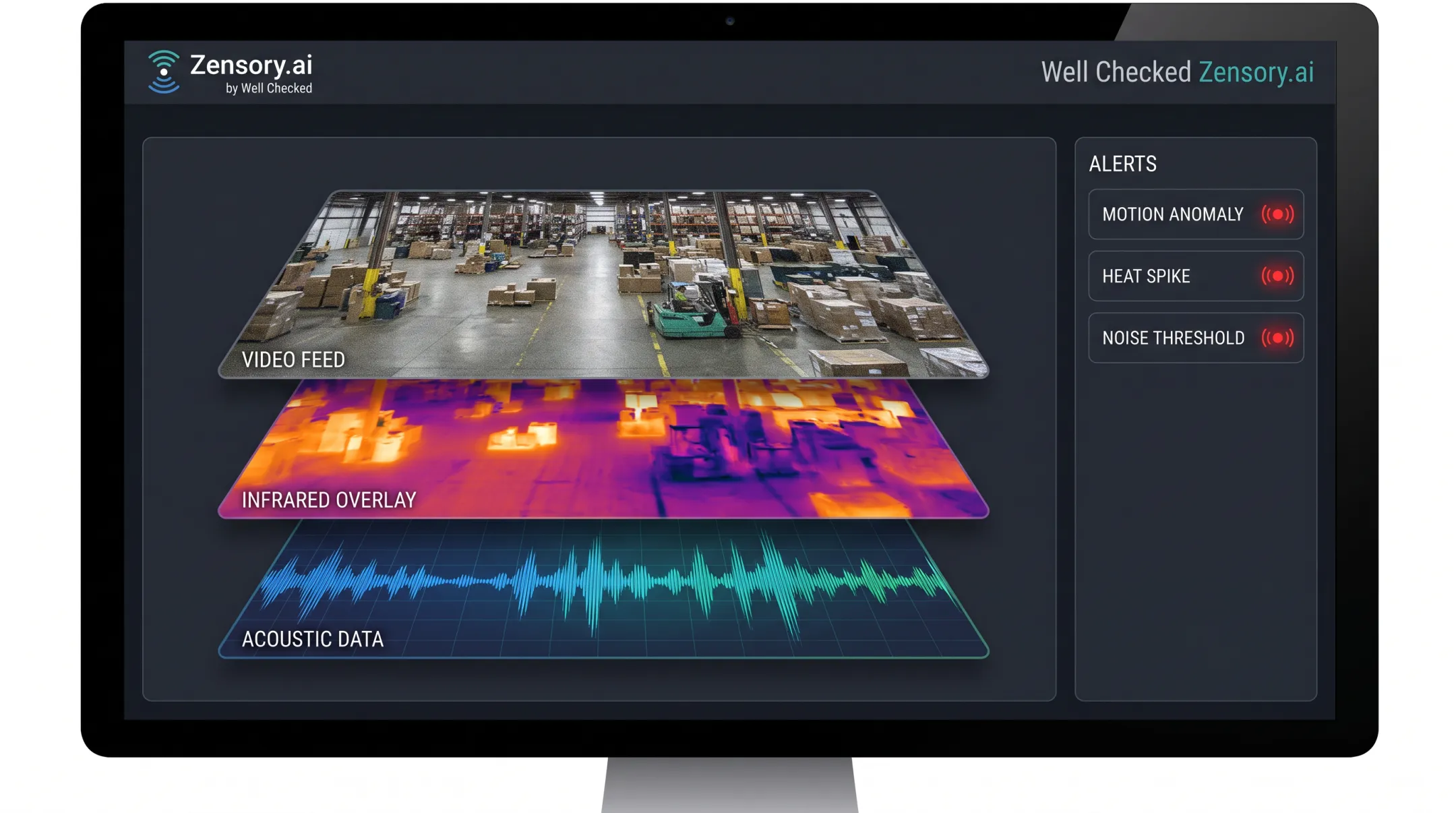

Well Checked's Zensory.ai™ platform layers three sensing modes into one system: high-resolution video, Long-Wave Infrared OGI, and acoustic sensing. Rather than treating each stream independently, an AI Site Learning cycle (roughly two days per site) builds a baseline of what "normal" looks like at that specific location.
Once that baseline exists, the platform (through its Zentinal Core™ layer) can tell the difference between a routine process vent and a genuine fugitive leak, cutting down the false alarms that plague single-sensor systems. Zentinal IQ™ then quantifies only validated events for regulatory reporting.
Key Benefits: Enhancing Efficiency and Safety
Efficiency and Cost
Route-based site visits are expensive at scale. For mid-sized to large operators, annual route-based site-visit costs can run $1 million to $5 million or more, according to Well Checked's internal benchmarking. Continuous monitoring shifts field crews from routine driving to targeted dispatch: crews visit sites because something needs attention, not because it's Tuesday.
Safety
Fewer manual routes mean less exposure to the leading causes of oilfield fatalities: vehicle incidents and hazardous site conditions. Operate-by-exception dispatch cuts unproductive windshield time, so crews spend fewer hours in bad weather, heavy traffic, and hazardous site conditions.
Compliance
Continuous, timestamped data holds up better than a periodic-snapshot LDAR report when regulators come asking. Well Checked's Zentinal IQ™ produces emissions logs, trend reports, and event reconstructions structured for:
- EPA 40 CFR Part 60 Subpart OOOOb
- OGMP 2.0 Level 4/5 reporting
- SASB Oil & Gas E&P disclosures
- TCFD climate-risk frameworks
Cost/ROI Through Better Data
Those same continuous records also close the gap periodic monitoring leaves on leak economics. Periodic checks can't tell you how long a leak ran or how much gas escaped. Quantifying duration, volume, and rate turns a vague "there was a leak" into data that supports a real repair-and-maintenance decision: fix it now, or schedule it with the next planned outage.
Response Speed

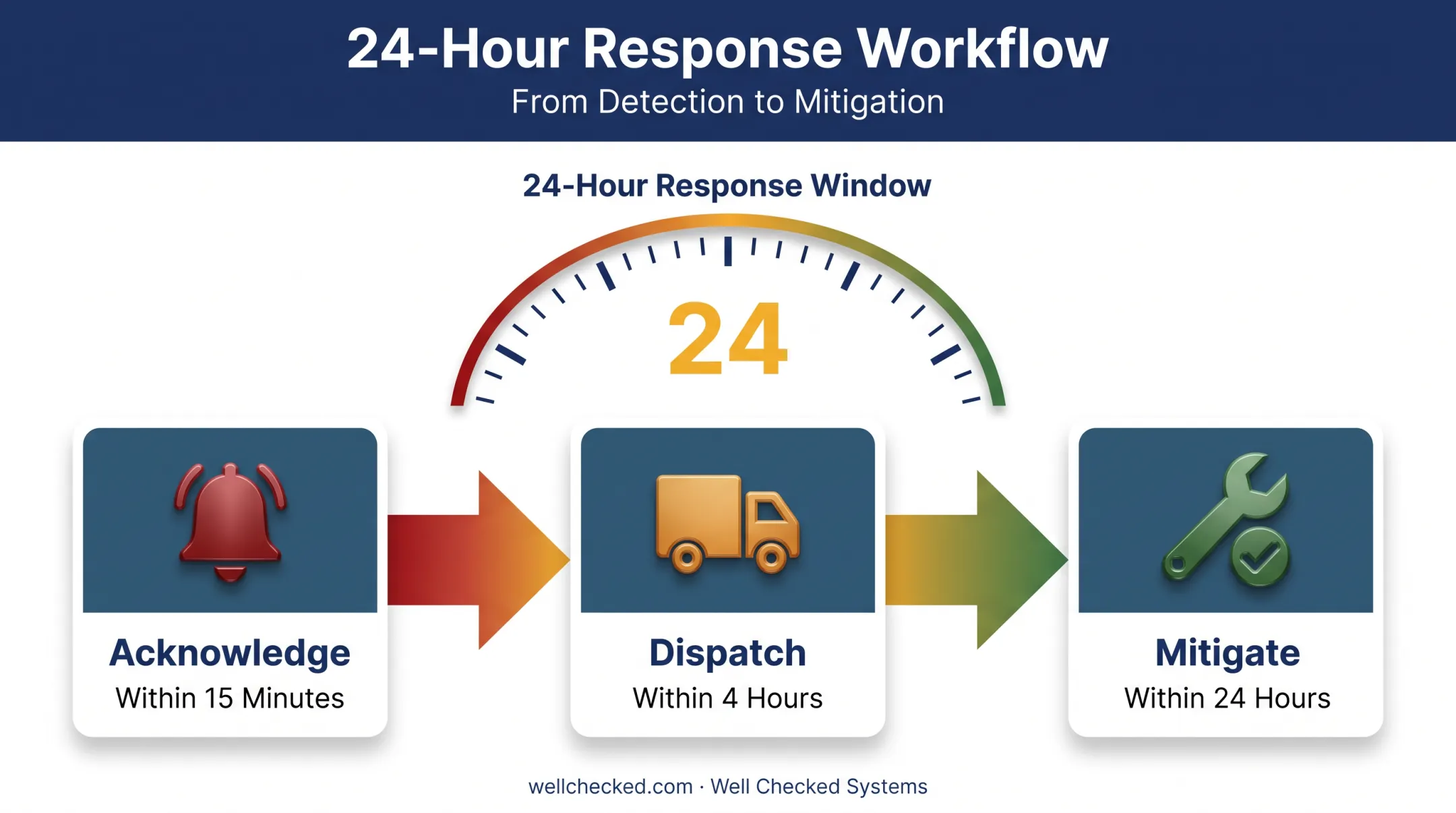

Well Checked's documented workflow follows an acknowledge-dispatch-mitigate sequence, completed within 24 hours of a validated event. That speed directly limits regulatory exposure.
The Waste Emissions Charge statute, even with its rocky regulatory history, still carries penalty exposure of $900 to $1,500 per metric ton of CO2e under the schedule EPA outlined. Congress has since pushed the effective date to 2034 rather than eliminating the underlying charge. Fast mitigation limits how much exposure accumulates.
How to Choose the Right Equipment Monitoring System
A few gates matter more than raw sensor count:
- False-alarm filtering. Ask for evidence of how the system distinguishes true anomalies from normal process emissions, not just detection sensitivity specs.
- Regulatory-defensible output. Confirm the platform structures data for EPA, OGMP 2.0, and ESG framework submissions, not just internal dashboards.
- Remote reliability. Onsite edge computing that keeps working without constant connectivity is critical in basins where cell coverage is patchy.
- Scalability across basins. A system proven at scale in Appalachia should carry the same architecture to other basins without a rebuild.
A peer-reviewed OGI study found that detection performance varies significantly by distance, wind, and operator experience. Demand pilot data specific to your sites, not just a manufacturer's lab spec sheet.
Frequently Asked Questions
How do gas monitoring systems work in oil and gas operations?
Sensors continuously capture visual, gas, acoustic, or pressure data. An edge device processes it on site and triggers alerts when readings cross a threshold or deviate from a learned baseline. Validated events then route to dashboards, SMS, or SCADA.
What is the purpose of oil and gas equipment monitoring?
Equipment monitoring catches failure early, detects leaks before they escalate, supports regulatory compliance, and reduces worker exposure to hazardous field conditions. The goal is moving from reactive fixes to proactive detection.
What are the main types of monitoring used in oil and gas operations?
The four main categories are visual/video monitoring, gas/emissions detection (including OGI), acoustic monitoring, and SCADA-based telemetry. Multi-sensor systems that combine several of these are now the standard approach.
What gases does a 4-gas monitor detect?
Standard four-gas monitors detect oxygen (O2), combustible gas/LEL, hydrogen sulfide (H2S), and carbon monoxide (CO). These are personal safety devices for confined-space work, not site-wide emissions monitors.
How often should oil and gas equipment be monitored?
Continuous monitoring watches equipment around the clock, versus traditional quarterly LDAR inspections that only capture a snapshot. Between those quarterly checks, a leak can run undetected for weeks.
What is the difference between fixed and portable gas detection systems?
Portable detectors are personal protective equipment carried by field workers into confined spaces or specific tasks. Fixed, continuous systems monitor an entire site around the clock and are designed for compliance and leak detection, not individual worker safety.
