Introduction
Methane doesn't get much time to do damage, but it makes every hour count. Compliance exposure under EPA's methane rule and quiet product loss have pushed methane from an environmental footnote to a board-level metric for upstream operators.
Yet many operators still lean on quarterly leak detection and repair (LDAR) walks and pumper routes. These methods miss intermittent leaks, nighttime venting, and anything that happens between scheduled visits. The result: compliance exposure under EPA's methane rule and quiet product loss that nobody notices until the year-end numbers come in.
This guide breaks down what detection and quantification actually mean, then walks through the six-step workflow operators use in the field. It compares the major technology categories and shows how autonomous multi-sensor platforms like Well Checked's Zensory.ai™ close the gap between periodic snapshots and continuous coverage.
Key Takeaways
- Detection finds leaks; quantification measures their rate—regulators and investors now expect both
- A small share of sites drives most emissions, so prioritization beats blanket coverage
- Methods span satellites, handheld cameras, and continuous sensors, each with different cost and coverage trade-offs
- Continuous, AI-filtered monitoring is complementing periodic inspections with regulatory-grade continuous data
What Is Methane Emissions Detection and Quantification?
Detection identifies that an emission event is happening and roughly where. Quantification goes further, measuring the emission rate (typically in kilograms per hour) so teams can prioritize repairs and file defensible reports. One tells you something is wrong; the other tells you how wrong. Well Checked's platform reflects this same split, using Zentinal Core™ for detection and Zentinal IQ™ for quantification.
These processes show up across the entire value chain:
- Upstream wellsites — wellheads, tanks, separators, compressors
- Midstream compression and processing — larger equipment, higher throughput, bigger consequences per leak
- LDAR compliance programs — the audit trail regulators expect to see
- Corporate ESG and OGMP 2.0 disclosures — where investors want measured, not estimated, numbers
Approach Categories Worth Knowing
Three distinctions matter when comparing methods:
- Point-source vs. area-flux — resolving a single leaking valve versus estimating emissions across a wide region
- Top-down vs. bottom-up — inferring total emissions from atmospheric readings versus summing individual source estimates
- Periodic vs. continuous — a scheduled snapshot versus an always-on record
Most compliance programs end up blending all three, since no single method covers every gap.
Why Accurate Detection and Quantification Matters for Oil & Gas Operators
The regulatory bar has risen sharply. EPA's final methane rule, 40 CFR Part 60 Subpart OOOOb, governs new and modified sources with routine monitoring requirements that scale by site complexity. Small wellhead-only sites need quarterly audio, visual, olfactory (AVO) surveys, while sites with major production equipment require bimonthly AVO plus quarterly optical gas imaging (OGI).
Layer on top of that OGMP 2.0's Level 4 and 5 reporting, which demands measurement-based data rather than emission-factor estimates, plus SASB and TCFD disclosure obligations. Estimates no longer satisfy any of these frameworks.
The Super-Emitter Problem

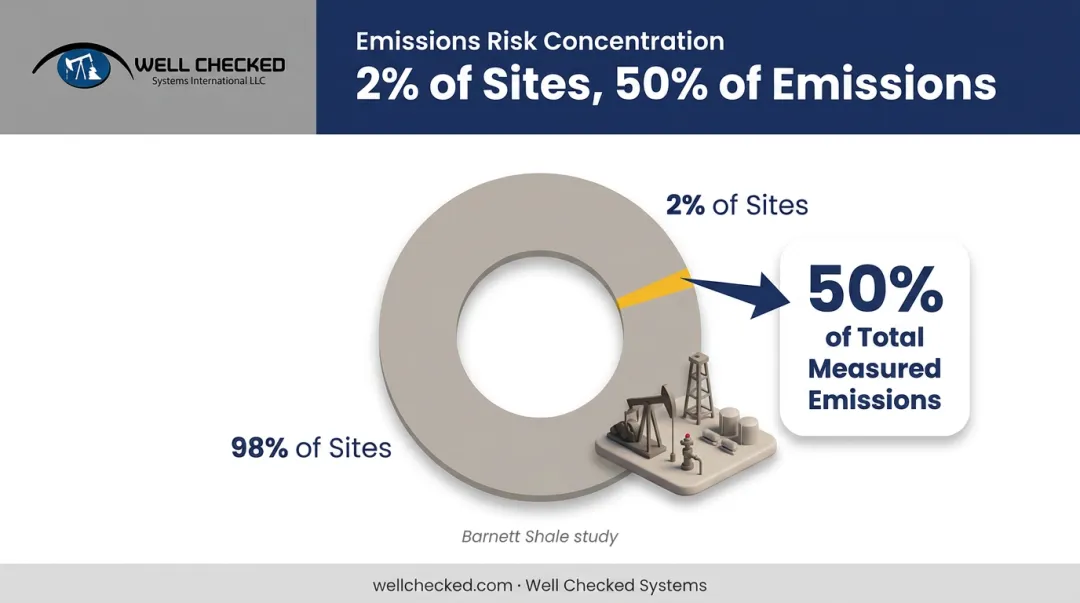

Emissions aren't evenly distributed. A Barnett Shale study found that the highest-emitting 2% of production sites accounted for 50% of measured site emissions at any given snapshot in time. The study's authors noted the identity of those top emitters shifts over time, which is exactly why continuous screening matters more than a one-time inventory (source).
The Cost of Doing It the Old Way
Route-based manual inspection programs (pumper routes and quarterly LDAR combined) commonly run $1 million to $5 million or more annually for mid-sized to large operators, according to Well Checked's internal benchmarking across its operator customer base. That figure buys:
- Vehicle costs, fuel, and driver hours across sprawling well portfolios
- OGI camera ownership or rental and technician training
- Repair dispatch and resurvey labor
- Recordkeeping and reporting overhead
Missed leaks compound the problem twice over: once as lost product, once as potential EPA fine exposure when a super-emitter event goes unnoticed between visits.

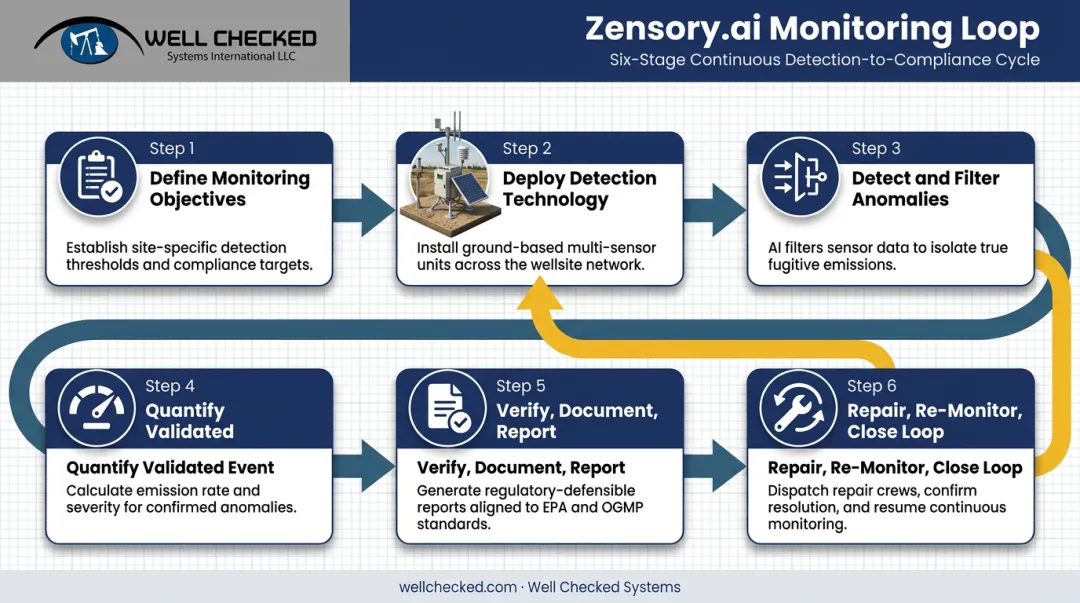

How Methane Detection and Quantification Works — Step by Step
This is the workflow operators run in the field. The most common failure point is skipping validation before quantifying or reporting an event, a shortcut that erodes defensibility fast.
Define Monitoring Objectives and Regulatory Scope: Identify which sites, equipment, and regulatory pathways (EPA, state SIP/FIP, OGMP 2.0) the program must satisfy. This shapes everything downstream, from sensor selection to reporting cadence.
Deploy Detection Technology: Select the sensing layer that matches site criticality: satellite screening, aerial surveys, handheld OGI, or fixed continuous sensors. Higher-materiality sites generally justify denser, always-on coverage.
Detect and Filter True Anomalies: Not every emission is a leak. Routine venting and process emissions look different from fugitive leaks, and AI-based pattern learning helps separate the two, avoiding the alert fatigue that plagues threshold-only systems.
Quantify the Validated Event: Only after an event is confirmed real does quantification begin. Methods include IME inversion, mass balance, and tracer-ratio techniques, each producing an emission rate defensible enough for regulatory submission.
Verify, Document, and Report: Record duration, volume, and source attribution in a format built for regulatory submission and third-party verification. Audit-readiness depends entirely on how well this step is structured.
Repair, Re-Monitor, and Close the Loop: Dispatch a repair crew, then re-scan to confirm the leak is resolved. Feed that outcome back into the site's monitoring baseline. This turns a one-off fix into a continuously improving program.
Comparing Methane Detection and Quantification Technologies
No single technology covers the whole picture. Here's how the major categories stack up.
Satellite and Aerial Methods
Two distinct types exist here:
- Broad-area flux satellites provide daily global coverage with pixels around 5.5 x 7 km, useful for regional hotspot screening but not equipment-level attribution
- Targeted point-source satellites offer higher resolution and can attribute emissions to a specific facility, but with narrower swaths and revisit intervals often running 10-16 days
Limitations: cloud cover, tasking constraints, and a detection floor that misses smaller or intermittent leaks between passes.
Ground-Based and Handheld Methods
OGI cameras, tracer-correlation surveys, and mobile mass-balance flights remain accurate for equipment-level localization. They're also labor-intensive and episodic by nature: a technician can only be in one place at a time.
These methods stay essential for terrain satellites can't reliably cover: offshore platforms, mountainous regions, and snow-covered sites where passive optical retrieval struggles.
Continuous Autonomous Monitoring
Fixed, always-on multi-sensor systems are emerging as the standard for closing the gap between snapshots. They catch nighttime leaks and intermittent events that any periodic survey, whether satellite, aerial, or handheld, will simply miss by timing alone.
Regulators and investors increasingly expect both detection and quantification from the same data source. Platforms like Well Checked Systems' Zensory.ai™ address this directly, pairing Zentinal Core™ detection with Zentinal IQ™ quantification so operators aren't stitching together mismatched tech stacks that lengthen verification timelines and complicate audit response.

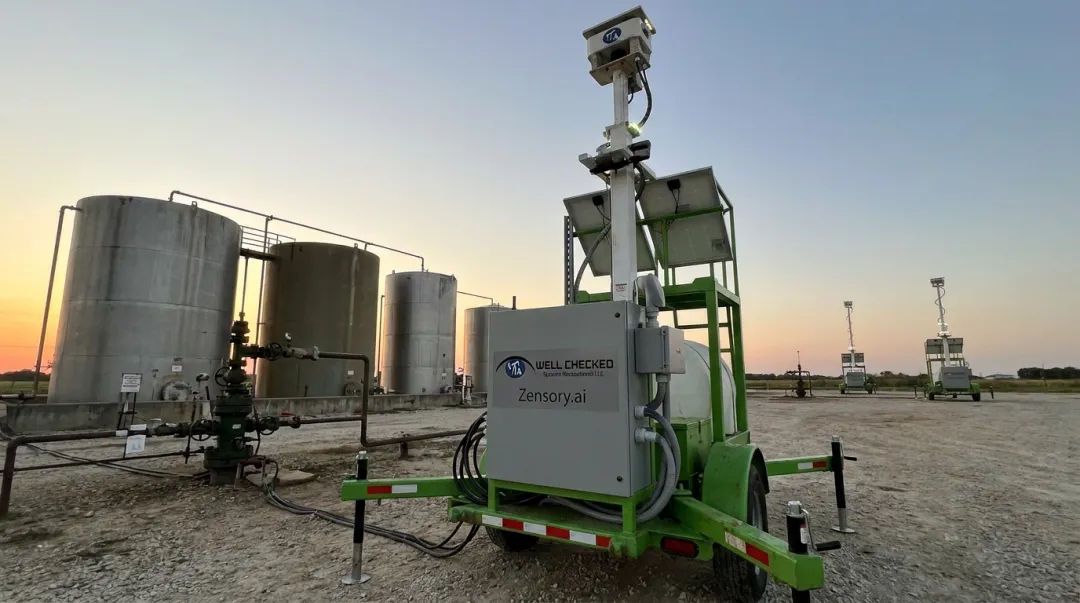

How Well Checked's Zensory.ai™ Platform Delivers Detection-to-Quantification Compliance
Well Checked built its Zensory.ai™ platform around a three-tier architecture that mirrors the detection-then-quantification logic outlined above:
- Zentinal Ops™ delivers visual and acoustic equipment intelligence: high-resolution video, object recognition, acoustic anomaly detection, and actionable alerts
- Zentinal Core™ handles multi-sensor autonomous detection: continuous surveillance that filters false alarms and validates true fugitive anomalies; supports OGMP 2.0 Level 3
- Zentinal IQ™ activates only after Core validates an event, applying LWIR OGI-based volumetric estimation with AI-refined plume analysis to produce regulatory-defensible emission rates
Multi-Sensor Fusion, Running Continuously
Alongside scheduled inspections, the platform fuses three sensing modalities around the clock:
- Sight: high-resolution, AI-enabled video providing 360° coverage
- Sound: acoustic anomaly detection that flags equipment malfunction before failure (an area where Well Checked has a USPTO provisional patent filing covering its acoustic anomaly detection technology)
- Smell: Long-Wave Infrared Optical Gas Imaging for day-and-night methane and volatile organic compound (VOC) detection, at roughly one-third the cost of traditional mid-wave IR systems. Well Checked has a USPTO provisional patent filing for Detecting and Quantifying Fugitive Methane and Vapor Emissions Using Infrared Imaging and Machine Learning.
Each site first runs through a ~2-day AI Site Learning cycle, during which the system catalogs normal process emissions, such as routine venting and expected equipment sounds. This baseline lets it later isolate genuine anomalies rather than flooding operators with noise.
Proven at Production Scale
Well Checked's platform currently monitors remote wellsites in six basins, including a confirmed 220-site deployment across the Appalachian Basin, processing 1,500+ videos per site per day. This is an active, ongoing operation, not a pilot program.
Zentinal IQ™ output is structured for EPA methane rule alternative-monitoring pathways, OGMP 2.0 Level 4/5 measurement-based reporting, and SASB/TCFD disclosure formats. Instead of a stack of periodic-snapshot LDAR reports, operators get one continuous, defensible record that confirms a leak was caught rather than leaving it to chance.
Frequently Asked Questions
Can LiDAR detect methane?
Yes. Differential-absorption LiDAR compares laser returns on and off a methane absorption line to measure plume concentration, mostly from aircraft or satellites. Cost, weather sensitivity, and detection thresholds for smaller leaks still limit its use.
Is there such a thing as a methane detector?
Absolutely — the category spans handheld laser and OGI devices, fixed continuous sensors, and satellite instruments. Each suits a different monitoring scale, from single-valve checks to basin-wide screening.
What's the difference between methane detection and methane quantification?
Detection identifies that a leak exists and roughly where. Quantification measures how much is being emitted, typically in kg/hour. Compliant reporting requires both.
How do satellites detect methane emissions from oil and gas sites?
Passive satellite instruments measure sunlight absorbed by methane in specific infrared wavelengths, then convert that absorption into atmospheric concentration data. They excel at spotting large super-emitter events but often miss smaller or intermittent leaks.
What is a methane "super-emitter" and why does it matter for compliance?
EPA defines a super-emitter event as one at or near 100 kg CH4/hour, detected by approved remote sensing. Since a small number of these events can dominate a basin's total reported emissions, catching them fast is critical to compliance.
How often should methane emissions be monitored to stay EPA compliant?
Requirements vary by rule pathway and site complexity: quarterly at small sites, more frequent at larger ones. Continuous or near-continuous monitoring is increasingly favored because it catches intermittent leaks that scheduled inspections routinely miss.
