Introduction
Managing thousands of remote wellsites across vast acreage has never been a simple problem. Traditional pumper-route visits and quarterly leak detection and repair (LDAR) inspections give operators periodic snapshots — but wells don't malfunction on a schedule. Slow leak buildup, overnight equipment failures, and emissions events that self-resolve before a human arrives all fall through the gaps.
EPA's advanced methane technology program recognizes continuous monitoring as one available approach for improving visibility between scheduled surveys. Use for compliance depends on an EPA-approved method and the operator's applicable monitoring plan.
IoT sensors and machine learning address this gap from different angles. Sensors provide the continuous data stream. ML provides the intelligence to distinguish a fugitive-emission anomaly from controlled venting, pressure cycling, or any of the other routine process events that would otherwise trigger constant false alarms. This article covers how modern IoT well monitoring systems are structured, what machine learning specifically adds, the key upstream applications, and why regulatory defensibility is now inseparable from monitoring strategy.
Key Takeaways:
- Periodic LDAR inspections can miss intermittent events between visits; continuous monitoring can improve visibility during those intervals
- ML-based anomaly detection reduces false-positive alert fatigue by learning each site's individual operational baseline
- Multi-sensor integration (LWIR optical gas imaging (OGI), acoustic, visual) delivers coverage no single sensor type can match
- Applicable EPA and measurement-based reporting workflows may require more information than a detection record alone
- The "operate by exception" model reduces field dispatch costs while concentrating human effort where it's genuinely needed
What Is an IoT-Based Oil Well Monitoring System?
An IoT oil well monitoring system is a network of field-deployed sensors, edge computing devices, and cloud analytics software that continuously collects, transmits, and analyzes wellsite data. The contrast with legacy inspection models is fundamental: periodic inspections capture a snapshot; IoT monitoring captures everything in between.
From SCADA to Modern IoT Architecture
Legacy SCADA (Supervisory Control and Data Acquisition) systems gave operators centralized visibility into discrete process variables — pressure, flow, temperature — using configured alarms and historian data. For its time, SCADA reduced manual rounds and gave control rooms a single view of critical process variables.
Modern IoT architectures build on that foundation rather than replacing it. What they add over SCADA is concrete:
- Distributed sensing across multiple modalities (acoustic, optical, thermal)
- Edge computation at the wellsite level, reducing bandwidth and latency
- Broader connectivity options suited to remote locations
- Cloud analytics that surface patterns across entire well portfolios
Safety-critical control logic stays in the control layer. IoT extends the monitoring envelope, not the control architecture.

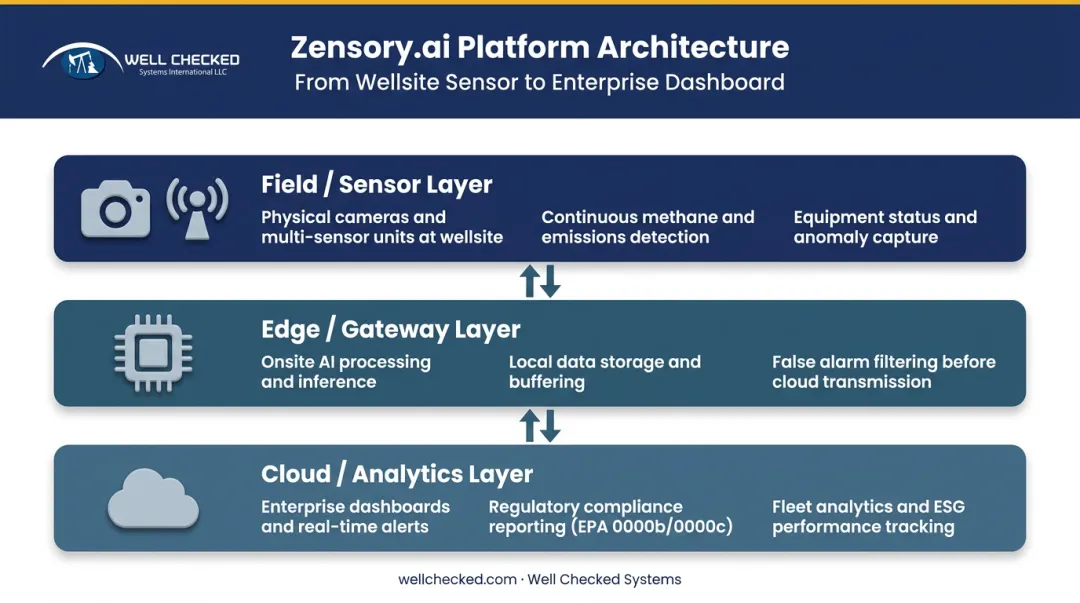

The Three-Layer Architecture
Most modern platforms share a consistent structural model:
- Field/sensor layer — Physical devices deployed at the wellsite: cameras, gas imaging sensors, acoustic equipment monitors, and other instruments generating continuous data streams
- Edge/gateway layer — Onsite processors that analyze data locally, reduce bandwidth requirements, and maintain detection capability even when cloud connectivity is intermittent
- Cloud/analytics layer — Fleet-level dashboards, alerts, model training, compliance reporting, and work order integration
Why "Continuous" Is the Operative Word
Continuous monitoring catches what periodic inspection cannot: slow leak buildup over days, equipment failures that occur at 2 AM, and emissions events that self-resolve before the next scheduled visit. The EIA reports 918,481 producing U.S. oil and gas wells in 2024, with roughly 78% producing 15 BOE/day or less — a well population where the economics of frequent manual inspection are simply untenable at scale.
Core Components of a Modern IoT Well Monitoring System

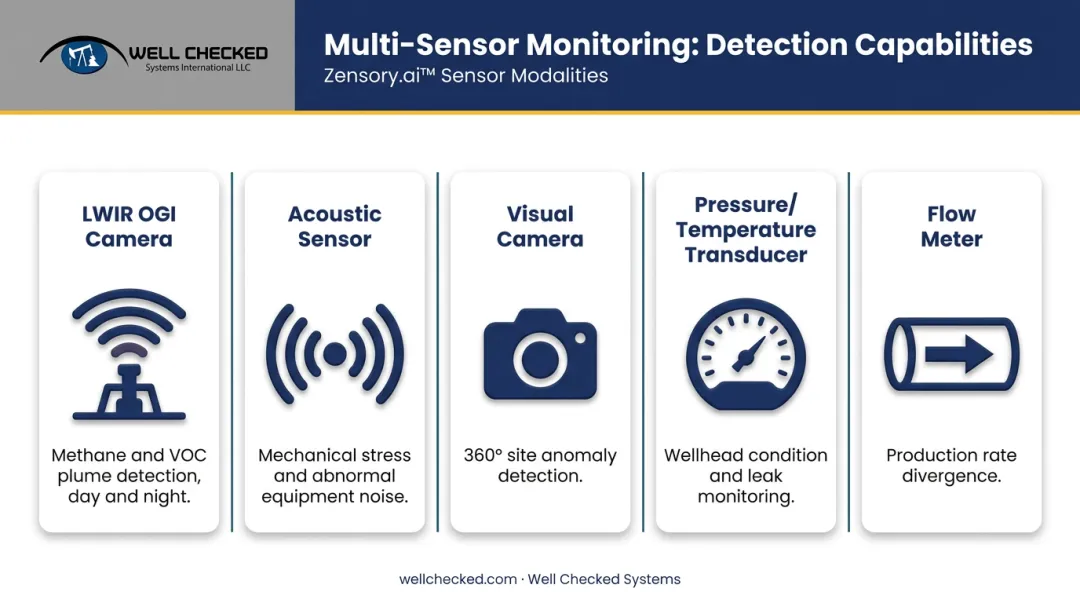

The Sensor Layer
Different failure modes and emission types are only visible to specific sensing modalities. No single sensor type covers everything. A well-designed system integrates multiple instrument classes:
- LWIR OGI cameras — Long-Wave Infrared Optical Gas Imaging for continuous methane detection, day and night
- Acoustic equipment sensors — AI-powered audio monitoring that detects abnormal equipment sound signatures indicative of mechanical stress or failure
- High-resolution visual cameras — 360° site coverage with AI object detection for identifying site-level anomalies
- Pressure and temperature transducers — Wellhead condition monitoring for leak, restriction, and operating-envelope checks (commonly integrated alongside IoT platforms via SCADA)
- Flow meters — Production measurement to detect rate divergence from expected output
Well Checked's Zensory.ai™ platform combines LWIR OGI cameras, acoustic anomaly AI monitoring, and high-resolution video into a single multi-sensor fusion architecture — covering video, acoustic, and infrared sensing as three independent data streams that cross-validate any detected event.
LWIR cameras deliver continuous methane detection at a substantially lower cost than traditional MWIR solutions, lowering the cost barrier for continuous deployment across large well portfolios.
Edge Computing: The Wellsite Intelligence Layer
Edge computing moves AI analysis to the wellsite rather than routing raw data to the cloud. For remote upstream operations, this matters on two fronts: speed and uptime.
A fast-developing emissions event cannot wait for a cloud round-trip. Remote wellsites across the Permian, Bakken, and Appalachian basins also face intermittent connectivity — and any system that depends on a live cloud link for its detection logic goes dark the moment that connection drops.
The Zensory.ai™ platform is built around this reality. Key edge-layer capabilities include:
- Onsite AI processing — all detection, false-alarm filtering, and classification run on local edge-compute nodes
- Offline operation — the system functions without continuous network connectivity
- Automatic data sync — when connectivity restores, locally stored records upload without gaps or dropped events
How Machine Learning Elevates IoT Monitoring Beyond Basic Sensor Alerts
The Fundamental Limitation of Threshold-Based Alerting
Basic IoT systems set alerts when a value exceeds a fixed limit. The problem is that normal wellsite operations — controlled venting, pressure cycling, separator activity, pigging — regularly produce readings that look anomalous but aren't. The result is a chronic false-positive problem that makes alert streams operationally useless. Field teams learn to ignore them.
Site-Specific Baseline Learning
ML-based monitoring builds a behavioral fingerprint of what "normal" looks like at each individual well — including routine process emissions, expected acoustic signatures, and typical visual patterns — rather than applying a generic industry threshold.
Zentinal Core™ establishes this baseline through an approximately 2-day AI Site Learning cycle per site. During that window, the platform processes 1,500+ videos per site per day alongside continuous LWIR and acoustic streams. Once the baseline is set, the system focuses alerts on deviations from that site's learned norm — prioritizing higher-confidence anomalies within normal operational activity, not reacting to every spike.

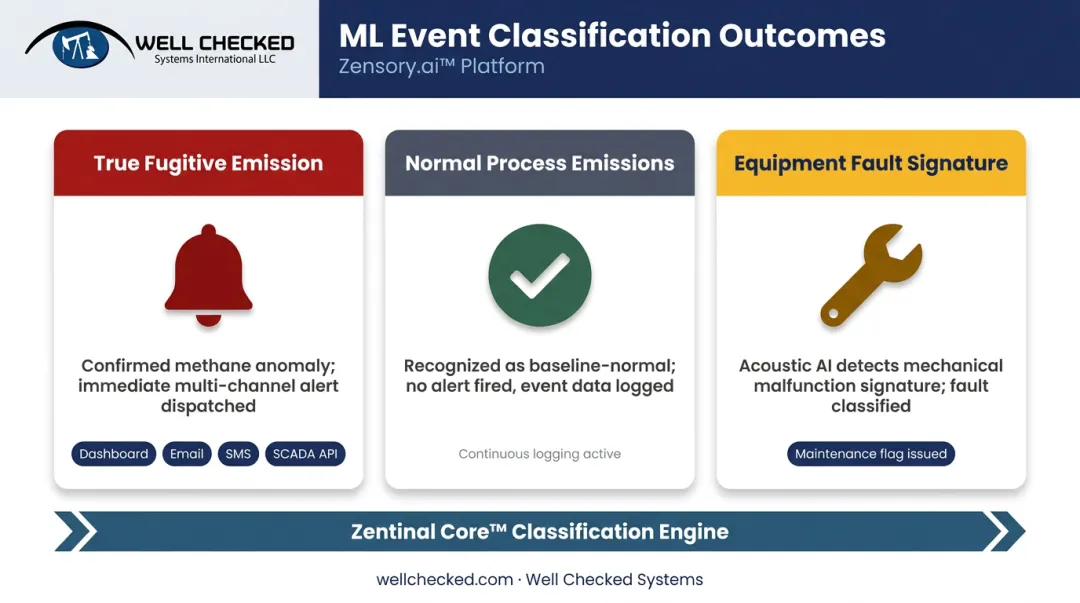

Anomaly Detection and Event Classification
Detection alone isn't enough — classification is what makes alerts actionable. Zentinal Core™ distinguishes between three distinct event categories:
| Event Type | System Response |
|---|---|
| System-validated fugitive anomaly | Alert fired via Dashboard, email, SMS, SCADA API |
| Normal process emissions (venting, cycling, etc.) | No alert — recognized as baseline-normal; data still collected |
| Equipment fault signature | Detected via acoustic anomaly AI, classified as equipment malfunction |
This classification layer enables "operate by exception" workflows: field teams dispatch only when the system has already validated that intervention is warranted.
Predictive Maintenance as a Second ML Application
The same acoustic and vibration data that flags equipment faults can also identify early-stage degradation before it causes downtime. A 2023 upstream test-rig study reported 90% overall accuracy for severe anomalies using an unsupervised ML model — though detection performance for lower-severity faults was less consistent, meaning aggregate accuracy scores can mask gaps in catching subtler failure modes. Evaluating models on per-event recall, not just overall accuracy, gives operators a more reliable picture of real-world performance.
Key Monitoring Applications in Upstream Oil & Gas
Methane Emissions Detection
Long-Wave Infrared OGI cameras detect methane plumes continuously — day and night — capturing diffuse fugitive leaks from valve packing, flanges, tanks, and other components that conventional point sensors miss. Point sensors require the gas plume to physically reach the sensor location. OGI cameras image the plume itself.
EPA's advanced-technology framework for continuous monitoring includes a detection capability threshold of 0.40 kg CH4/hour with valid emissions data for each 12-hour block and transmission at least every 24 hours — a performance standard that informs how continuous monitoring platforms should be designed and validated.
Equipment Health and Safety Monitoring
Acoustic sensors detect the sound signatures that precede equipment failure: abnormal mechanical noise, early-stage bearing wear, pressure relief valve behavior. The Zensory.ai™ platform's acoustic anomaly AI layer works alongside LWIR and visual monitoring through multi-sensor fusion, so each sensor modality can cross-reference the others when classifying an event.
Continuous video monitoring adds a second safety layer. Each camera feed contributes to:
- Identifying site conditions that require immediate attention
- Generating timestamped records that support incident investigation
- Building a complete operational log to replace fragmented inspection reports
Remote Site Security and Compliance Documentation
Beyond equipment health, continuous sensor coverage supports site security and regulatory defensibility. Persistent video and OGI archives can support unauthorized-access review, off-hours activity review, and operator responses to EPA or state-agency information requests. Traditional quarterly LDAR snapshots cannot reconstruct what happened between inspection dates. A continuous record can.
Regulatory Compliance and ESG Reporting
The EPA Methane Rule Landscape
EPA 40 CFR Part 60 Subpart OOOOb covers new, modified, and reconstructed crude oil and natural gas facilities with construction commencing after December 6, 2022. It imposes monitoring, detection, and reporting obligations on upstream operators.
Continuous ground monitoring may be used within an alternative compliance pathway only when the specific technology and protocol are EPA-approved and the operator follows applicable rule or state-plan requirements. Detection thresholds, data-validity criteria, reporting intervals, investigation, and repair obligations are defined by the approved method and monitoring plan; continuous operation alone does not establish compliance.
Well Checked's data output is designed to support operator reporting when the specific alternative method and monitoring plan are EPA-approved and applicable state-plan requirements are met. Final compliance determinations and submissions remain the operator's responsibility.
Detection vs. Quantification: A Critical Distinction
Some regulatory and measurement-based reporting workflows require more than proof that an emission was detected, including documented estimates of event duration and released volume.
The major reporting frameworks each set a specific bar:
- OGMP 2.0 Level 4 — source-level quantification using source-specific activity data or direct measurement
- OGMP 2.0 Level 5 — site-level measurement with reconciliation of top-down and bottom-up results
- SASB EM-EP-110a.1 — gross global Scope 1 emissions with methane percentage disclosed
Periodic inspection snapshots can leave gaps in the event record used for these workflows.
Zentinal IQ™ addresses this gap by quantifying emissions duration, volume, and rate — but only after Zentinal Core™ has validated the event. This sequencing matters: quantification that fires on false positives generates compliance records that don't reflect real events. Zentinal IQ™ produces output structured for EPA, OGMP 2.0 Level 4/5, SASB submissions.
Investor and Lender Scrutiny
Lenders and institutional investors increasingly ask for measured, verifiable methane data rather than engineering estimates. Emissions data quality has become a capital-markets and cost-of-capital question as much as a compliance one. Public E&Ps now face disclosure expectations from sustainability frameworks and lenders who treat emissions data quality as a proxy for operational and governance risk.
The Business Case: Moving to Autonomous Operations
Quantifying the Status Quo
Mid-sized to large U.S. operators can incur substantial annual costs for pumper-route site visits, driven by vehicle costs, labor hours, and the operational overhead of scheduling regular inspections across large well portfolios. That spend produces periodic data snapshots — and still misses the majority of intermittent emissions events.
Field personnel driving remote routes also face real physical risk — traffic accidents, adverse weather, and hazardous site conditions. Every unproductive site visit is a safety exposure with no operational return.

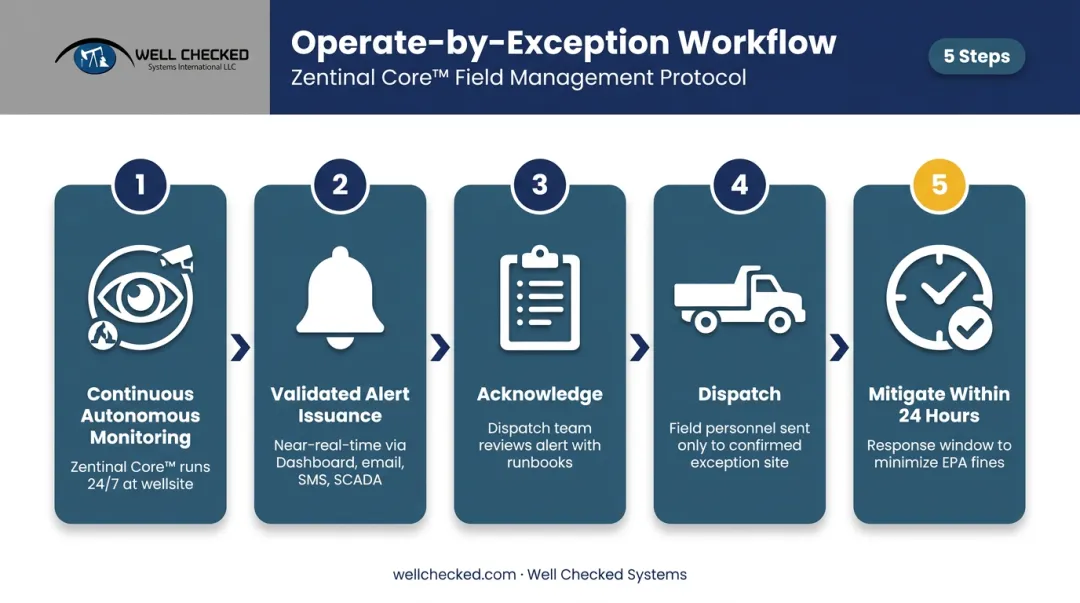

The Operate by Exception Model
IoT and ML monitoring can reduce reliance on fixed-route field schedules by supporting intelligence-driven dispatch. The workflow looks like this:
- Continuous autonomous monitoring — Zentinal Core™ runs 24/7 at the wellsite, independent of network connectivity; supports OGMP 2.0 Level 3
- Validated alert issuance — Near-real-time notification via Dashboard, email, SMS, and SCADA API when a true anomaly is detected
- Acknowledge — Dispatch team reviews the validated alert using Well Checked's response-workflow templates and runbooks
- Dispatch — Field personnel are sent to the specific site with a prioritized exception rather than solely on a fixed route
- Mitigate within 24 hours — An operator-defined response target intended to support timely investigation and documentation
The ROI case covers four areas:
- Regulatory-risk management — A 2024 settlement with one producer included a substantial civil penalty for alleged Clean Air Act violations
- Reduced unplanned downtime — Predictive maintenance alerts catch equipment failures before they escalate
- Lower inspection labor costs — Exception-based dispatch eliminates routine route overhead
- Capital and disclosure readiness — Documented emissions data supports lender and investor reporting for publicly traded operators
Well Checked's 220-site deployment in the Appalachian Basin demonstrates this model at scale — 1,500+ videos analyzed per site per day, continuous multi-sensor monitoring across a large remote well portfolio, all operating without dependence on continuous network connectivity.
For operators evaluating the transition, Well Checked offers a fixed-fee pilot program that generates a baseline cost analysis, methane leak detection log, false-alarm-rate comparison, and scale-up business case before full deployment.
Frequently Asked Questions
What is SCADA in oil and gas?
SCADA (Supervisory Control and Data Acquisition) is a control system architecture that collects data from field instruments and provides centralized monitoring and control of process variables like pressure, flow, and temperature. Modern IoT platforms extend SCADA by adding edge AI processing, multi-modal sensing, and cloud analytics while keeping safety-critical control functions in the appropriate control layer.
How does machine learning improve oil well monitoring compared to basic IoT?
Basic IoT triggers alerts when a sensor value crosses a fixed threshold, producing high false-positive rates because normal wellsite operations routinely look anomalous. ML learns each site's operational baseline and classifies deviations for operator review, helping separate likely fugitive anomalies or equipment faults from routine process events so teams can prioritize higher-confidence issues.
What sensors are used in IoT-based oil well monitoring systems?
Common sensor types include pressure and temperature transducers, flow meters, vibration and acoustic equipment sensors, and optical gas imaging cameras. LWIR OGI cameras provide continuous day/night methane detection. Multi-sensor integration is essential because different failure modes and emission types are only visible to specific sensing modalities; no single sensor covers everything.
What is the difference between continuous monitoring and periodic LDAR inspections?
Periodic LDAR inspections capture site conditions on a fixed schedule (quarterly or annually). Continuous monitoring records wellsite conditions 24/7, catching events that occur between scheduled visits including slow leaks, overnight failures, and emissions that self-resolve before the next inspection. EPA provides a review and approval pathway for advanced methane technologies, including certain continuous-monitoring approaches. Compliance use requires an EPA-approved method and the operator's applicable monitoring plan.
How does IoT well monitoring help with EPA methane rule compliance?
Continuous monitoring can support reporting under EPA 40 CFR Part 60 Subpart OOOOb when the specific alternative method and monitoring plan are EPA-approved and applicable state-plan requirements are met. Zentinal IQ™ provides documented event-duration and volume data designed to support those operator workflows. Operators remain responsible for confirming the applicable pathway and submission requirements.
What does "operate by exception" mean in oil and gas operations?
Operate by exception means field personnel are dispatched only when an autonomous monitoring system has detected and validated a true anomaly rather than on a fixed route regardless of site status. This concentrates human effort where it's actually needed, reduces unproductive vehicle miles, and lowers both operational costs and personnel safety exposure from road travel.
