A 2023 peer-reviewed study modeling Permian Basin facilities found that a 5.5 kg/hour leak (about 6 mcf/d) active for 91 days — roughly half the gap between annual inspections — released the same volume of methane as the highest aircraft-measured Permian emission rate detected in under an hour. Every continuous-monitoring scenario in that study outperformed 12-times-per-year OGI inspections.
That's the gap continuous monitoring is built to close. This article covers what traditional LDAR does well, where it falls short, how continuous monitoring actually works, and how operators are making the switch.
Key Takeaways
- Traditional LDAR relies on periodic manual surveys, leaving detection blind spots between visits
- Continuous monitoring detects emissions in near real time with always-on sensors (video, OGI, acoustic)
- EPA Subpart OOOOb allows alternative-monitoring compliance pathways
- Operators can cut route-based site-visit costs while building a stronger regulatory audit trail
What Is Traditional LDAR and Why It's Reaching Its Limits
LDAR (Leak Detection and Repair) follows three stages: identification, monitoring, and repair. Identification typically uses Method 21 with a flame ionization or photoionization detector, or Optical Gas Imaging under EPA's Alternative Work Practice.
Inspection cadence is set by regulation, not operator preference:
- 40 CFR 60.5397b (OOOOb): Quarterly OGI or Method 21 for most production sites, with consecutive surveys at least 60 days apart
- 40 CFR 61 Subpart V: Monthly pump monitoring, monthly valve checks (quarterly after two clean months)
- 40 CFR 63 Subpart HH: Quarterly pressure-relief device checks, plus inspection within five days of any release
Most operators execute this through lease operator routes — technicians driving fixed circuits between wellsites, often in rugged, remote terrain.
Core Limitations Operators Face Today

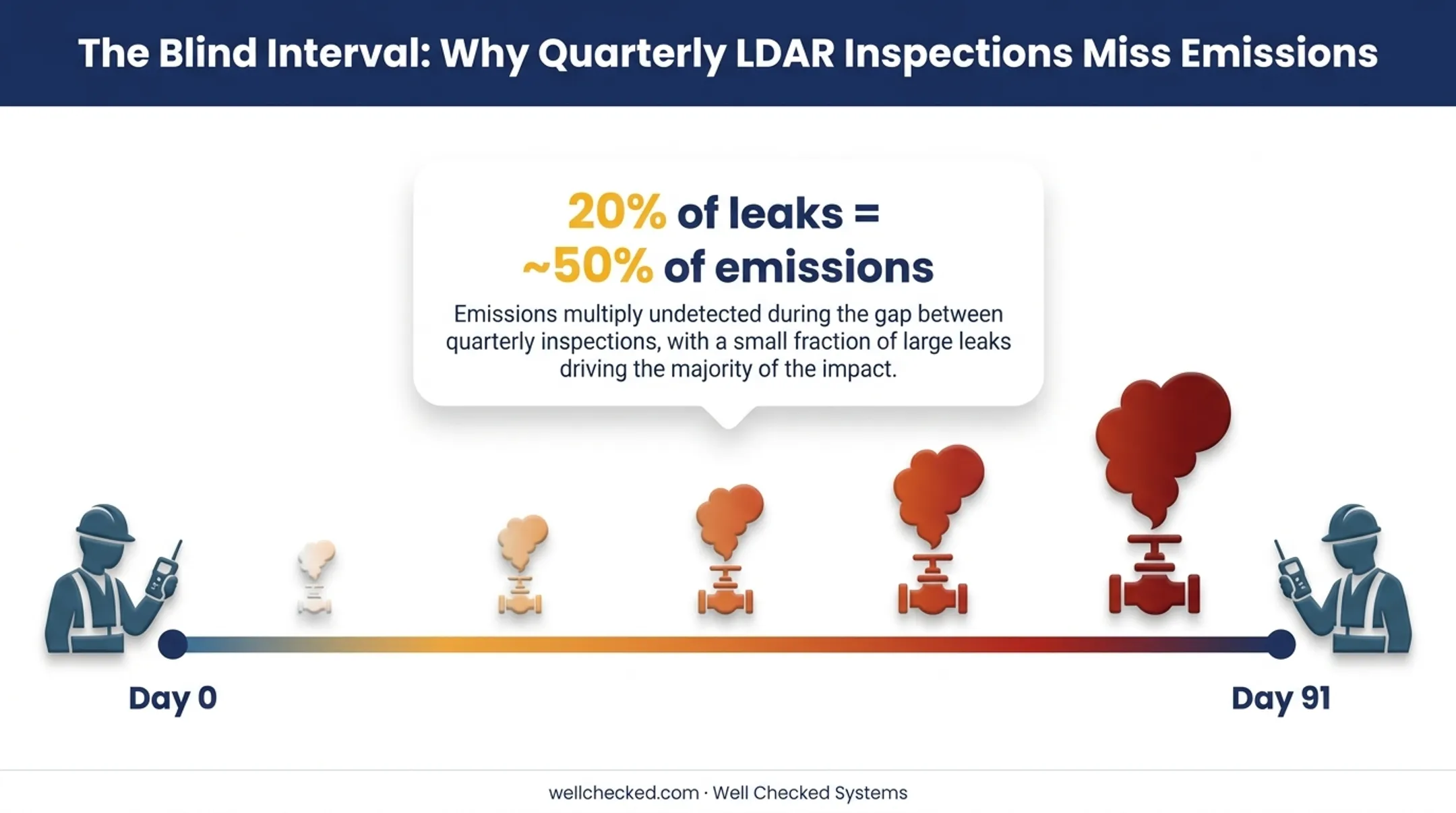

The "blind interval" is the central problem. A 2022 study of California's methane program analyzed eight quarterly surveys across 309–380 facilities over two years. Reported leaks dropped from 11,359 to 7,208 even as surveyed components grew 16%.
Researchers still found that 20% of leaks accounted for roughly 50% of estimated leaking-component emissions. A handful of missed high-emitters between surveys can outweigh dozens of small ones caught on schedule (2022 California methane program study).
Beyond detection gaps, operators face:
- Safety exposure from repeated technician travel to remote, hazardous wellsites
- Diminishing returns: AWP/OGI programs still require annual Method 21 validation, eating into the cost savings they're supposed to deliver
- Data limitations — Method 21 measures concentration for leak classification, not mass leak rate, so results don't extrapolate cleanly to total emissions
How Continuous Monitoring Works as an Alternative to LDAR

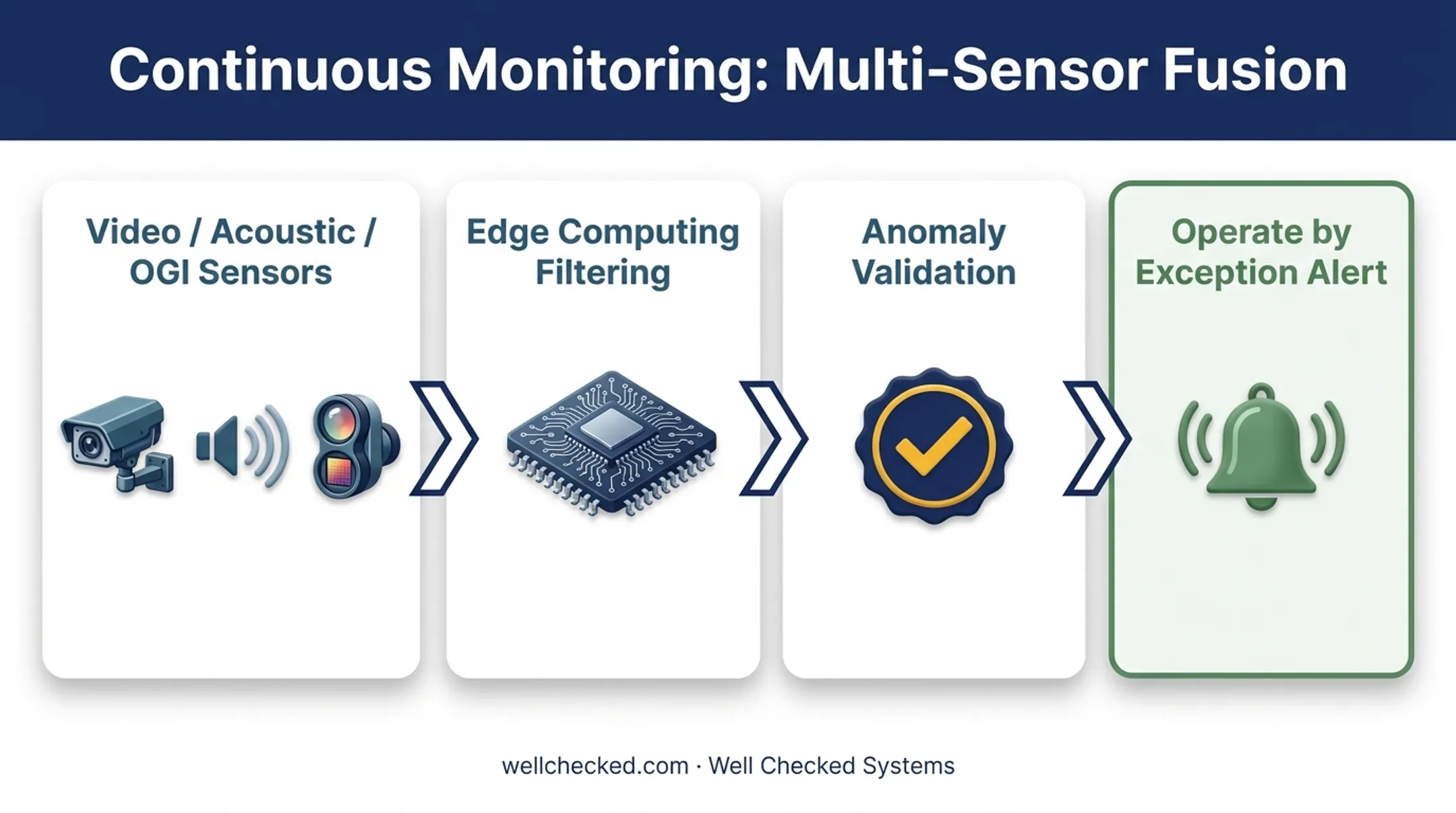

Continuous monitoring replaces periodic snapshots with a network of fixed sensors (optical gas imaging, acoustic, and visual) providing round-the-clock surveillance. Instead of "find and fix" on a quarterly schedule, the model shifts to "find and prevent," with systems continuously learning what normal site behavior looks like.
Single-sensor systems have real limits. One controlled-release study found a fixed-sensor deployment produced 2,382 reports in 104 days, with 79% false positives; another system on the same test detected just 0.3% of releases (Elementa, 2023). That's the false-alarm problem that multi-sensor fusion is designed to solve.
Well Checked's approach, for example, combines sight, sound, and gas detection rather than relying on OGI alone:
- Video with AI object detection for visual anomalies
- Acoustic AI that flags abnormal equipment sound signatures
- Long-Wave Infrared OGI for continuous methane and VOC detection
Edge computing does the filtering work onsite, separating routine process emissions from genuine fugitive events. That filtering makes "operate by exception" possible: teams respond only to validated alerts instead of chasing every sensor blip.
The result is a timestamped, continuous data trail suited for EPA, state, and ESG reporting, rather than a single point-in-time reading.
Continuous Monitoring vs. Traditional LDAR: A Side-by-Side Comparison
| Factor | Traditional LDAR | Continuous Monitoring |
|---|---|---|
| Detection frequency | Quarterly/annual snapshots | 24/7 real-time surveillance |
| Cost structure | Ongoing operator-route labor and inspection contracts | Upfront sensor deployment, lower ongoing labor |
| Data quality | Single point-in-time reading | Continuous trend data supporting predictive maintenance |
| Safety exposure | Repeated field technician travel | Remote monitoring reduces site visits |
| Regulatory defensibility | Compliance-only documentation | Continuous audit trail supporting OGMP 2.0 and SASB/TCFD disclosures |

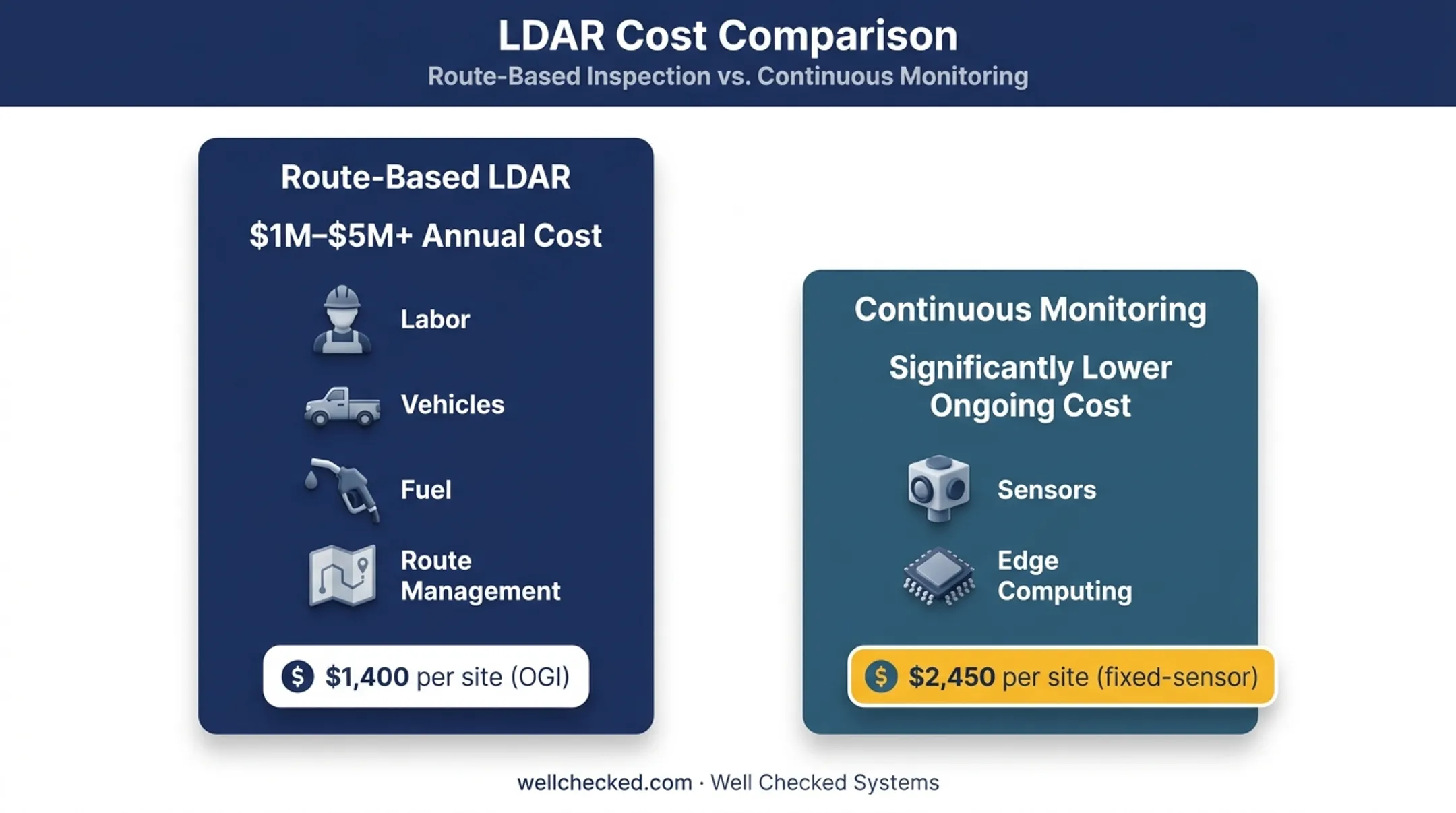

On cost, a modeled 2023 comparison found:
- Quarterly OGI: roughly $1,400 per site per year
- Basic fixed-sensor system: $2,450 per site per year
- Caveat: researchers flagged the sensor figure as likely understated because it excludes staffing and data-management overhead (Elementa, 2023)
Route-based site visits carry a separate, larger cost. For mid-to-large operators, route-based site-visit programs can run $1 million to $5 million or more annually once labor, vehicles, fuel, and route management are factored in. That portfolio-scale expense—not just the per-site hardware line item—is what continuous monitoring is built to offset.
Regulatory Considerations: Where Continuous Monitoring Fits Into Compliance
EPA's Subpart OOOOb builds a formal pathway for alternative monitoring. Under 40 CFR 60.5398b, operators must submit any alternative methane-detection method through EPA's alternative test method portal.
The Administrator evaluates the technology and its standard operating protocol, then issues an approval or disapproval decision within 270 days.
A few practical notes:
- Approvals can be site-specific or broadly applicable across facilities
- Self-certification isn't an option; operators cannot declare a technology compliant on their own
For publicly traded E&Ps, the same continuous-monitoring data doubles as ESG evidence. Structured properly, it supports:
- OGMP 2.0 Level 4/5 measurement-based reporting, which requires covering at least 70% of asset emissions at Level 4
- SASB Oil & Gas E&P metrics on Scope 1 emissions and methane percentage
- TCFD disclosures on climate-related risk and emissions performance
Making the Transition: How Well Checked Systems Delivers Continuous Monitoring
Well Checked's Zensory.ai™ platform is built in three tiers, letting operators start small and add capability as reporting demands grow:
- Zentinal Ops™ — visual and acoustic intelligence, with high-resolution 360° camera coverage and acoustic AI that flags abnormal equipment sounds
- Zentinal Core™ — multi-sensor detection that filters false alarms and validates true fugitive anomalies before anyone gets paged
- Zentinal IQ™ — quantifies validated events (volume, duration, rate) for regulatory-defensible reporting aligned with EPA, OGMP 2.0, SASB, and TCFD formats
Each new site goes through a roughly two-day AI Site Learning cycle, during which the system builds a baseline of normal operations from video, OGI, and acoustic data. Once that baseline exists, Core can tell the difference between a compressor doing its job and a compressor about to fail.
Well Checked runs a continuous monitoring deployment in the Appalachian Basin at production scale, not pilot volume.

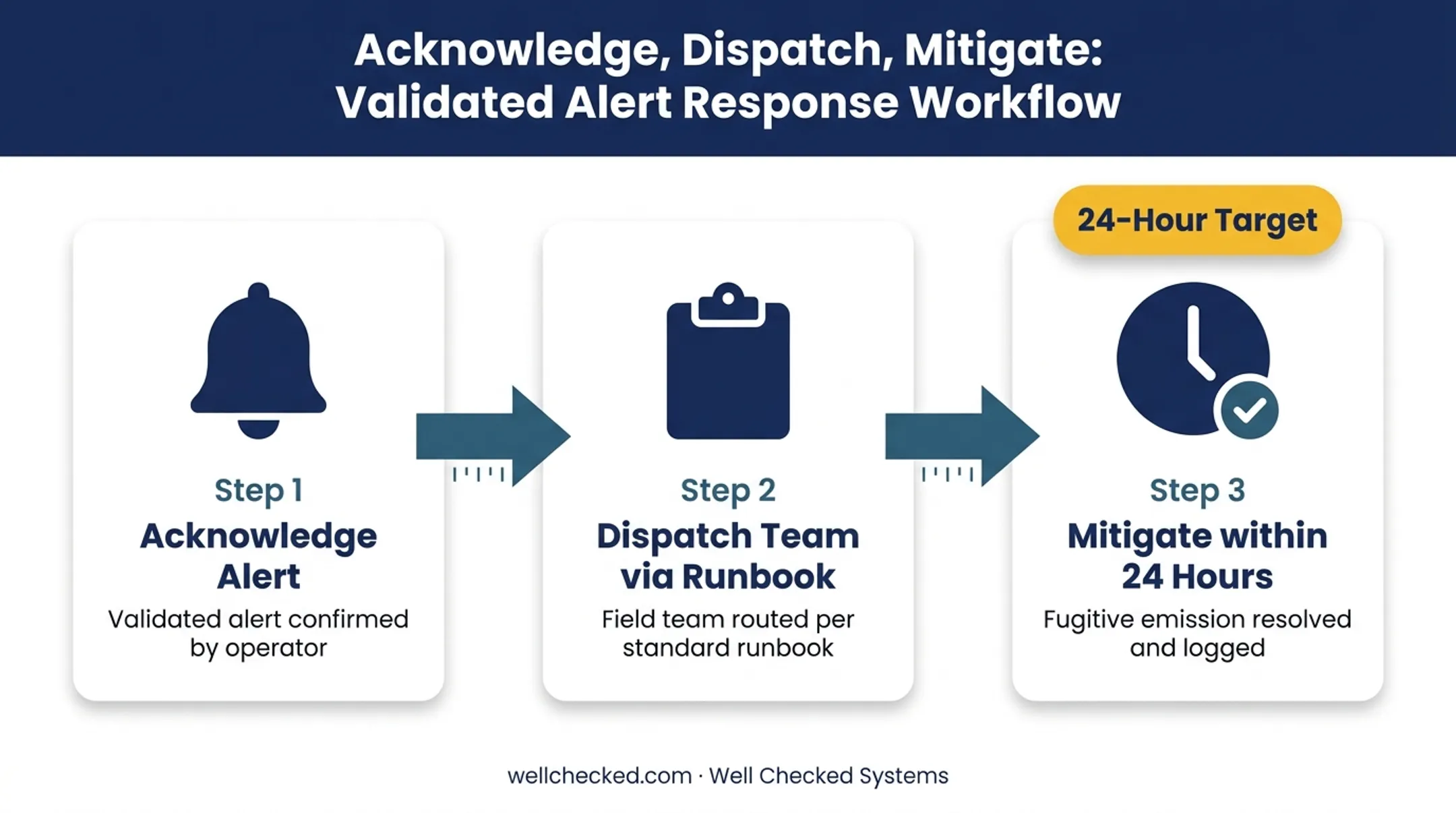

When Core validates an event, the acknowledge-dispatch-mitigate workflow starts:
- Team acknowledges the alert
- Dispatch follows a defined runbook
- Mitigation targets 24 hours, limiting EPA fine exposure on validated events
Because processing happens on onsite edge computing, monitoring doesn't stop when connectivity does. Data queues locally and syncs once a connection is available, closing the remote-wellsite reliability gap that route-based LDAR has always struggled with.
Frequently Asked Questions
What is the purpose of the LDAR method?
LDAR identifies, quantifies, and repairs fugitive emissions from equipment leaks. It protects worker safety, satisfies environmental regulations, and prevents the loss of saleable product.
Is continuous monitoring approved by the EPA as an LDAR alternative?
EPA's methane rule allows alternative-monitoring compliance submissions through a formal approval process. Operators should confirm approval status with regulators before relying on it for compliance.
How much does continuous monitoring cost compared to traditional LDAR?
Costs vary by deployment scale and vendor, but continuous monitoring can offset the $1 million–$5 million+ annual expense mid-to-large operators spend on route-based site visits.
Can continuous monitoring replace Method 21 inspections entirely?
Not always. Some permits and regulatory subparts still require periodic Method 21 validation alongside continuous monitoring, depending on facility classification.
What technologies are used in continuous emissions monitoring?
Core technologies include optical gas imaging, acoustic sensors, and AI-enabled video analytics, often combined in multi-sensor systems to reduce false alarms.
How does continuous monitoring improve safety compared to manual LDAR inspections?
Remote sensing reduces how often technicians need to travel to hazardous or hard-to-access equipment, cutting field exposure to traffic, weather, and site hazards.
