Behind every one of those cases sits the same operational failure: an undetected leak that persisted long enough to become a regulatory and safety problem. Unplanned downtime, lost product, and worker exposure to explosive or asphyxiating conditions all trace back to the same root cause.
Here's the uncomfortable truth: methane is colorless and odorless in its raw form. You can't see it, smell it, or catch it with a routine walk-around. Without dedicated detection systems, a leak can run for months before anyone notices.
Key Takeaways
- EPA enforcement in FY2024 totaled almost $72M in civil penalties across just 19 cases
- Smaller dispersed sources drive roughly 70% of oil & gas methane emissions—not only "super-emitters"
- Continuous, multi-sensor monitoring catches leaks that periodic manual inspections miss
- Set alarms well below methane's 5% LEL so crews get warned before an explosive atmosphere forms
- Layered detection (sensors, OGI, acoustic) catches more leaks than any single method alone
Why Methane Detection Is Essential Safety Practice
Methane creates two distinct hazards, and most safety programs only plan for one.
- Flammability: NIOSH lists methane's lower explosive limit (LEL) at 5% by volume in air (NIOSH engineering controls).
- Asphyxiation: In enclosed or low-ventilation spaces, methane displaces oxygen. OSHA treats any atmosphere above 10% of the LEL, or oxygen below 19.5%, as immediately hazardous.
The risk gets underestimated because methane doesn't announce itself. There's no smell, no visible plume, and no obvious warning signs. A leak at a wellhead or compressor seal can run silently for weeks.
That silence is why detection has to run continuously. Emissions swing between normal operational venting and fugitive leak events, and telling those apart matters for both safety and compliance.

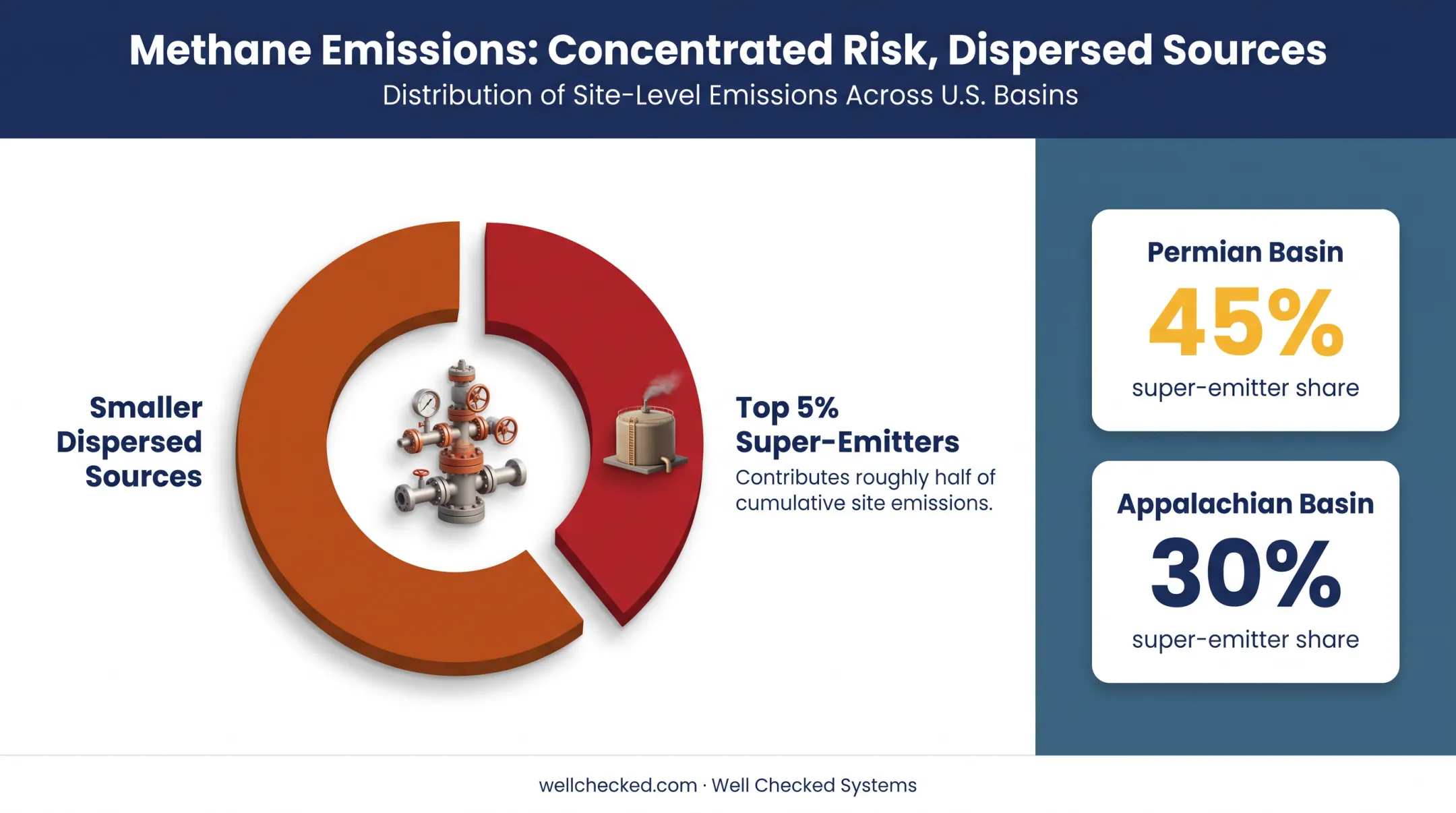

Research on low-production sites found the top 5% of emitters contribute about half of cumulative site emissions.
Both findings point to the same conclusion: you can't monitor just your biggest tanks and call it coverage. You need site-wide, always-on visibility.
Detection Methods and Technologies Compared
Not all detection methods do the same job. Some pinpoint a single leaking valve; others scan an entire region.
Point-source vs. area detection:
- Handheld sniffers and OGI cameras — precise, used for localization and repair confirmation
- Fixed sensors — continuous coverage at a specific location, but only detect what the wind carries to them
- Drones and aircraft — mid-range coverage for periodic site or basin surveys
- Satellites — regional-scale screening, useful for prioritization
Ground-Based Sensors and OGI Cameras
Fixed and mobile ground sensors give the fastest local alarm response, but placement matters. A sensor only catches what the wind pushes toward it.
Optical Gas Imaging and Long-Wave Infrared cameras solve a different problem: they visualize invisible methane plumes directly, day or night. That makes them valuable for both alarm generation and repair verification.
Acoustic Detection as a Complementary Layer
Acoustic sensors listen for the turbulent sound signature of pressurized gas escaping a valve, seal, or compressor, often catching mechanical problems before they become full leaks. On their own, acoustic signals only indicate relative leak size, not exact rate.

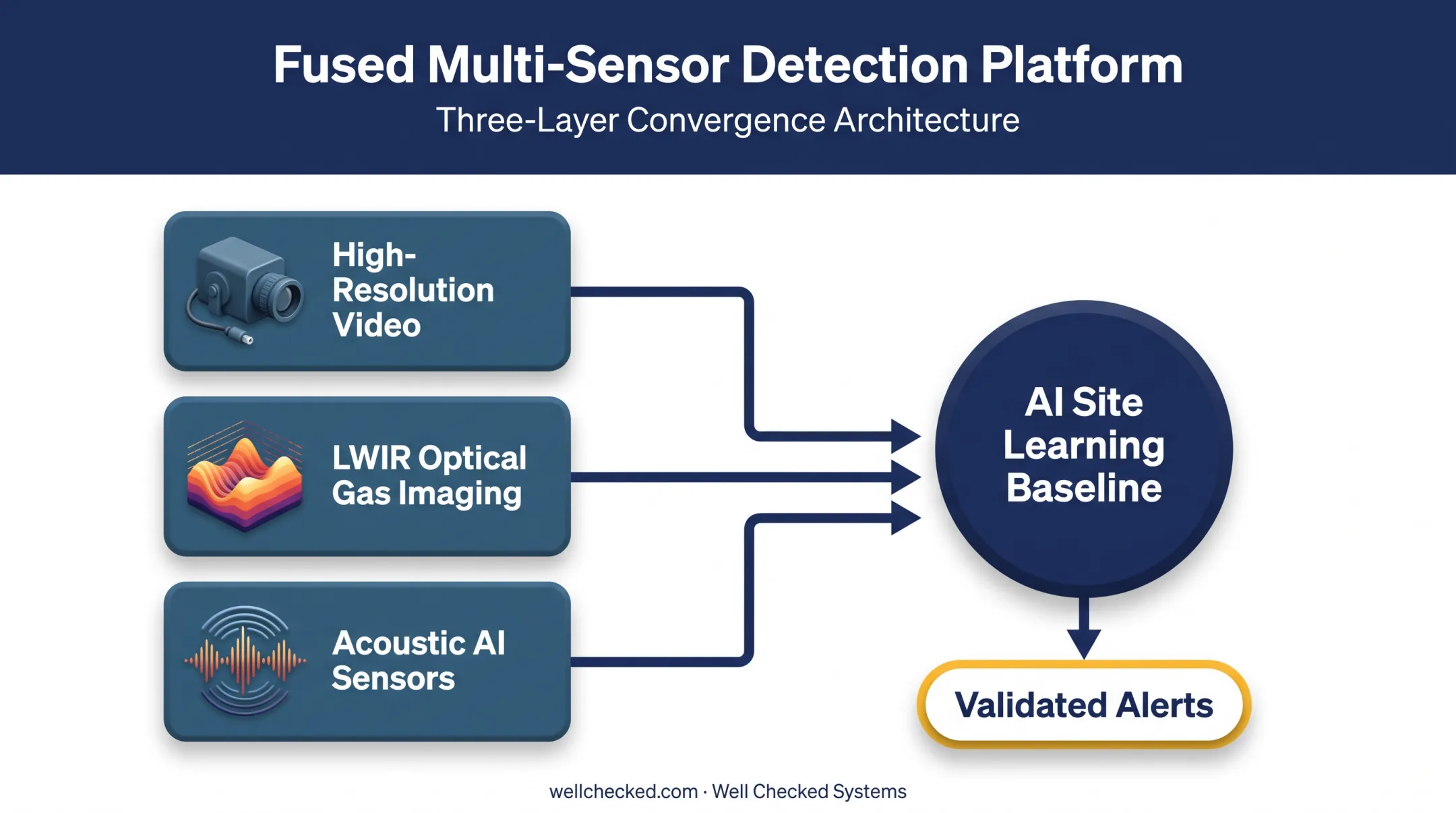

Combining sight, sound, and gas sensors reduces false alarms and catches what single-method systems miss. That is the logic behind Well Checked's Zensory.ai™ platform, which fuses high-resolution video, LWIR optical gas imaging, and acoustic AI into one monitoring stack.
The system runs a roughly two-day AI Site Learning cycle per location. It builds a baseline of what "normal" looks like at that site so it can flag genuine anomalies instead of flooding operators with false alarms.
That kind of continuous, site-level stack is what safety monitoring requires on the ground. Satellite and aerial methods still help with regional screening and deciding where to look next, but cloud cover, sensor resolution (some point-source imagers report pixel sizes from 25 to 50 meters), and limited revisit frequency mean they can't substitute for on-site coverage.
General Safety Precautions Around Methane
Detection technology doesn't replace basic field discipline. Workers still need:
- Flame-resistant clothing (FRC) during operations with flash-fire potential, per OSHA enforcement guidance
- Personal gas monitors worn at all times in hazardous zones
- Intrinsically safe equipment rated for the site's classified area
- Confined-space protocols — testing oxygen, combustibles, then toxics, in that order, before entry
Never rely on smell alone. Pure methane is odorless, and even sites using odorants for other applications often have fugitive emissions with no detectable scent at all. Calibrated instruments are the only reliable check before entry or hot work.
Safety During Installation and Operation of Detection Systems
Getting sensor placement wrong creates blind spots, and those gaps are where leaks go undetected the longest. Coverage needs to account for wellheads, tanks, and compressor stations without gaps caused by terrain, obstructions, or prevailing wind patterns.
Before mounting fixed sensors near live equipment:
- Classify the area per OSHA's hazardous-location requirements (Class I, Division 1/2 or Zone 0/1/2)
- Deenergize and lock out exposed live parts unless a documented exception applies
- Verify equipment can't restart and test for absence of voltage before work begins
- Confirm sensor equipment carries the correct gas group and temperature markings for the site
Once systems are live, operational discipline matters just as much as installation. Alarm thresholds need site-specific tuning: too sensitive, and teams stop trusting alerts; too loose, and real leaks slip through. Well Checked's Zentinal Core™ uses adaptive, site-specific tuning built on an AI Site Learning baseline, with validated alerts routed through dashboard, email, SMS, or SCADA API.
A hard rule worth adopting: operations should pause, or at minimum escalate, if sensor coverage is compromised, calibration has lapsed, or a validated alert hasn't been investigated within your defined response window.

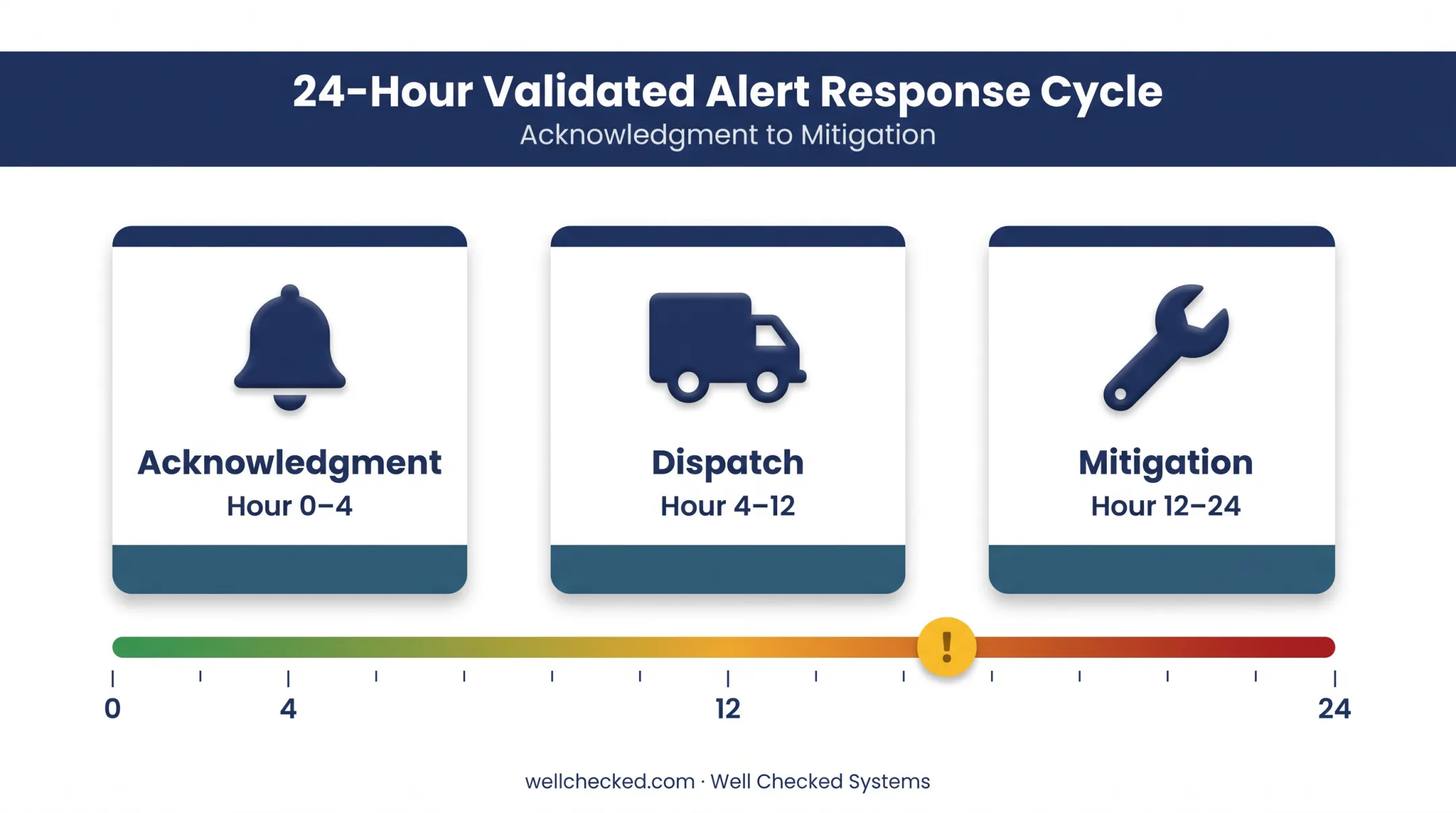

Well Checked's documented model targets acknowledgment, dispatch, and mitigation of validated events within 24 hours. That window is designed to minimize EPA fine exposure on confirmed methane events.
Environmental Considerations and Common Mistakes to Avoid
Wellsites aren't controlled environments. Temperature swings, wind, dust, and remote terrain all degrade sensor reliability if equipment isn't hardened for the job.
NIST has demonstrated year-round methane measurement systems that hold up in harsh climates, but that's a field-performance benchmark, not a universal spec. Every deployment needs its own environmental validation for the actual basin and mounting point.
Common mistakes that keep showing up:
- Relying solely on quarterly LDAR inspections and missing everything that happens between visits
- Ignoring intermittent or nighttime leaks because inspections happen during business hours
- Treating alarms as noise and disabling them after one false positive
- Skipping recalibration schedules until sensor drift compromises accuracy
These mistakes create real operational consequences. Skip recalibration, and you risk missing real events. Disable alarms, and a leak runs undetected for months. Rely only on quarterly checks, and you're exposed to EPA non-compliance the other 89 days of the quarter.
Conclusion
Methane safety depends on continuous, multi-sensor visibility that stays online around the clock. A single inspection schedule, no matter how carefully timed, still leaves gaps between visits.
Detection technology should be treated as core infrastructure, not an add-on bolted on after an incident. Platforms like Well Checked's Zentinal architecture are built around that principle. Operators can move from routine route-based site visits to operate-by-exception workflows, with the continuous records and quantification needed to stay regulatory-defensible when EPA or state agencies come asking.
Frequently Asked Questions
How is methane gas detected?
Detection combines handheld sensors, fixed sensors, infrared/OGI cameras, acoustic sensors, drones, and satellites. The right mix depends on whether you need point-source precision or regional-scale screening.
What are the dangers of undetected methane leaks?
Undetected leaks create explosion and fire risk, asphyxiation danger in enclosed spaces, and long-term environmental and regulatory exposure, including EPA fines and civil penalties.
Can you smell methane before it becomes dangerous?
No. Pure methane is odorless. Odorants are added in some applications, but wellsite fugitive emissions often have no detectable smell, so instrumentation is required.
What is the difference between point-source and area emission detection?
Point-source detection pinpoints a specific piece of equipment or facility. Area detection measures broader regional concentrations, useful for screening but not for isolating the exact leak location.
How often should methane detection equipment be inspected or calibrated?
Calibration frequency depends on manufacturer specs and applicable regulatory requirements. Consistency matters more than any single interval: build a schedule and stick to it.
What regulations govern methane detection in oil & gas operations?
EPA 40 CFR Part 60 Subpart OOOOb sets US federal requirements for new, modified, and reconstructed sources. OGMP 2.0 Level 4/5 provides a voluntary measurement-based reporting framework increasingly expected by investors and regulators.
