Under EPA's 40 CFR Part 60 Subpart OOOOb, which took effect May 7, 2024, operators face tighter fugitive-emissions measurement and reporting rules than ever before. Quarterly walk-arounds no longer cut it for many sites.
This guide walks through what you need to measure methane, the four leading methods, how to read the results correctly, and the mistakes that get operators in trouble.
Key Takeaways
- Operators rely on four method families: handheld analyzers, OGI cameras, satellite/aerial surveys, and continuous ground monitoring
- Match the method to accuracy needs, site access, budget, and regulatory reporting duties
- Continuous multi-sensor monitoring is replacing periodic LDAR snapshots for defensible compliance data
- Confusing concentration, flow rate, and quantified volume drives false positives and false negatives alike
What You Need to Measure Methane Emissions
Before picking an instrument, decide what question you're actually answering. Are you locating a leak? Measuring its concentration? Or calculating volume for a regulatory report? Each requires different tools.
Measurement Tools
Common measurement tools include:
- Handheld gas analyzers/detectors — point-source concentration readings to confirm a suspected leak
- Optical Gas Imaging (OGI) cameras — visualize invisible plumes so you can locate leaks quickly
- Laser-based methane detectors — remote concentration sensing without direct contact
- Drones and aircraft — aerial surveys to find leaks across larger sites
- Satellites — regional or facility-level detection for wide-area screening
- Fixed continuous sensors — 24/7 ground-based monitoring for ongoing detection and volume trends
Preconditions and Setup
Getting accurate readings requires more than pointing a device at equipment:
- Meteorological data — wind speed and direction directly affect flow-rate calculations. Skip this and your volume estimates are guesswork.
- Background concentration — you need a baseline before you can call anything anomalous.
- Site access and safety isolation — wellsites, tanks, and compressor stations often need lockout/tagout or confined-space protocols before sampling.
- Lighting conditions — OGI cameras vary in day/night capability; know your equipment's limits before scheduling a survey.
Match the tool to the question first, then lock in these setup conditions—otherwise even the right instrument produces weak data.
Methods to Measure Methane Emissions
Methods range from one-time engineering estimates to continuous real-time monitoring. Each option trades off accuracy, cost, and labor. Use the comparison below, then the method details, to match the approach to your sites.

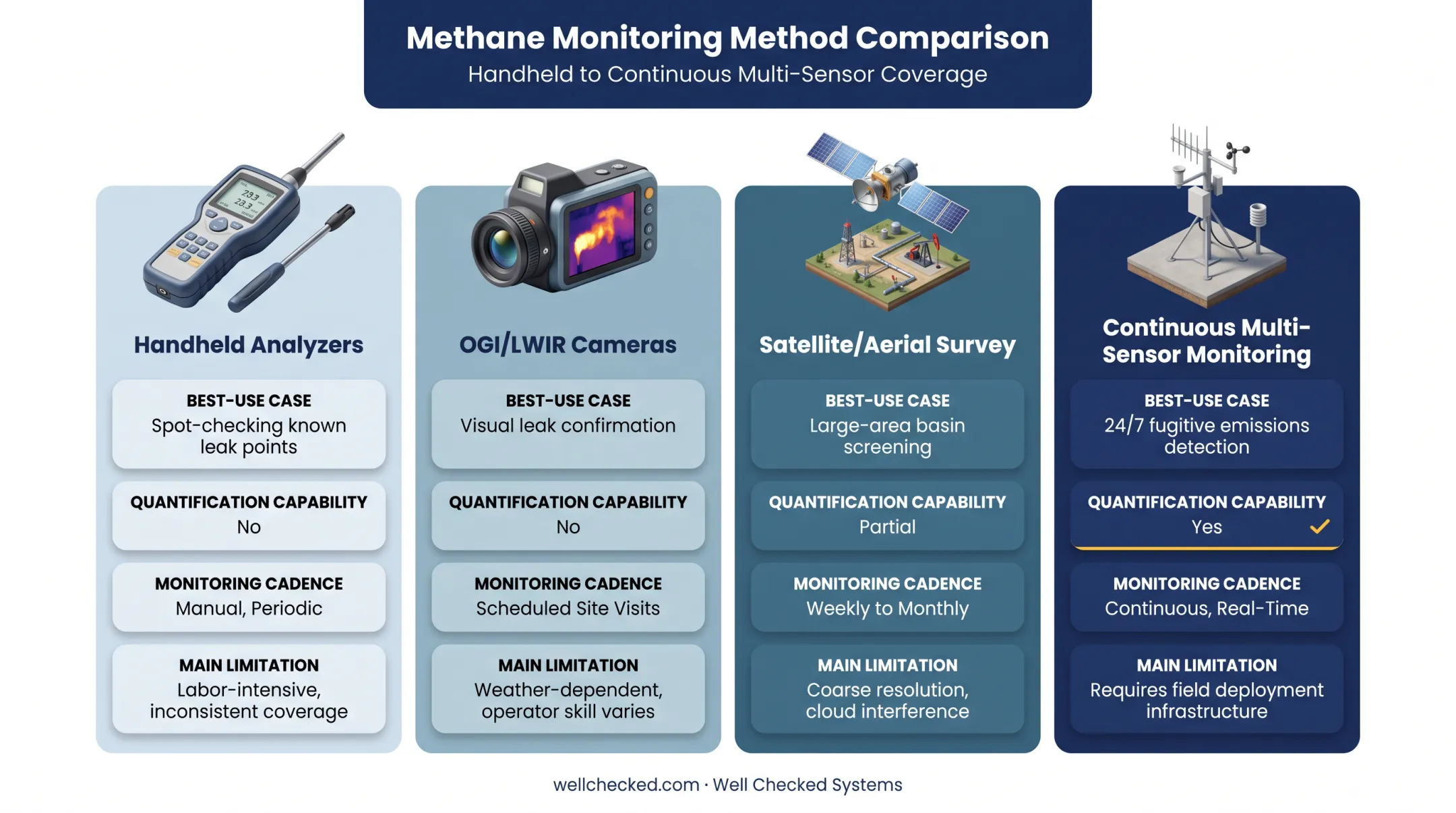

| Method | Best for | Quantification? | Cadence | Main limitation |
|---|---|---|---|---|
| Handheld analyzers | Point-source leak checks | Concentration only | Periodic walk-through | Labor-heavy snapshot |
| OGI / LWIR cameras | Locating visible plumes | No (detection only) | Periodic survey | Needs trained operator |
| Satellite / aerial | Regional / large sources | Facility-level | Scheduled overpass | Misses small or short leaks |
| Continuous multi-sensor | 24/7 site coverage | Yes, on validated events | Continuous | Upfront platform investment |
Method 1: Handheld Gas Analyzers and Detectors
Portable analyzers measure point-source methane concentration at a specific location. You need a handheld detector with GPS logging.
Steps:
- Calibrate the device against a known reference gas.
- Walk the site perimeter and equipment points, sampling for concentration spikes.
- Log GPS-tagged readings for trend analysis over time.
Low cost and mobile, but labor-intensive and only a snapshot in time. Federal guidance under Method 21 sets a 500 ppmv leak threshold using a flame-ionization detector for this approach.
Method 2: Optical Gas Imaging (OGI) and Long-Wave Infrared Cameras
When walk-through concentration checks are not enough to see where gas is moving, infrared cameras visualize methane plumes invisible to the naked eye. Typical gear is an LWIR camera on a tripod or drone mount.
Steps:
- Scan equipment components (valves, connectors, tanks) systematically.
- Identify visible plumes and document the leak location.
- Cross-reference against baseline "normal" emissions footage.
Effective day and night, and LWIR runs cheaper than mid-wave IR systems. It still needs a trained operator, and imaging alone does not quantify volume.
Method 3: Satellite and Aerial Surveys
For basin-scale or multi-pad screening, remote sensing from satellites, aircraft, or drones detects large or facility-level emissions. You need access to satellite data providers or aerial survey contractors.
Steps:
- Schedule the overpass or flight for favorable weather and wind conditions.
- Analyze plume imagery against background concentration.
- Correlate detected plumes back to facility-level source attribution.
Wide-area coverage helps with regional benchmarking. Resolution is limited: public satellite products typically detect sources only above 500 kg/h to 3,000 kg/h, so small or intermittent leaks slip through entirely.
Method 4: Continuous Multi-Sensor Ground Monitoring
Periodic surveys still miss short-duration events. Fixed multi-sensor systems (visual, acoustic, and gas) provide 24/7 detection and quantification on a continuous monitoring platform that combines cameras, acoustic sensors, and OGI/gas sensing.

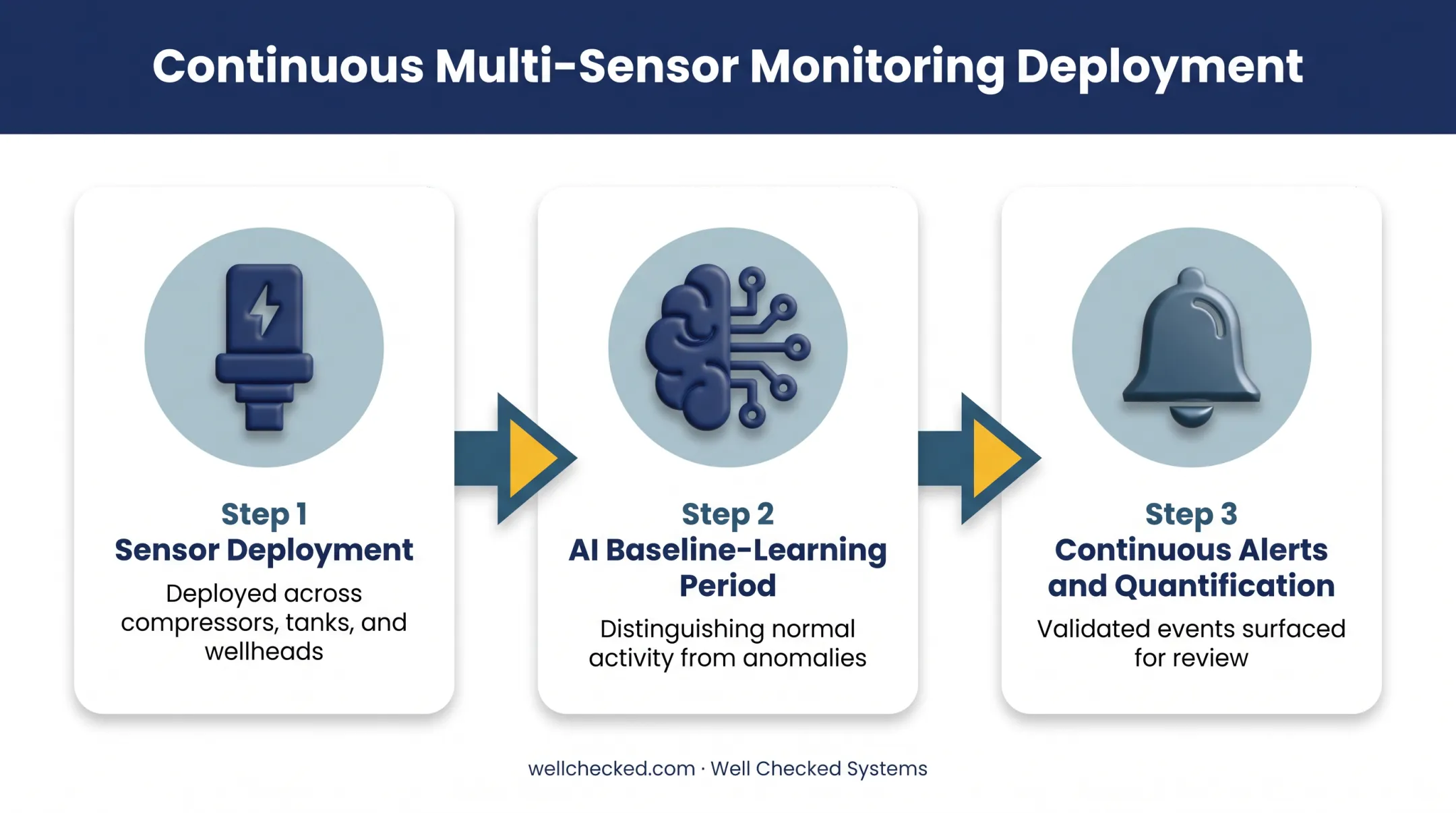

Steps:
- Deploy sensors across critical equipment: compressors, tanks, and wellheads.
- Run an AI baseline-learning period to separate normal process activity from fugitive anomalies.
- Generate continuous alerts and quantification data for validated events.
This approach delivers the highest accuracy and continuous, defensible data compared with periodic snapshots. It needs upfront technology investment. That investment matters because short leaks evade quarterly routes: one EPA analysis found quarterly sampling carries error rates above 30% for leaks lasting a month or less.
Well Checked's Zensory.ai™ pairs video, LWIR gas imaging, and acoustic sensing to detect and quantify fugitive emissions on site. The stack filters false alarms so field teams respond to validated anomalies instead of every transient spike.
How to Interpret the Results
Reading a concentration number as leak severity, without accounting for wind and flow rate, leads directly to under- or over-reporting.
- Normal/acceptable: Background-level readings consistent with ambient methane (roughly 1,800 ppb per EPA's atmospheric indicator). No action beyond routine logging.
- Minor anomalies: Small transient spikes tied to normal operations, such as pneumatic controller venting. Document, but watch for pattern changes.
- Out-of-spec/fugitive event: Sustained plume or concentration well above baseline. Trigger acknowledge-dispatch-mitigate; quantify duration and volume for repair priority and regulatory submission.

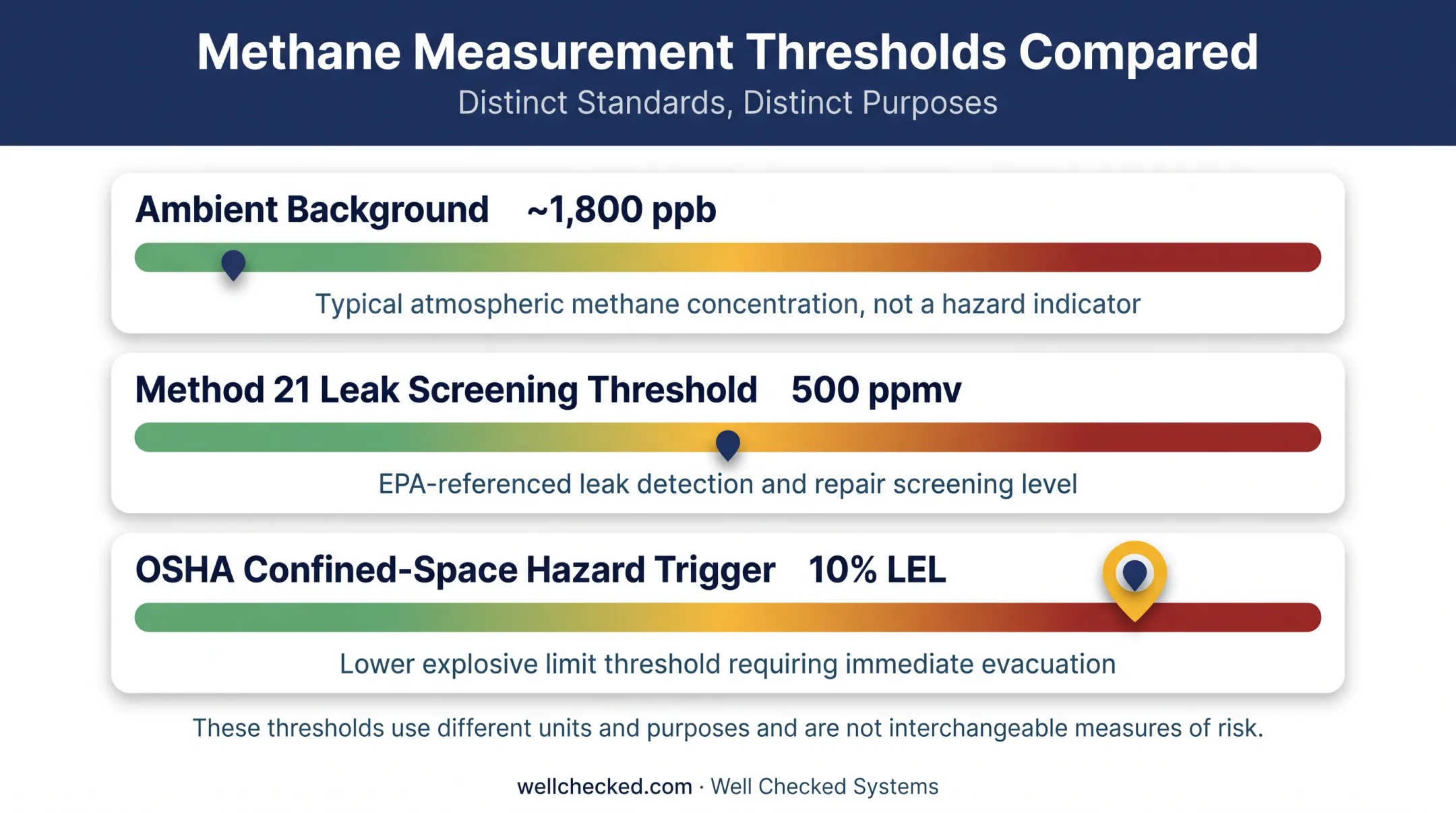

Keep these three measurements separate when you make a call:
- Ambient background: roughly 1,800 ppb (EPA atmospheric indicator)
- Method 21 leak screening threshold: 500 ppmv
- OSHA confined-space hazard trigger: 10% of the lower explosive limit
They are not interchangeable. Substituting one for another skews severity and response.
Common Errors in Measuring Methane Emissions
Three errors show up repeatedly in field surveys and compliance reviews. Each one can undermine data quality and regulatory defensibility.
- Ignoring wind speed and direction — skews flow-rate calculations so a small leak looks large, or a large leak looks small
- Relying solely on periodic snapshot surveys — misses intermittent and nighttime emission events that quarterly LDAR routes never catch
- Misclassifying normal process venting as fugitive emissions — without site-specific baseline data, a pneumatic controller doing its job looks identical to a real leak
These aren't rare mistakes. Field literature on OGI and Method 21 surveys treats both methods as subjective, skill-dependent, and limited for precise leak-rate quantification.
Choosing a Continuous, Regulatory-Defensible Monitoring Solution
As EPA methane rules tighten and OGMP 2.0, SASB, and TCFD reporting demands escalate, operators need data that's both accurate and audit-ready. A snapshot from last quarter won't satisfy a regulator asking about an event from six weeks ago.

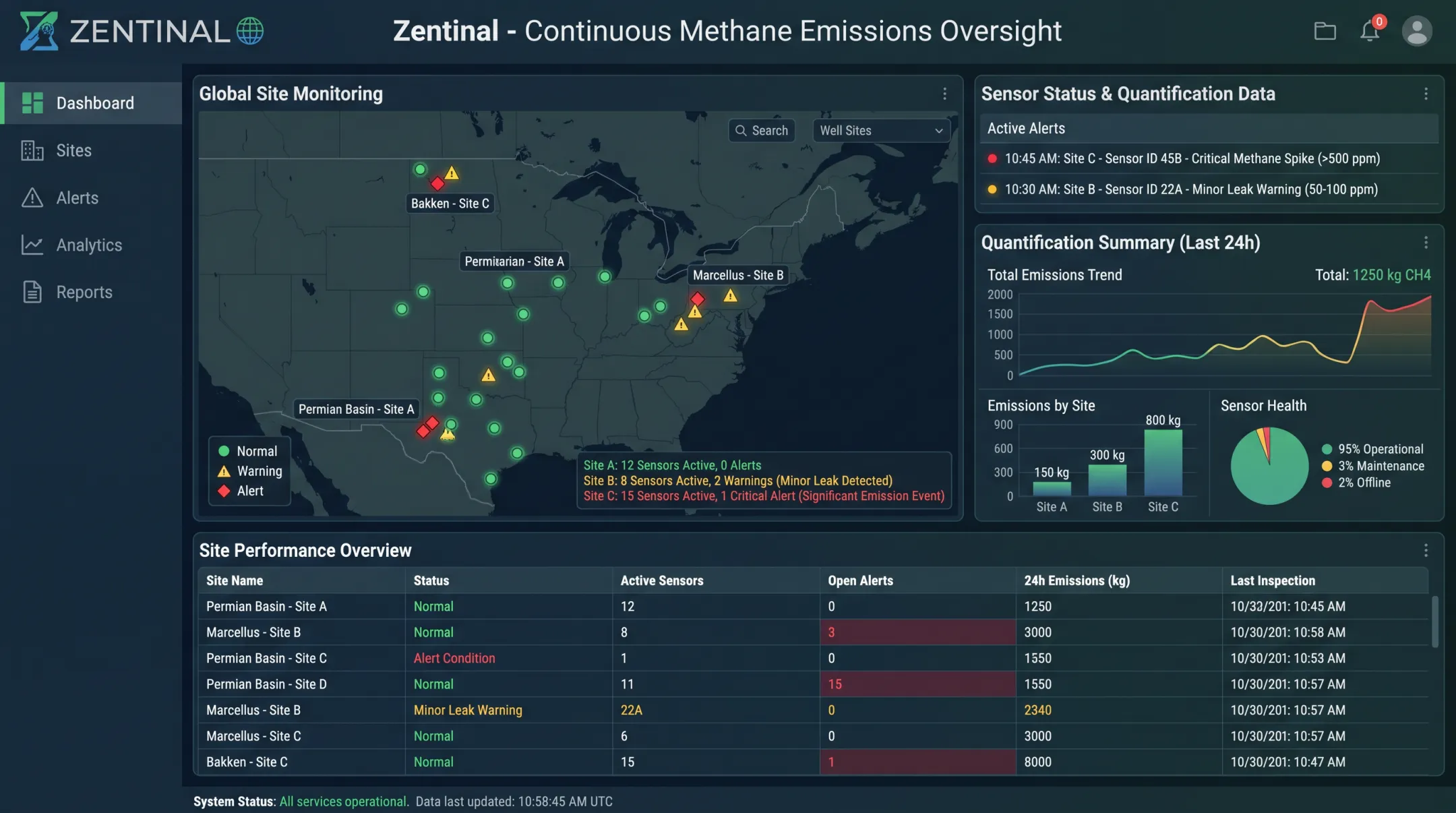

Well Checked's three-tier Zentinal platform is built around that gap:
| Tier | Function |
|---|---|
| Zentinal Ops™ | Visual and acoustic site intelligence |
| Zentinal Core™ | Multi-sensor detection with false-alarm filtering |
| Zentinal IQ™ | Regulatory-defensible quantification for reporting |
Operators can start with detection and scale into full compliance reporting as their needs grow, without ripping out and replacing infrastructure.
Traditional route-based site visits and quarterly LDAR programs cost mid-sized to large operators an estimated $1 million to $5 million or more annually.
Continuous monitoring, backed by 13+ years of operating experience, turns that recurring travel spend into a fixed technology cost. It also closes the detection gaps periodic visits leave open.
Conclusion
Accurate methane measurement means matching the right method (handheld, OGI, aerial, or continuous) to what the site actually needs. A single handheld reading tells you almost nothing about a leak's total volume; a satellite pass will not catch a compressor seal weeping methane at 3 a.m.
Continuous, multi-sensor monitoring provides the most defensible data for both mitigation decisions and regulatory reporting. When that measurement is accurate, teams find leaks sooner, cut response cost, and submit reporting they can defend. That is the outcome continuous monitoring is built to deliver.
Frequently Asked Questions
What is a safe level of methane?
Ambient background methane runs around 1,800 ppb. Hazardous concentrations use a different standard: OSHA treats 10% of the lower explosive limit as the confined-space danger threshold.
How often should methane emissions be measured at oil and gas sites?
The industry is shifting from quarterly LDAR inspections toward continuous monitoring. EPA methane rule requirements drive that shift, and quarterly checks miss short-duration leaks entirely.
What is the difference between methane detection and methane quantification?
Detection confirms a leak is present. Quantification calculates its duration and volume, which you need for repair prioritization and regulatory reporting. Detection alone doesn't satisfy either.
Can satellites accurately measure small methane leaks?
Not reliably. Public satellite products typically detect sources only above 500 kg/h to 3,000 kg/h, missing the smaller or intermittent leaks that ground-based continuous monitoring catches.
What regulations require methane emissions measurement in the US?
EPA's 40 CFR Part 60 Subpart OOOOb governs new, modified, and reconstructed sources. Several states, including Colorado and New Mexico, add their own requirements on top.
How does AI improve methane emissions monitoring accuracy?
AI baseline learning establishes what "normal" looks like at a specific site, then flags deviations as true anomalies rather than routine venting. This cuts false alarms and lets teams focus on real fugitive events.
